Dosing Pump Shorted

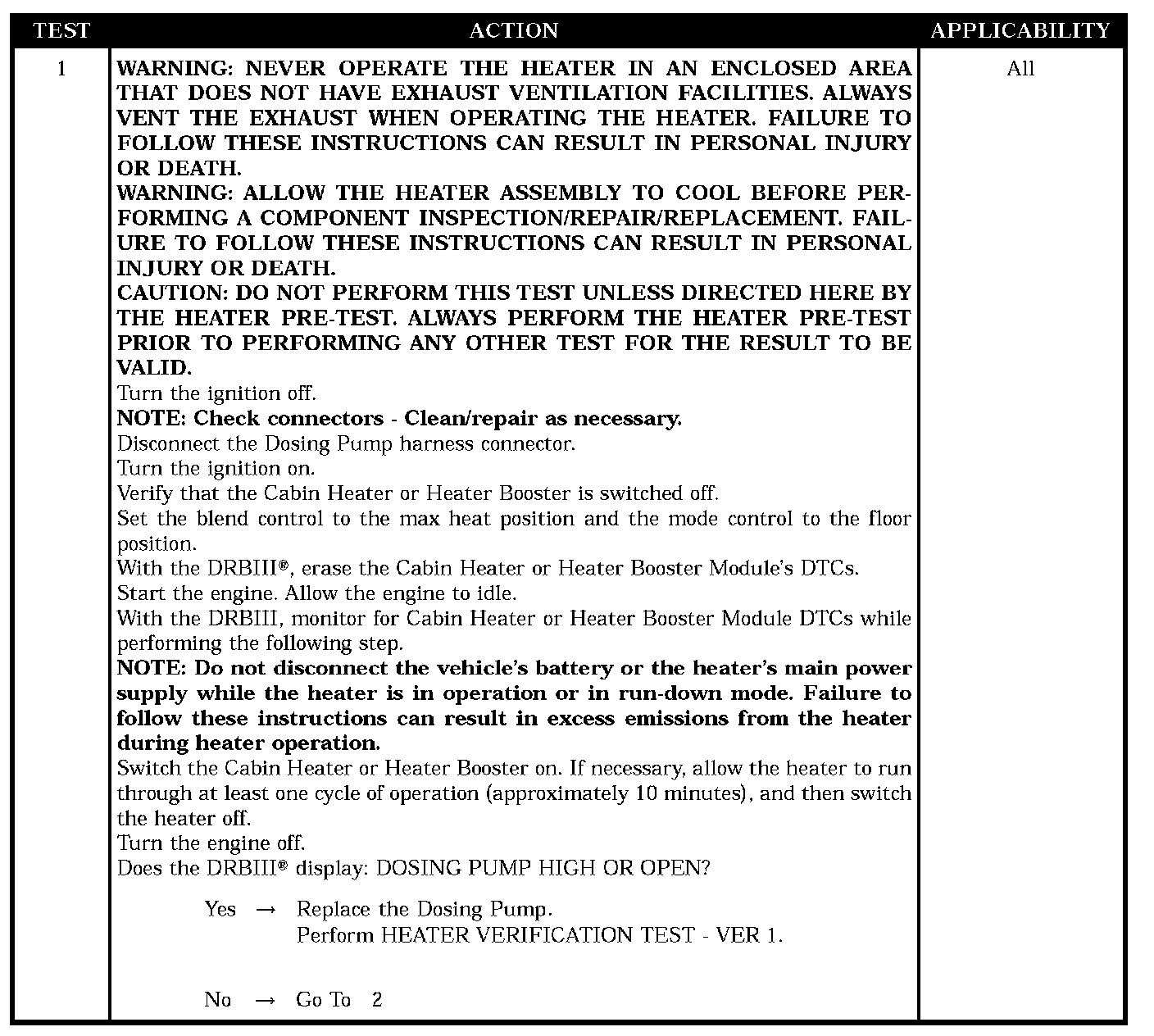

Test 1:

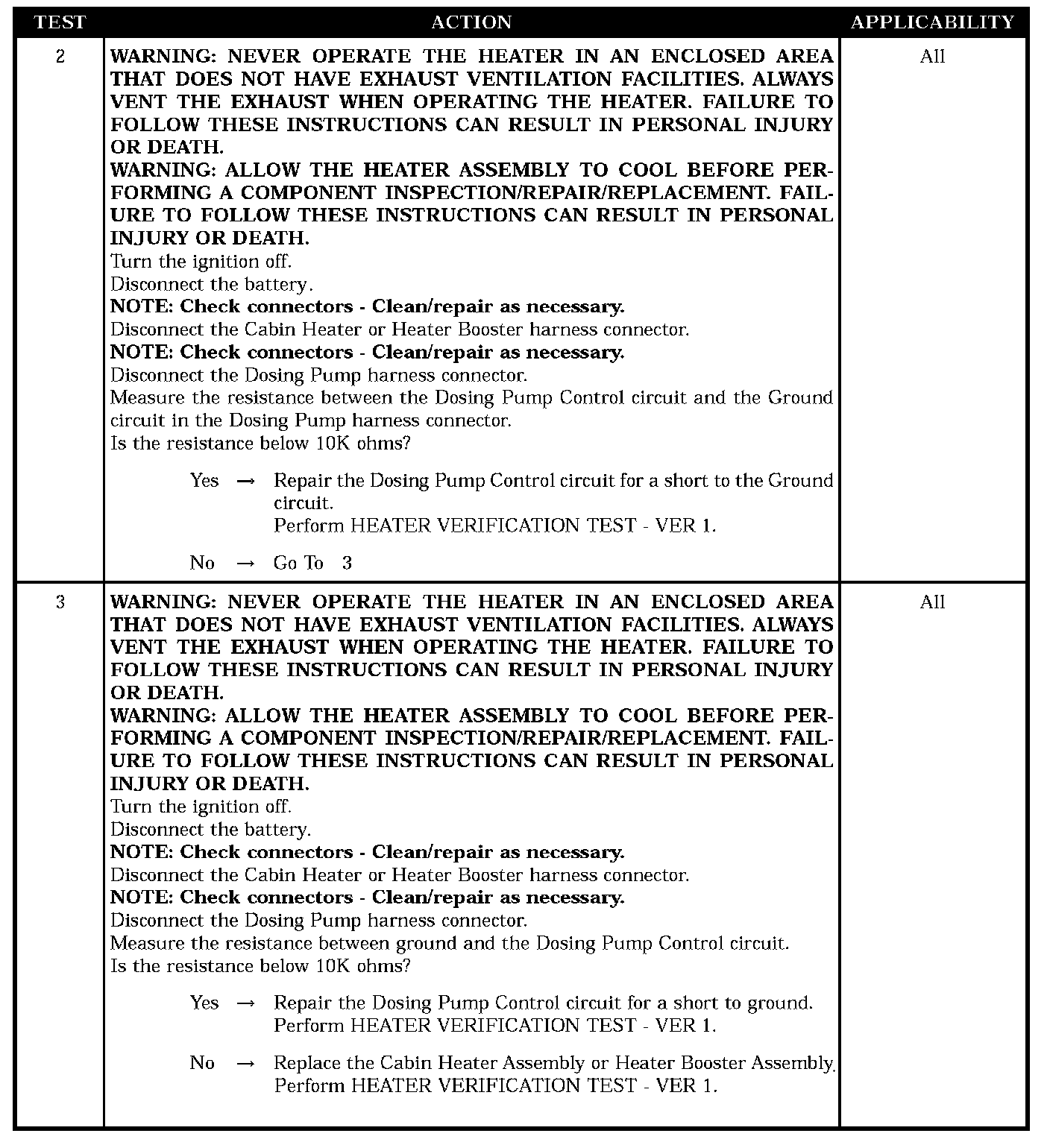

Test 2 - Test 3:

SYMPTOM
DOSING PUMP SHORTED

POSSIBLE CAUSES
- Dosing pump shorted to ground
- Dosing pump control circuit shorted to ground circuit
- Dosing pump control circuit shorted to ground
- Cabin heater or heater booster control unit
