Control Unit Faulty

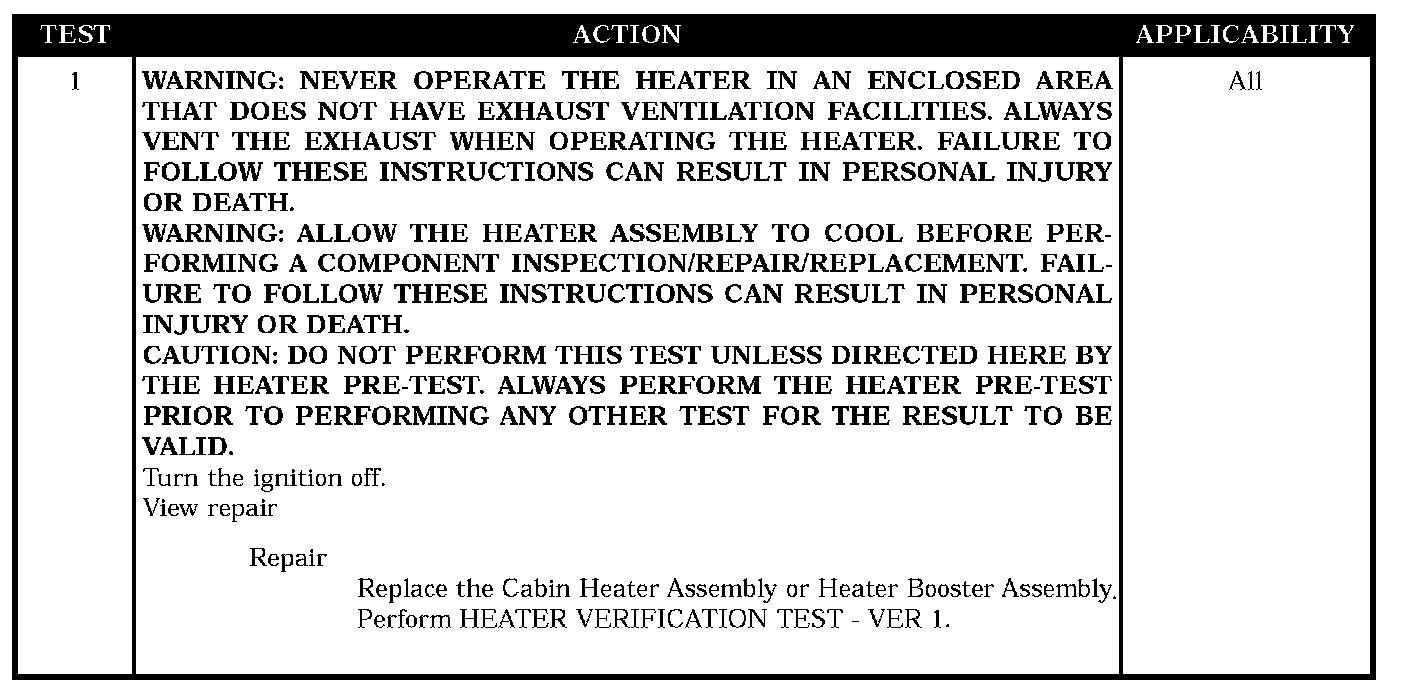

Test 1:

SYMPTOM
CONTROL UNIT FAULTY

WHEN MONITORED
During heater activation and operation.

SET CONDITION
This DTC will set if the heater's control unit detects an internal failure in its microprocessor/memory.

POSSIBLE CAUSES
- Cabin heater or heater booster control unit
