CIRC Pump Control Shorted

Test 1:

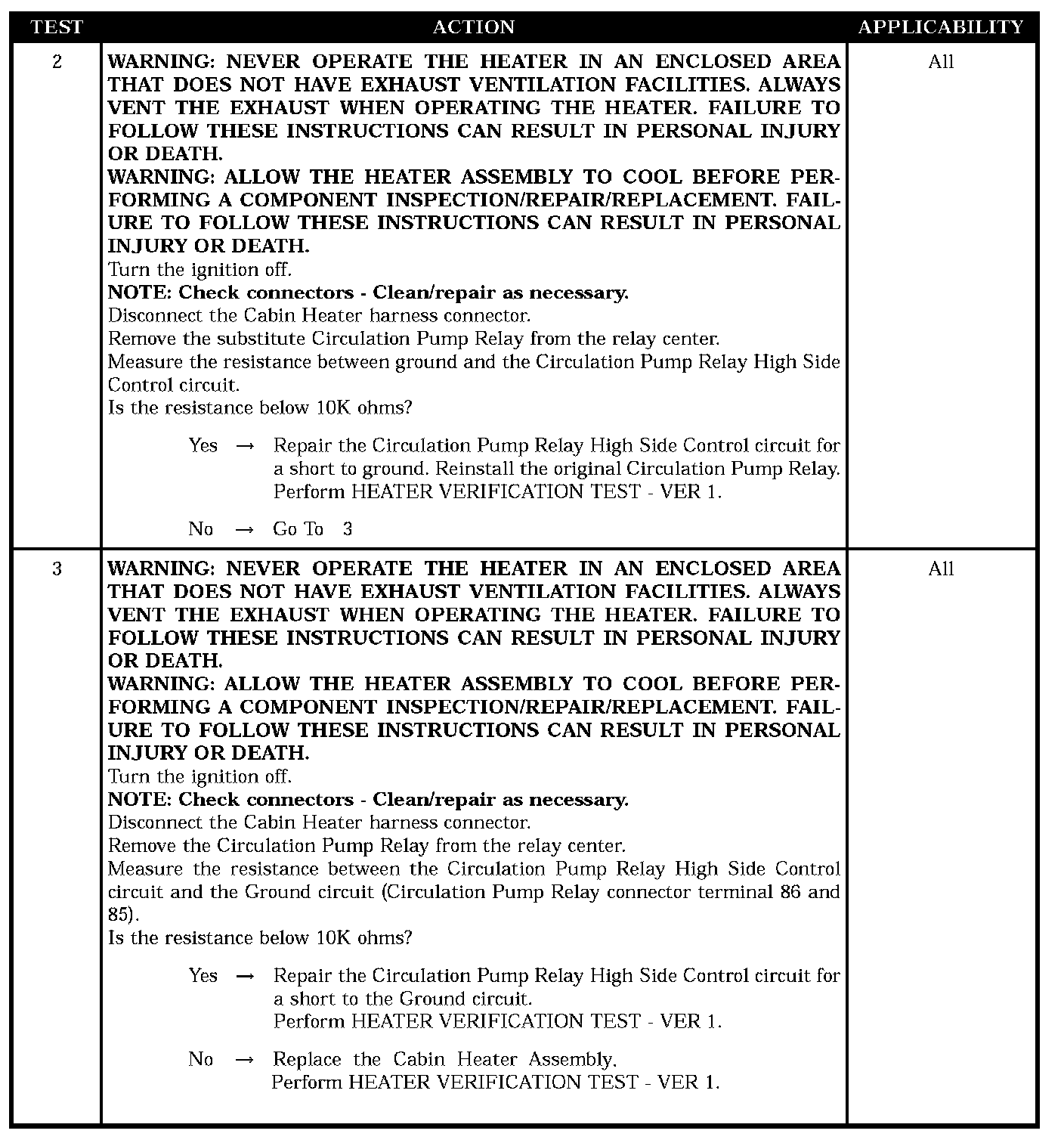

Test 2 - Test 3:

SYMPTOM
CIRC PUMP CONTROL SHORTED

POSSIBLE CAUSES
- Circulation pump relay
- Circulation pump relay high side control circuit shorted to ground
- Pump relay high side control CKT shorted to pump relay ground CKT
- Cabin heater control unit
