CIRC Pump Control Open

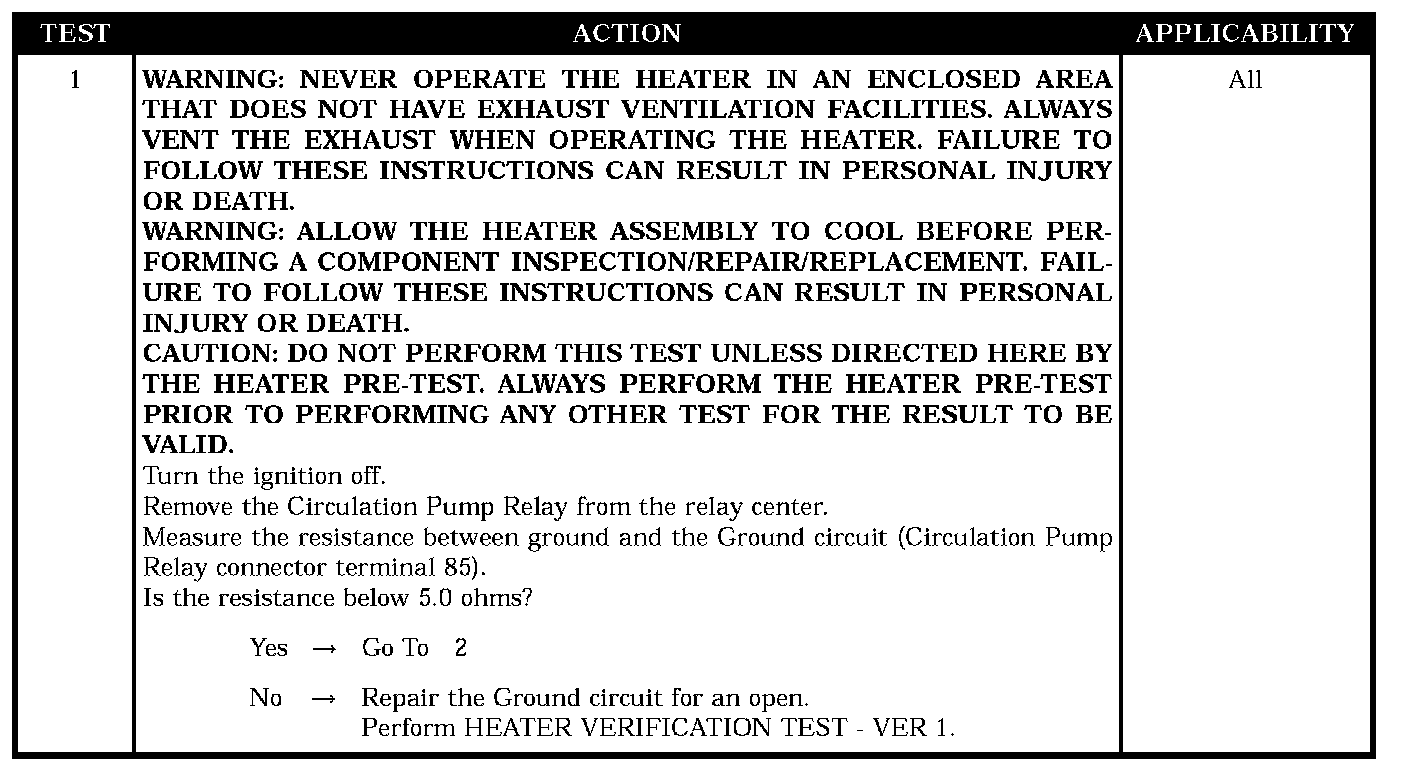

Test 1:

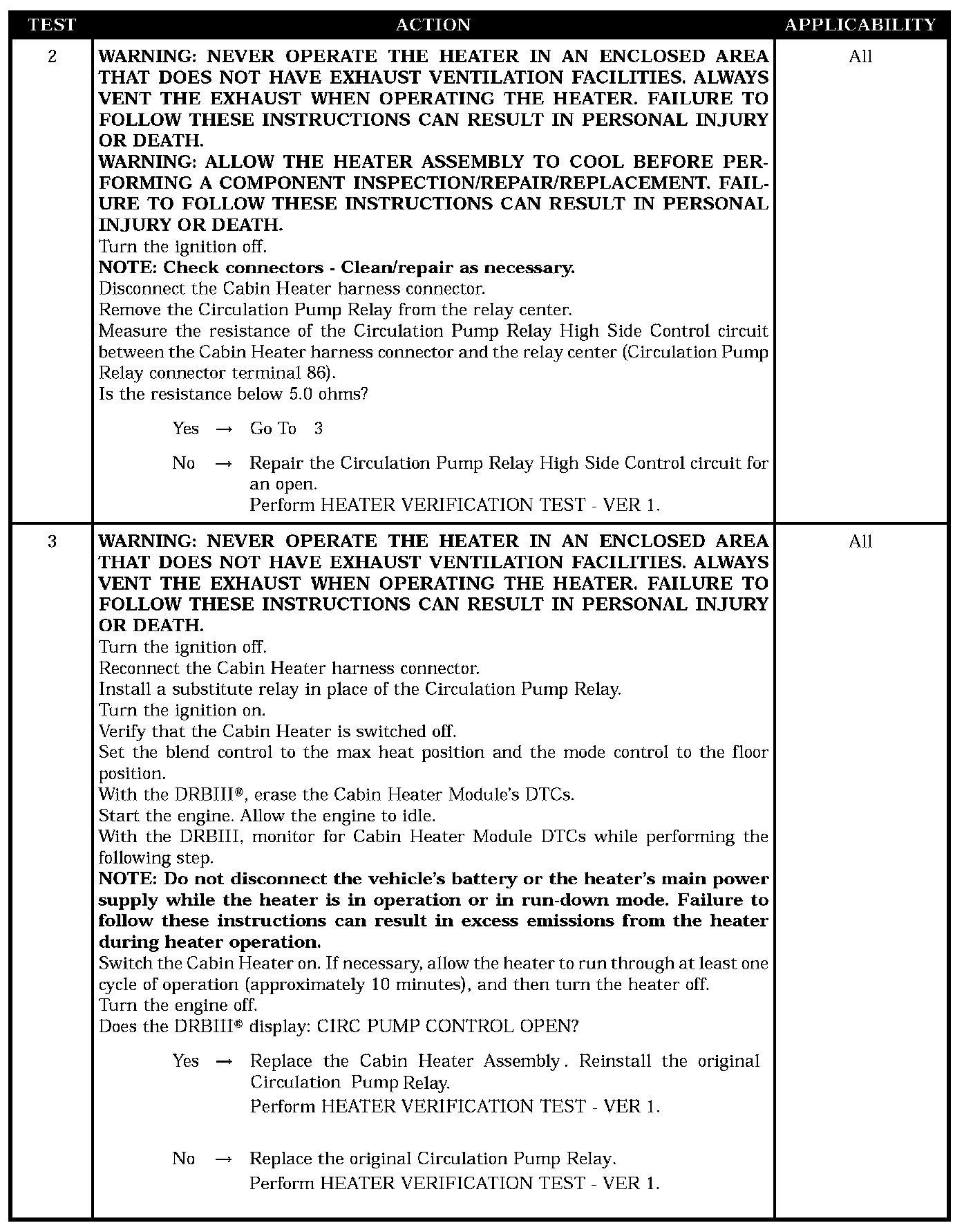

Test 2 - Test 3:

SYMPTOM
CIRC PUMP CONTROL OPEN

POSSIBLE CAUSES
- Ground circuit open
- Circulation pump relay high side control circuit open
- Circulation pump relay
- Cabin heater control unit
