Lateral Acceleration Sensor Circuit

Symptom List:

LATERAL ACCELERATION SENSOR CIRCUIT
LATERAL ACCELERATION SENSOR IMPLAUSIBLE

Test Note: All symptoms listed above are diagnosed using the same tests. The title for the tests will be LATERAL ACCELERATION SENSOR CIRCUIT.

POSSIBLE CAUSES
^ LATERAL ACCELERATION SENSOR CIRCUIT INTERMITTENT DTC
^ STEERING COMPONENT INSPECTION
^ LATERAL ACCELERATION SENSOR CIRCUIT SHORT TO VOLTAGE
^ LATERAL ACCELERATION SENSOR CIRCUIT SHORT TO GROUND
^ LATERAL ACCELERATION SENSOR CIRCUIT OPEN
^ LATERAL ACCELERATION SENSOR
^ ANTI-LOCK BRAKE CONTROLLER

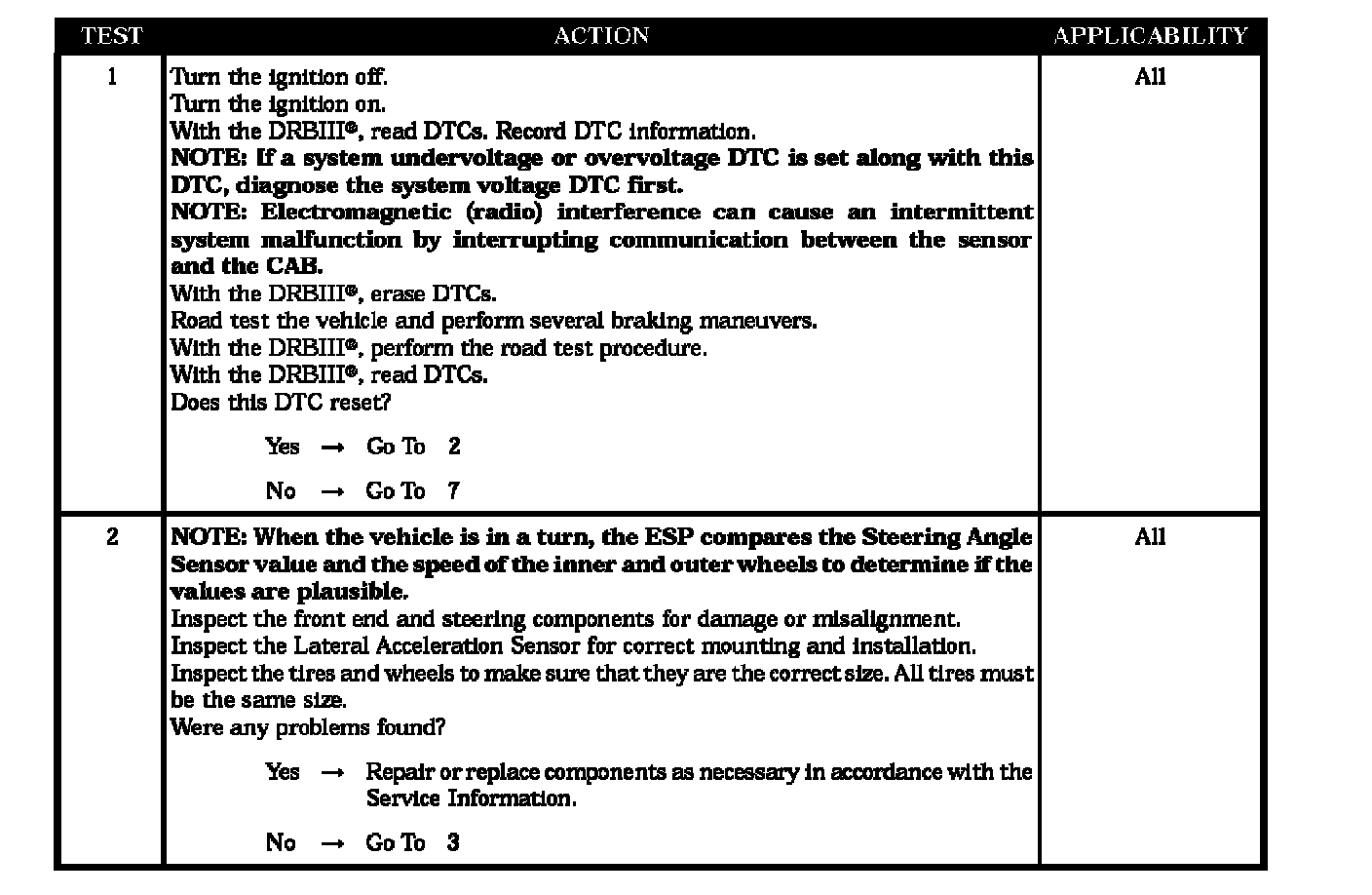

Test 1 - Test 2:

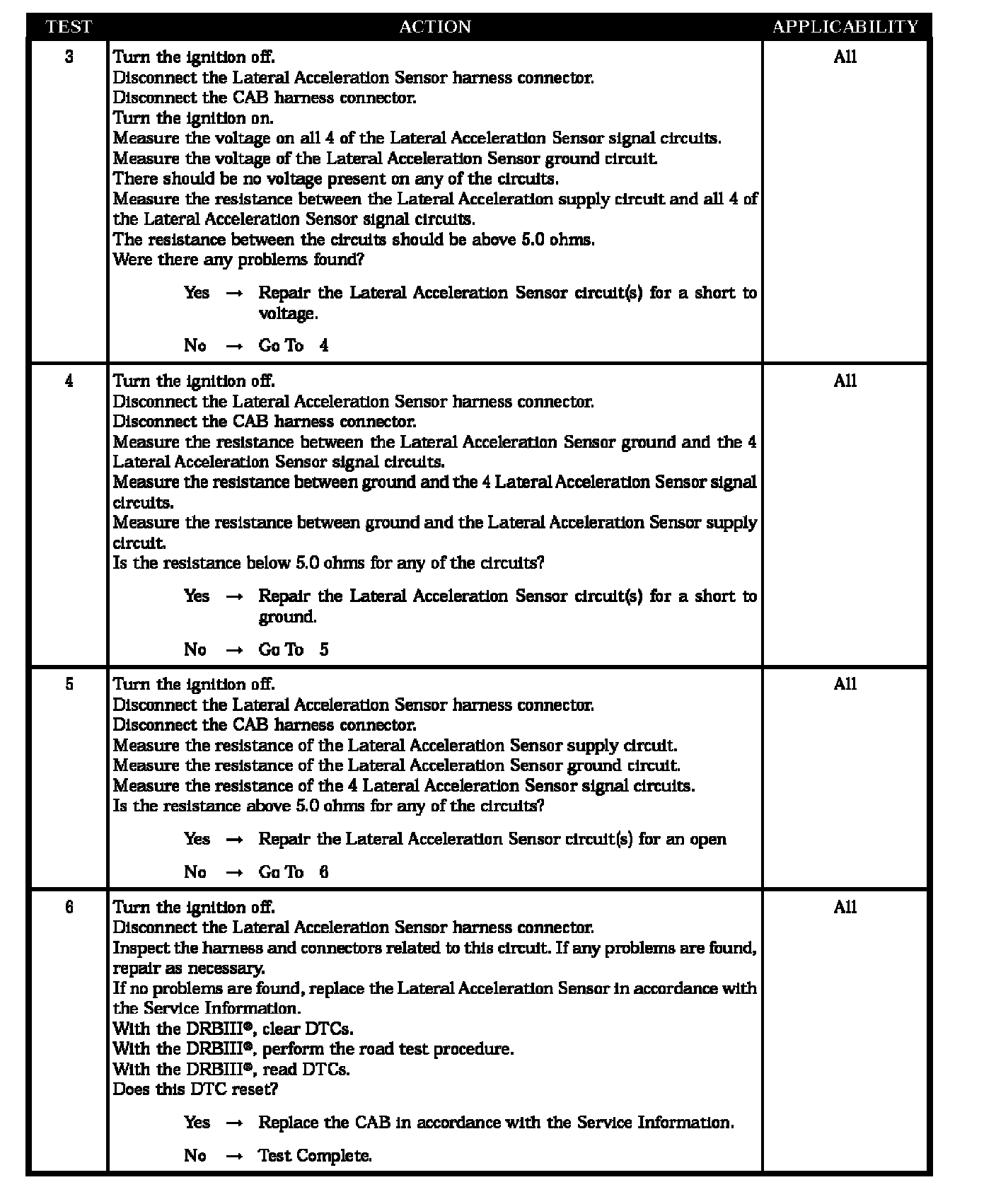

Test 3 - Test 6:

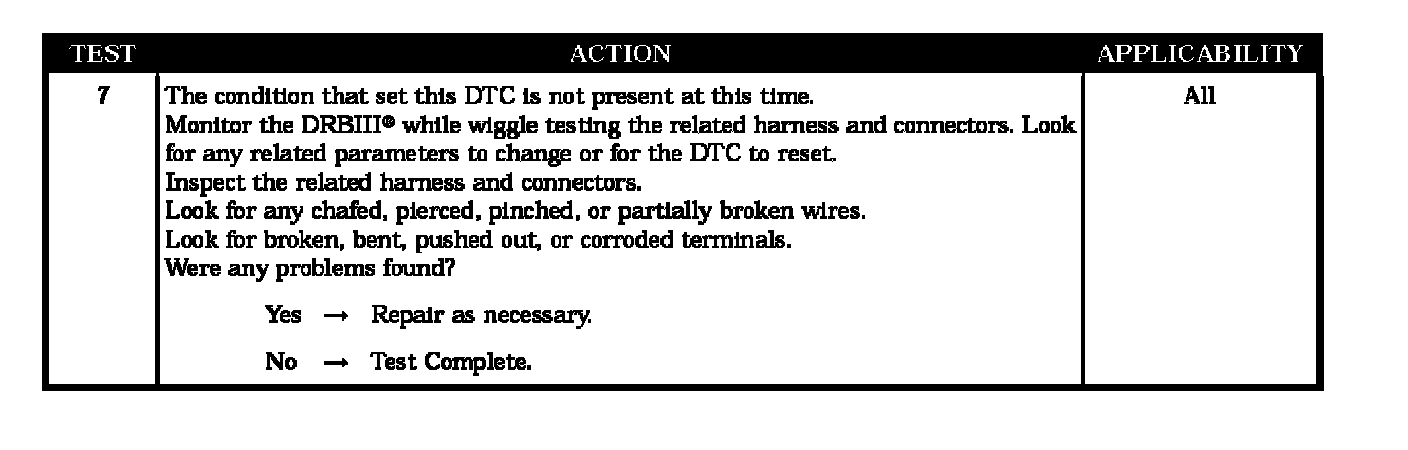

Test 7:
