Brake Switch Circuit
Symptom:BRAKE SWITCH CIRCUIT
When Monitored and Set Condition:
When Monitored: Ignition On - Continuously
Set Condition: When the brake lamp switch and brake switch outputs are both open or shorted.
POSSIBLE CAUSES
^ INTERMITTENT BRAKE SWITCH CIRCUIT DTC
^ BRAKE LAMP SWITCH STATUS
^ BRAKE SWITCH STATUS
^ FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN
^ OUTPUT CIRCUIT SHORT TO VOLTAGE
^ OUTPUT CIRCUIT SHORT TO GROUND
^ OUTPUT CIRCUIT OPEN
^ BRAKE SWITCH OUTPUT CIRCUIT SHORT TO BRAKE LAMP SWITCH OUTPUT CIRCUIT
^ BRAKE LAMP SWITCH
^ BRAKE SWITCH
^ ANTI-LOCK BRAKE CONTROLLER

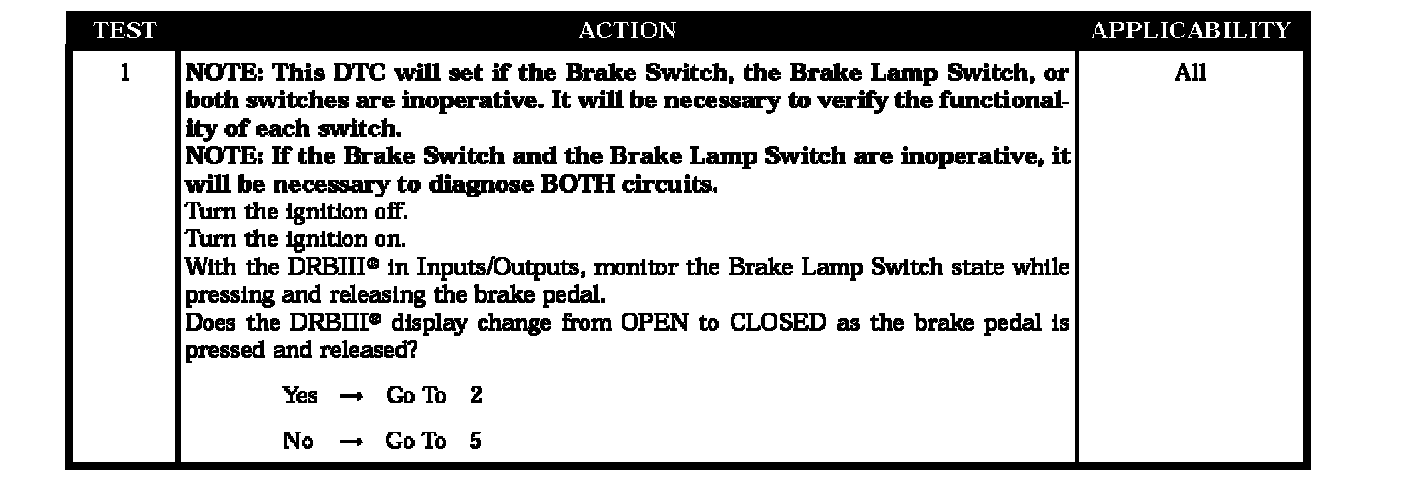

Test 1:
