Brake Fluid Level

Symptom:

BRAKE FLUID LEVEL

POSSIBLE CAUSES
^ INTERMITTENT DTC
^ BRAKE FLUID LEVEL SWITCH SIGNAL CIRCUIT SHORT TO GROUND
^ BRAKE FLUID LEVEL SWITCH
^ ANTI-LOCK BRAKE MODULE

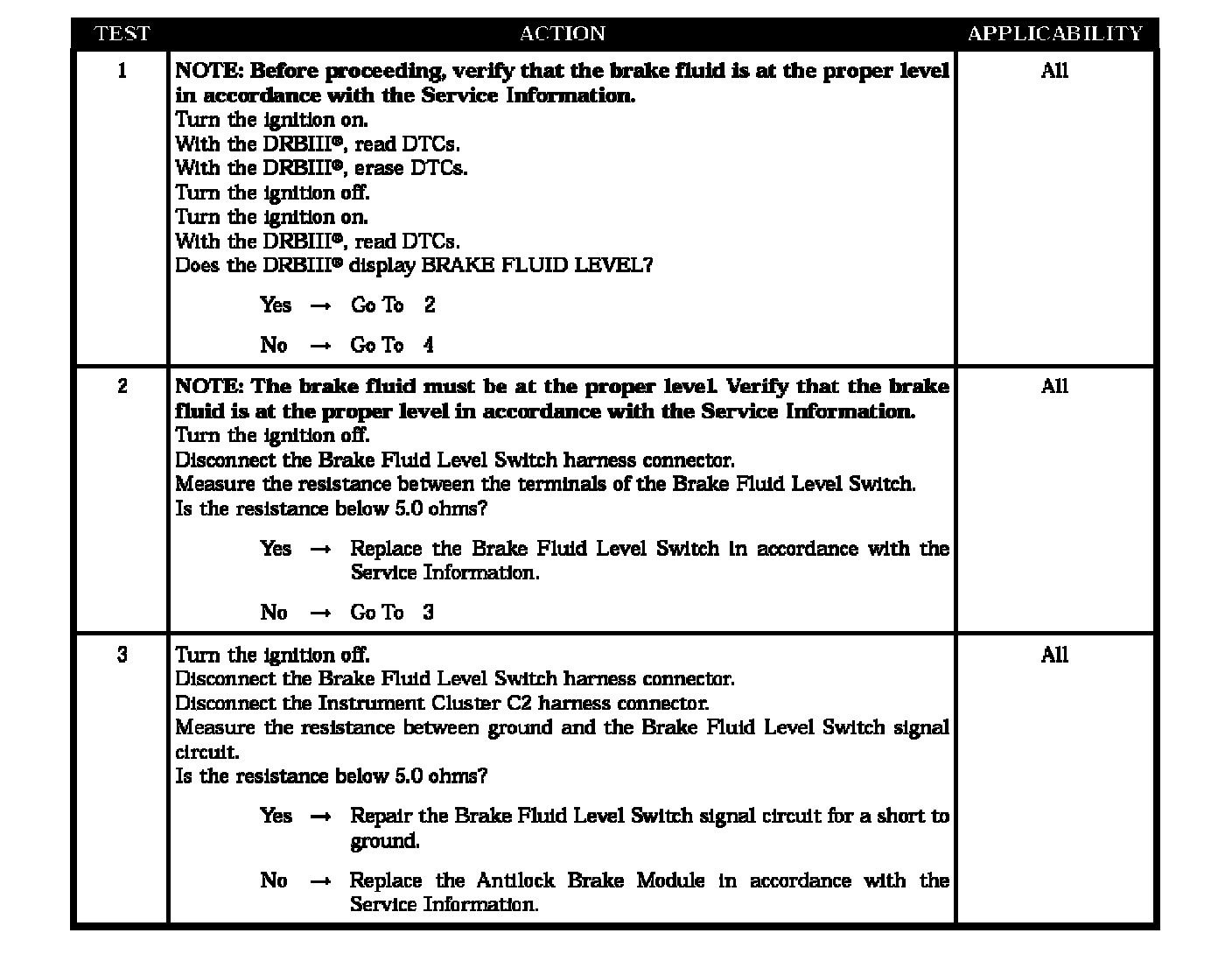

Test 1 - Test 3:

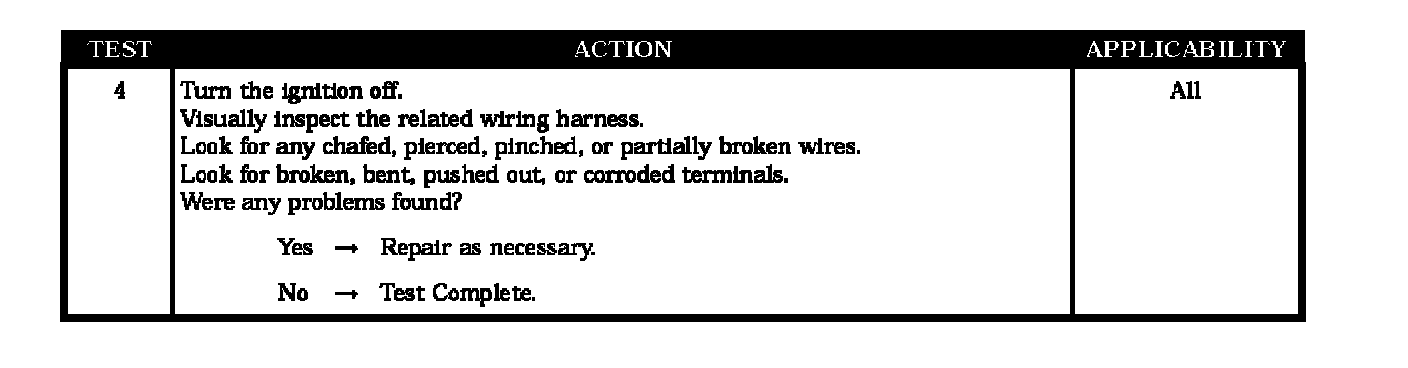

Test 4:
