Home >> Freightliner Truck >> 2006 >> Sprinter 3500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brake System (ABS) >> Steering Angle Sensor Internal Fault

Steering Angle Sensor Internal Fault

Symptom:

STEERING ANGLE SENSOR INTERNAL FAULT

POSSIBLE CAUSES
^ STEERING ANGLE SENSOR INTERMITTENT DTC
^ STEERING ANGLE SENSOR

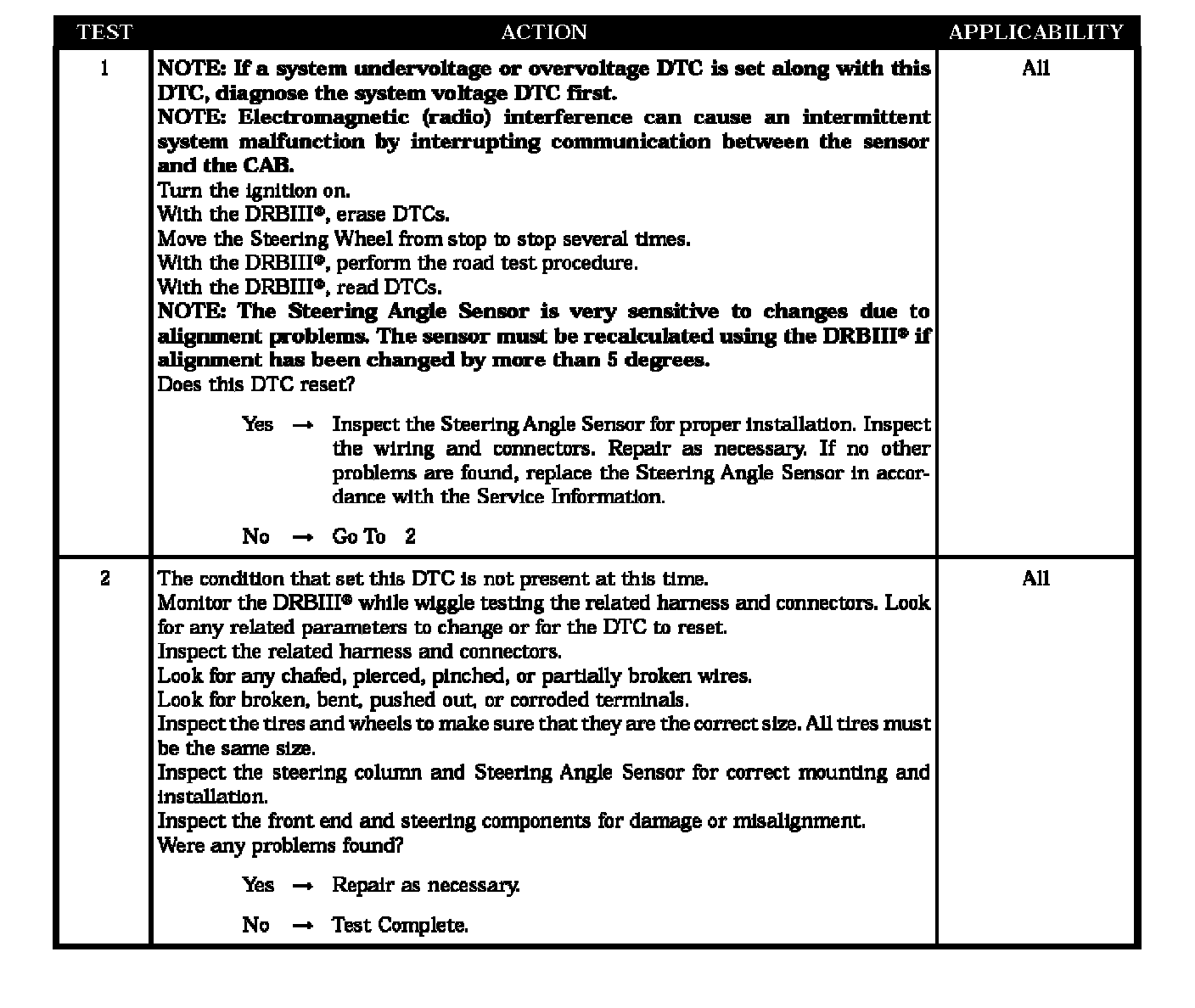

Test 1 - Test 2:
