Solenoid Relay
Symptom:SOLENOID RELAY
When Monitored and Set Condition:
When Monitored: Ignition On - Continuously.
Set Condition: When there is a voltage deviation from the expected result of a CAB internal self check.

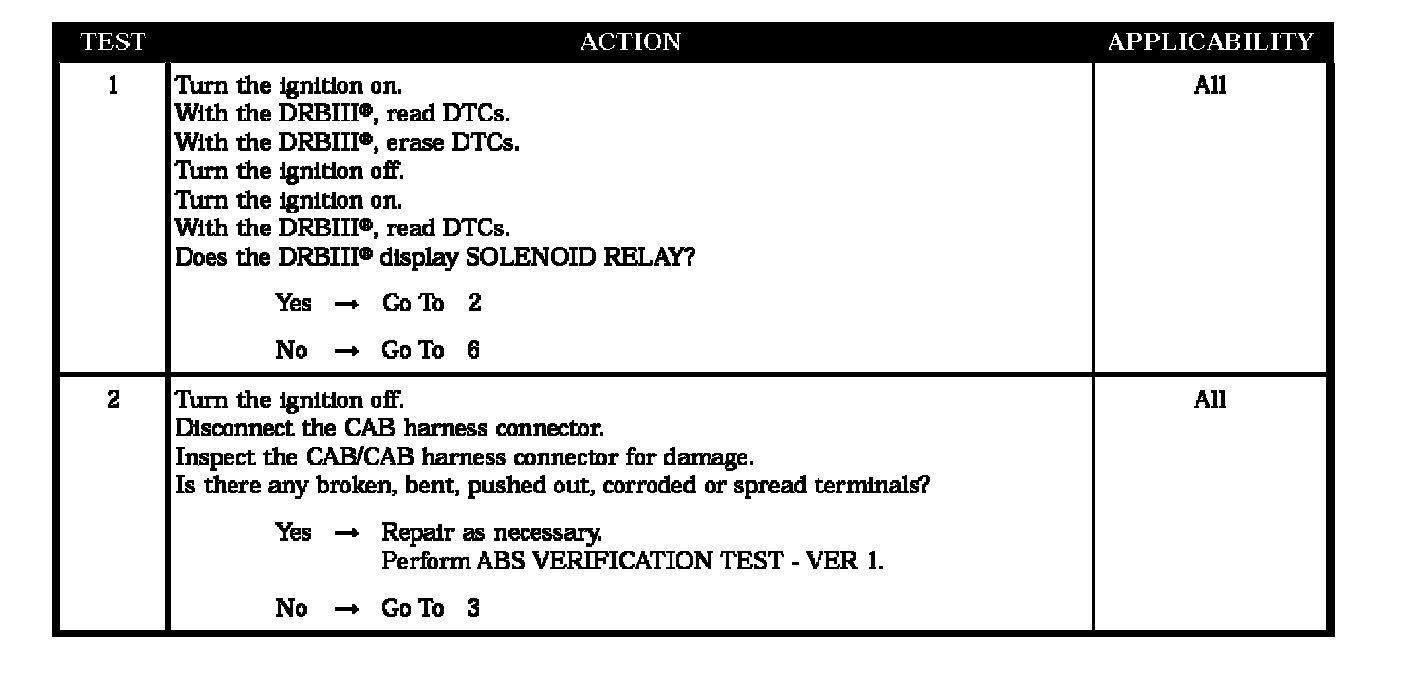

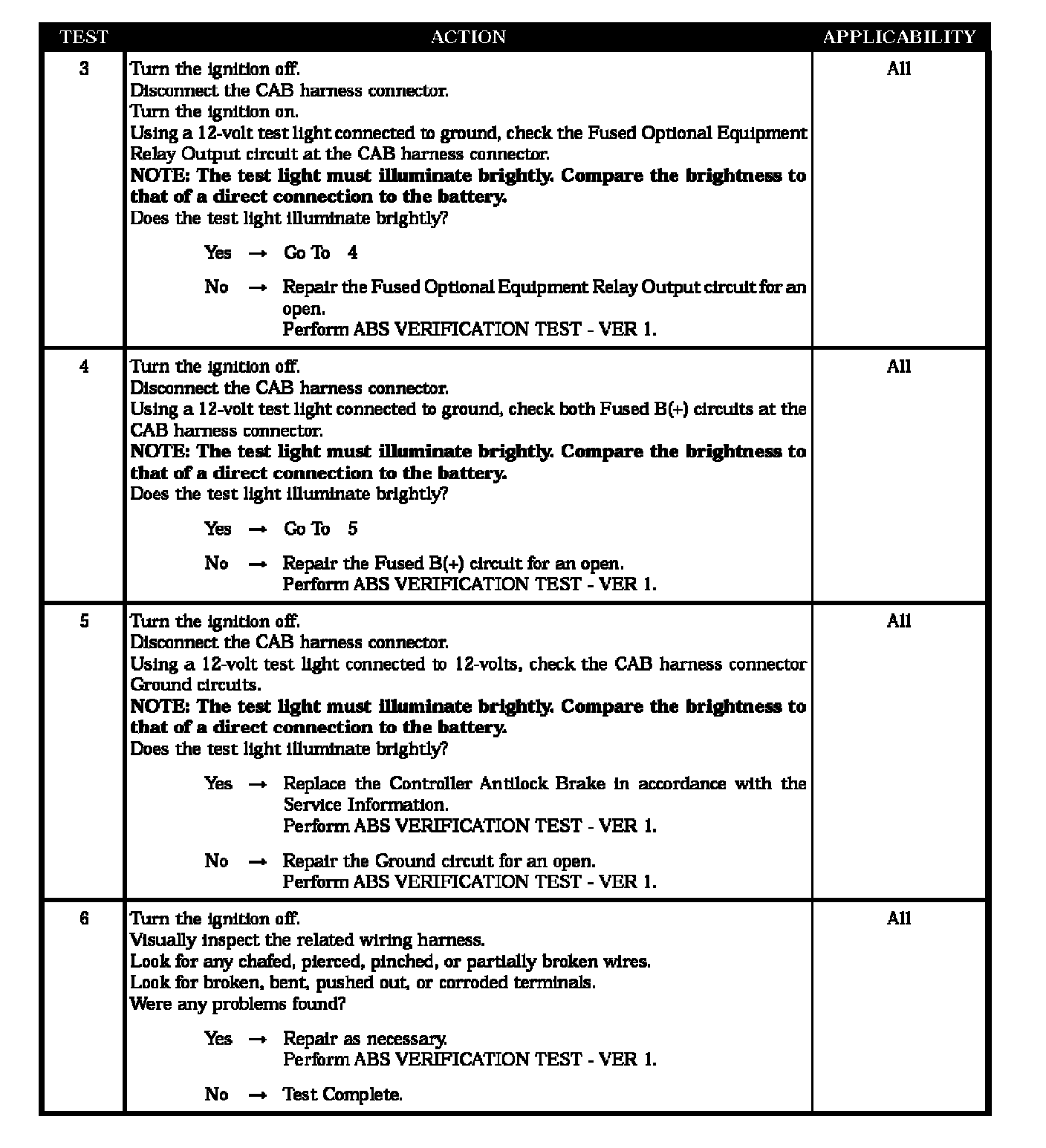

POSSIBLE CAUSES
^ INTERMITTENT SOLENOID RELAY DTC
^ DAMAGED CAB/CAB HARNESS CONNECTOR
^ FUSED OPTIONAL EQUIPMENT RELAY OUTPUT CIRCUIT OPEN
^ FUSED B(+) CIRCUIT OPEN
^ GROUND CIRCUIT OPEN
^ ANTI-LOCK BRAKE CONTROLLER
