Pump Motor
Symptom:PUMP MOTOR
When Monitored and Set Condition:
When Monitored: Ignition On - Continuously
Set Condition: When the pump motor voltage is not present after enabling the pump motor relay OR pump motor has voltage when the pump motor relay is disabled OR pump motor slow down test fails OR pump motor relay does not turn on completely.
POSSIBLE CAUSES
^ INTERMITTENT PUMP MOTOR DTC
^ DAMAGED CAB/CAB HARNESS CONNECTOR
^ FUSED OPTIONAL EQUIPMENT RELAY OUTPUT CIRCUIT OPEN
^ FUSED B(+) CIRCUIT OPEN
^ GROUND CIRCUIT OPEN
^ PUMP MOTOR

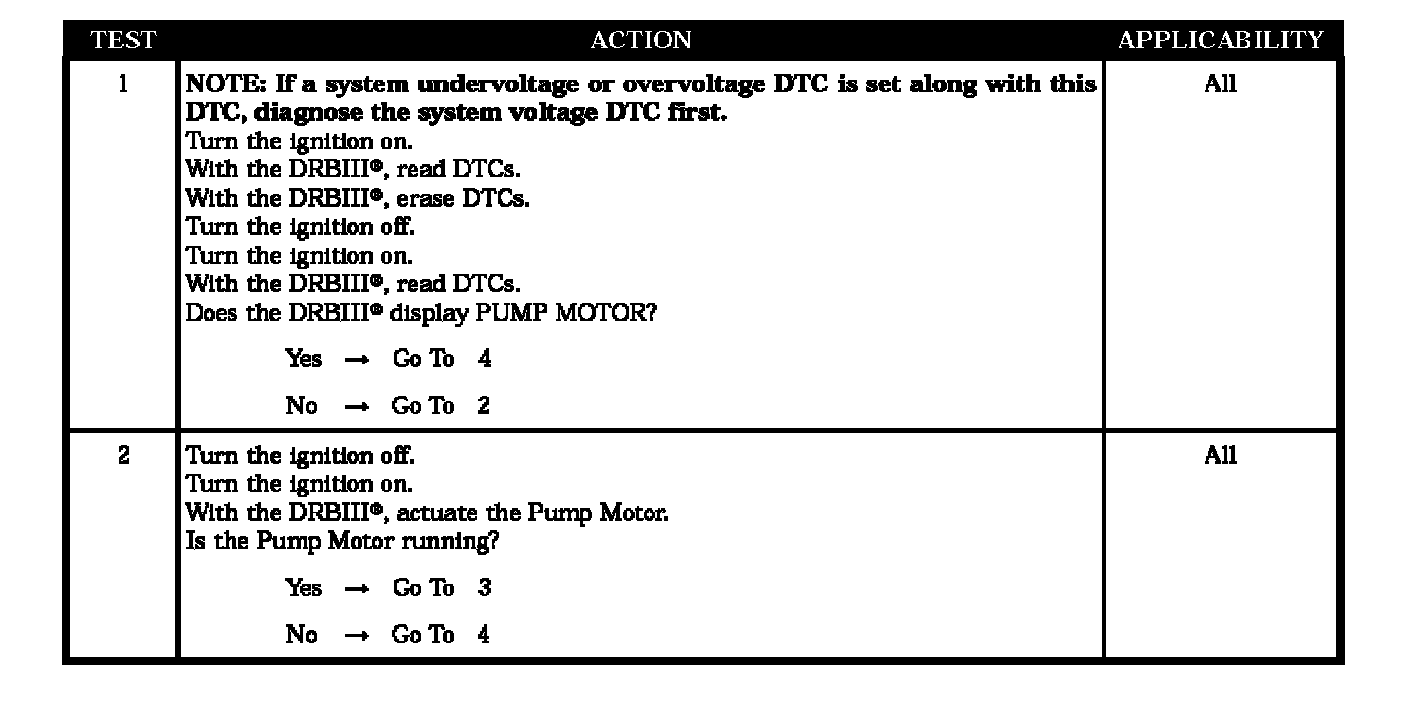

Test 1 - Test 2:
