CAB Internal Failure
Symptom List:ANTI-LOCK BRAKE MODULE INTERNAL
CAB INTERNAL
Test Note: All symptoms listed above are diagnosed using the same tests. The title for the tests will be ANTI-LOCK BRAKE MODULE INTERNAL.
When Monitored and Set Condition:
ANTI-LOCK BRAKE MODULE INTERNAL
When Monitored: Ignition On - Continuously.
Set Condition: When there is a deviation from the expected result of a CAB internal self check.
CAB INTERNAL
When Monitored: Ignition On - Continuously.
Set Condition: When there is a deviation from the expected result of a CAB internal self check.
POSSIBLE CAUSES
^ INTERMITTENT CAB INTERNAL DTC
^ DAMAGED CAB/CAB HARNESS CONNECTOR
^ FUSED OPTIONAL EQUIPMENT RELAY OUTPUT CIRCUIT OPEN
^ FUSED B(+) CIRCUIT OPEN
^ GROUND CIRCUIT OPEN
^ ANTI-LOCK BRAKE CONTROLLER
^ BRAKES (CAB)

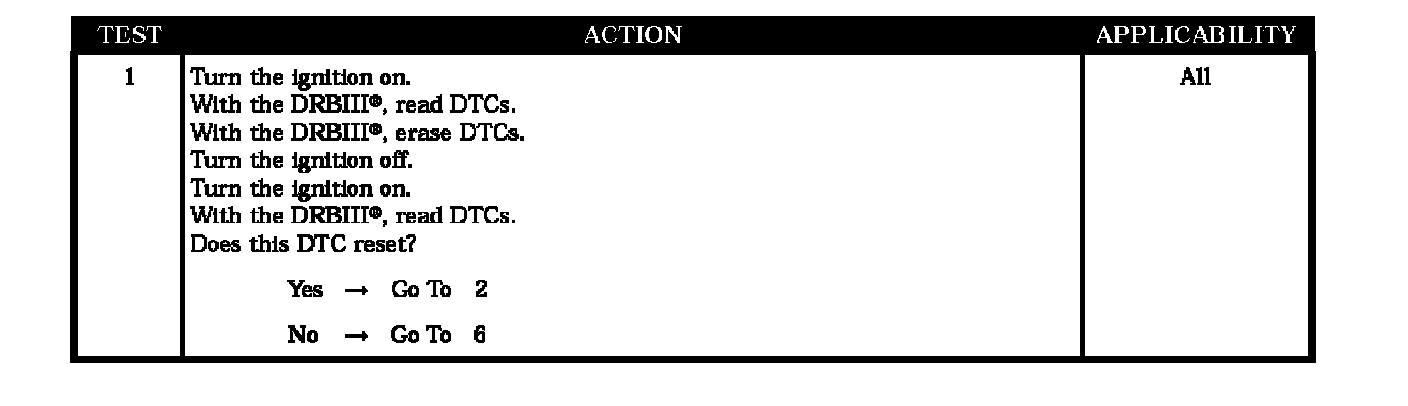

Test 1:
