G202

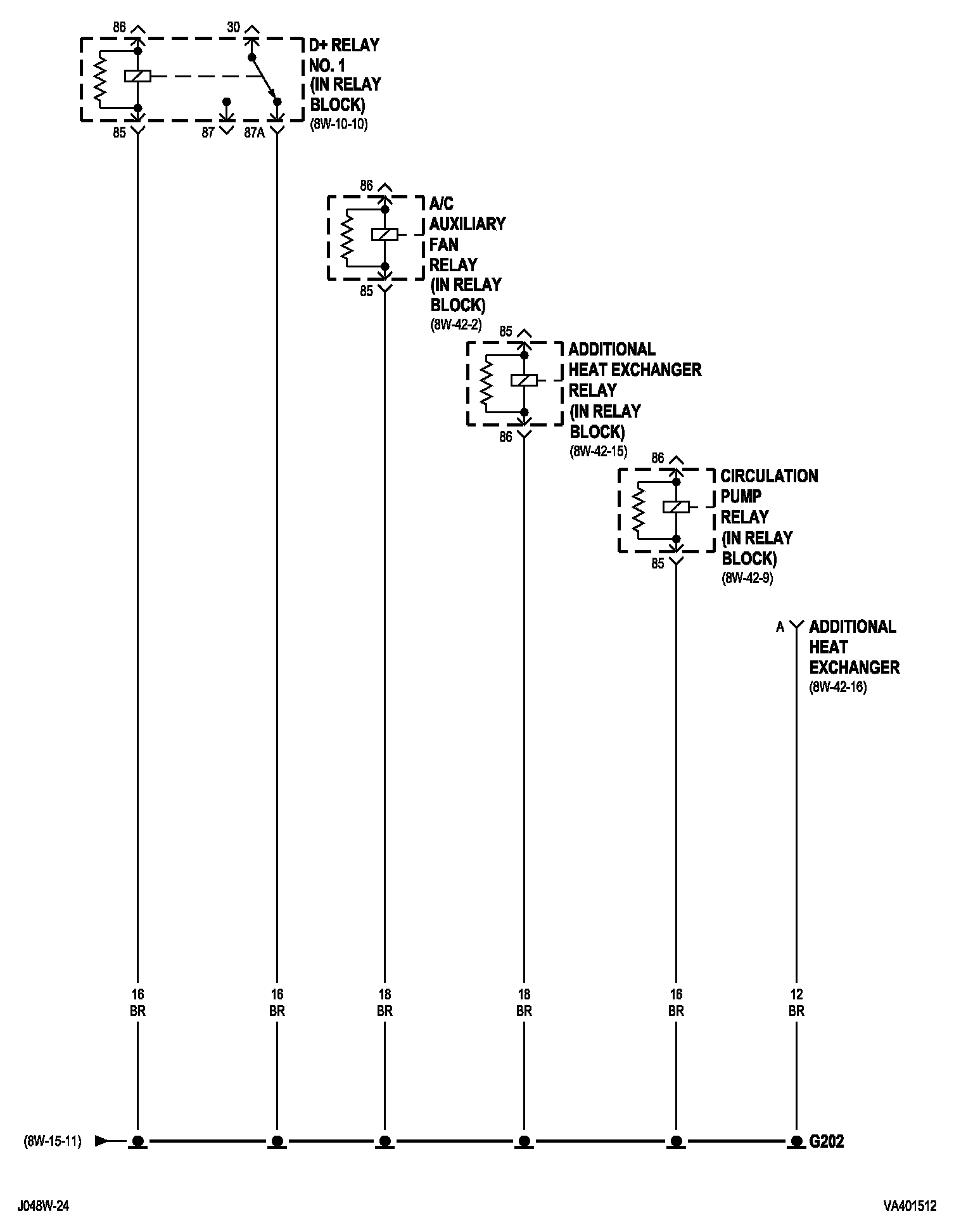

8w-15-11:

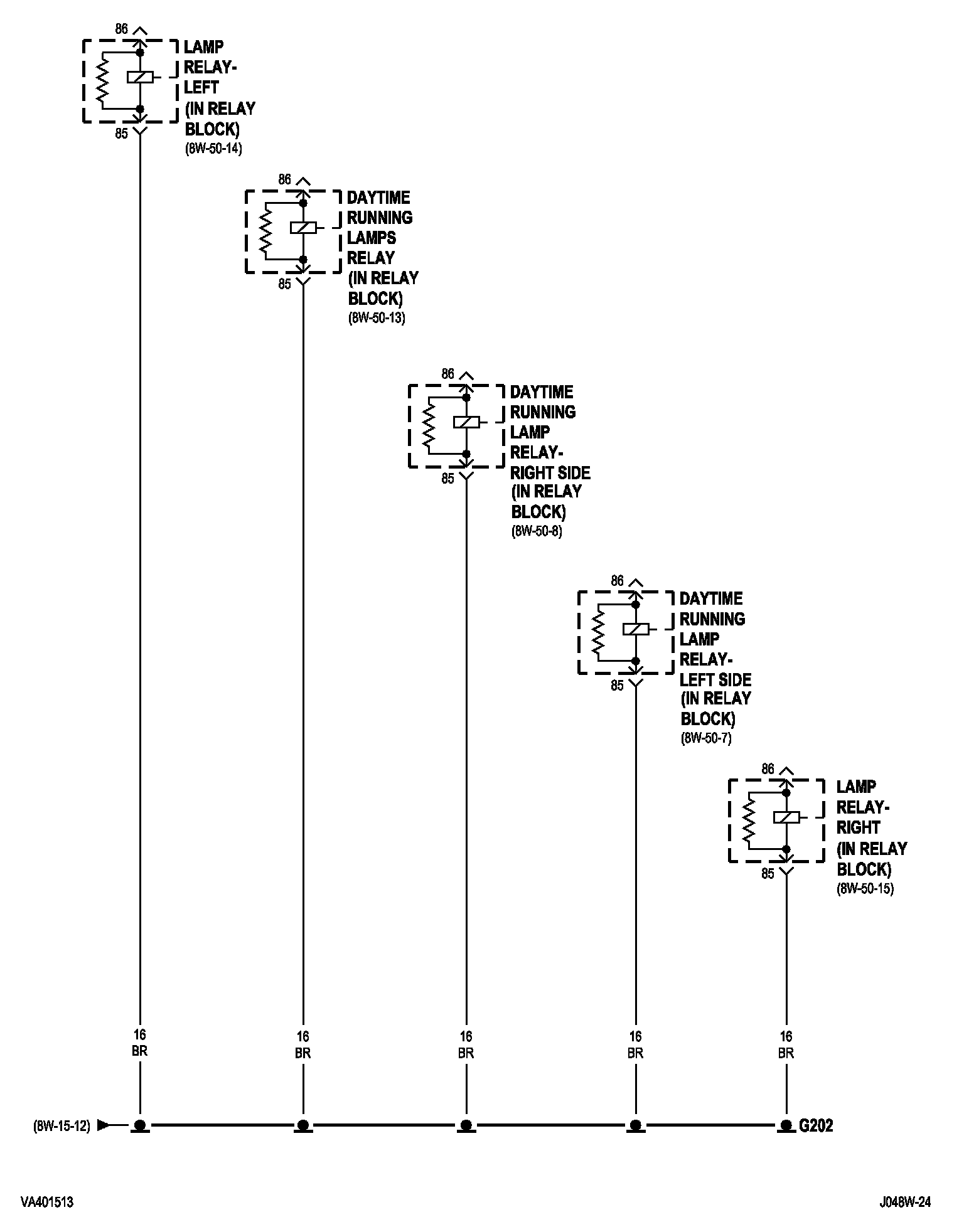

8w-15-12:

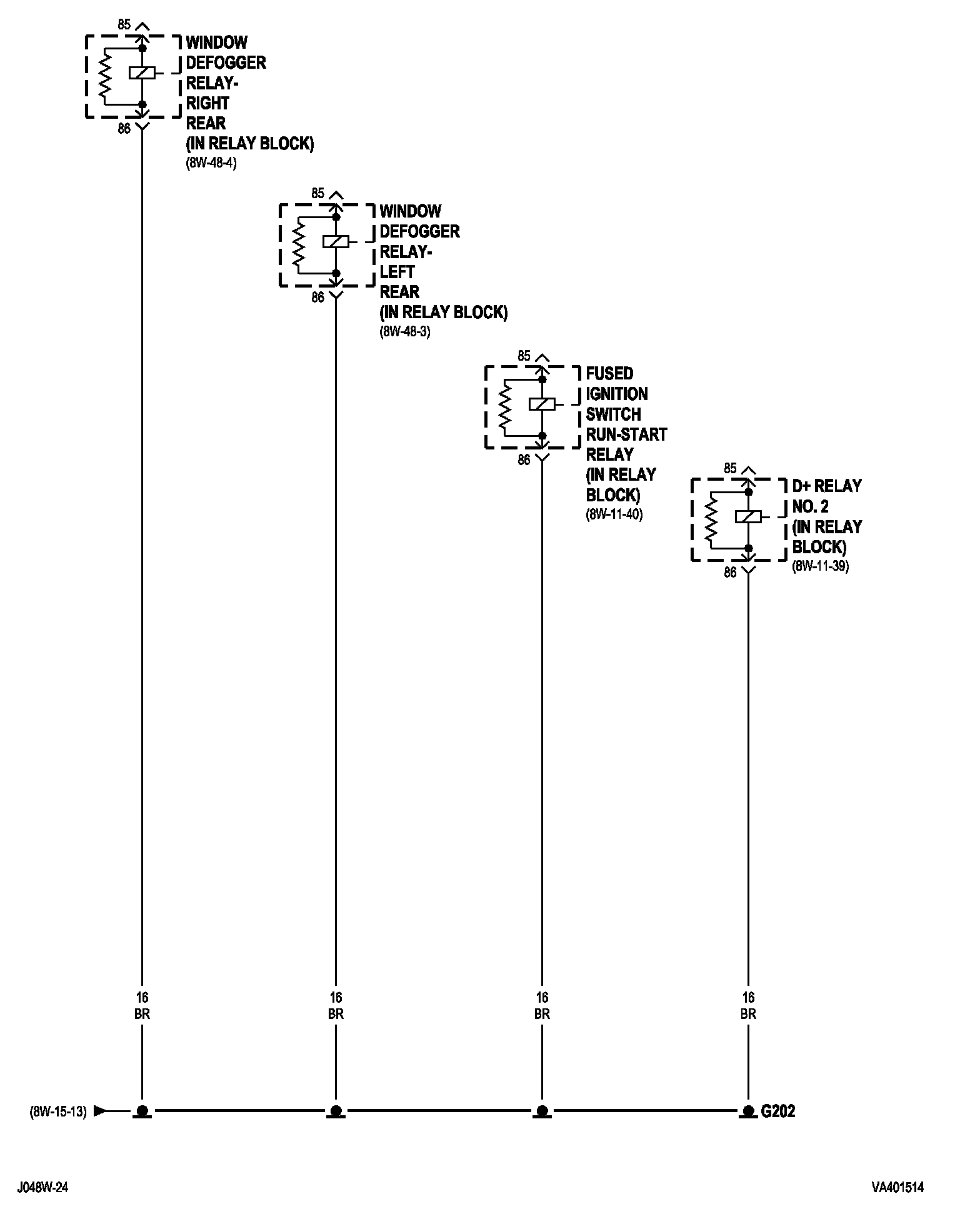

8w-15-13:

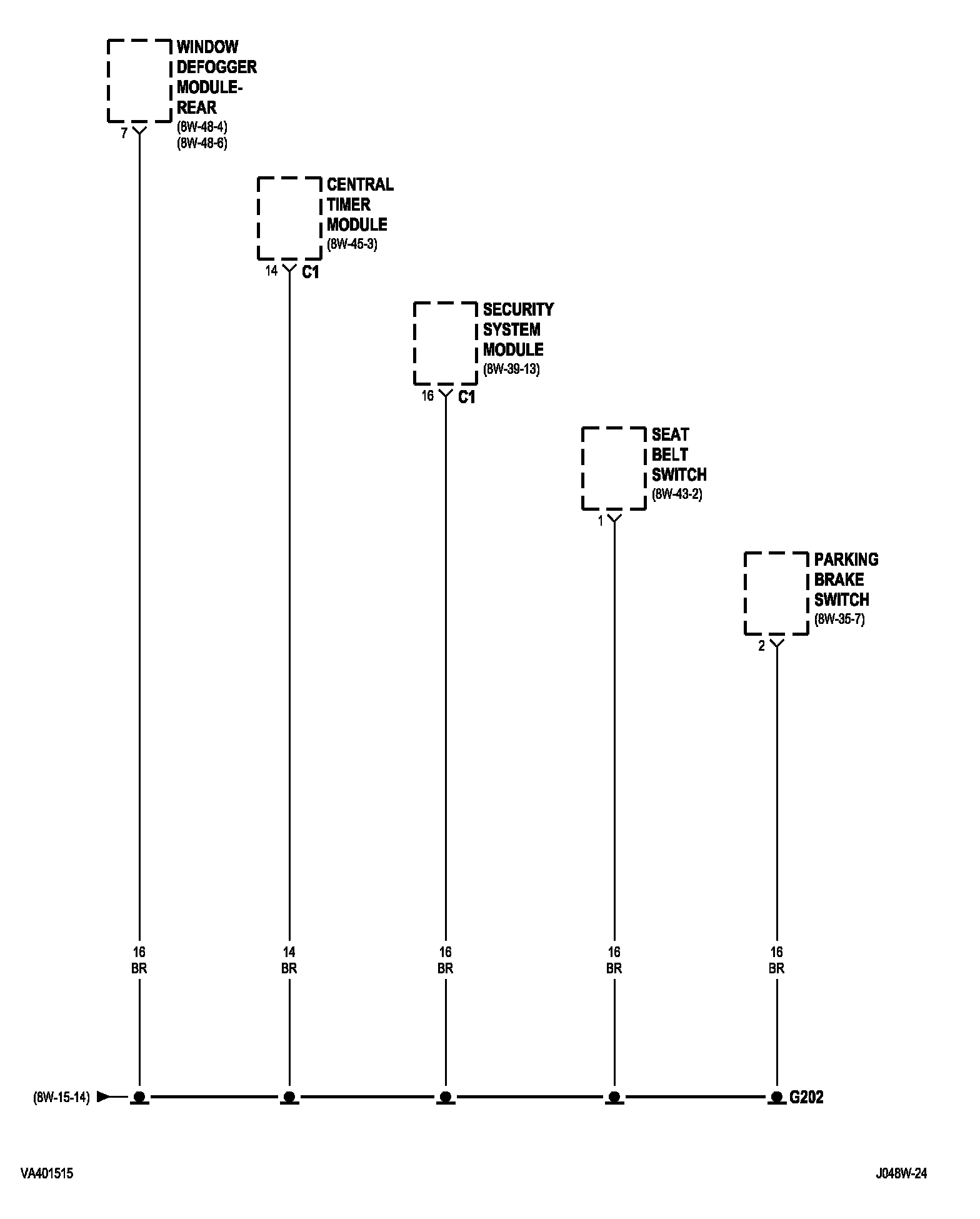

8w-15-14:

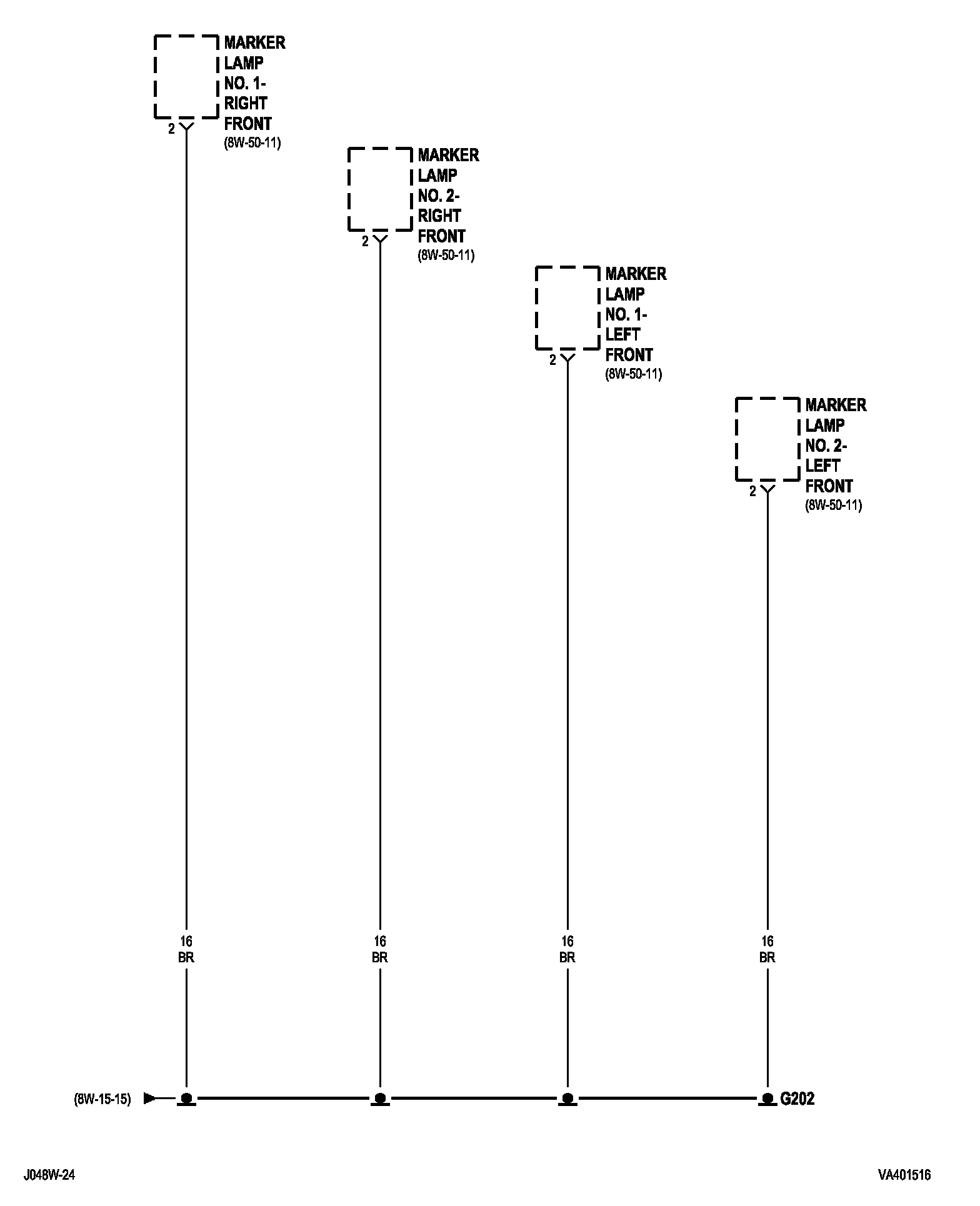

8w-15-15:

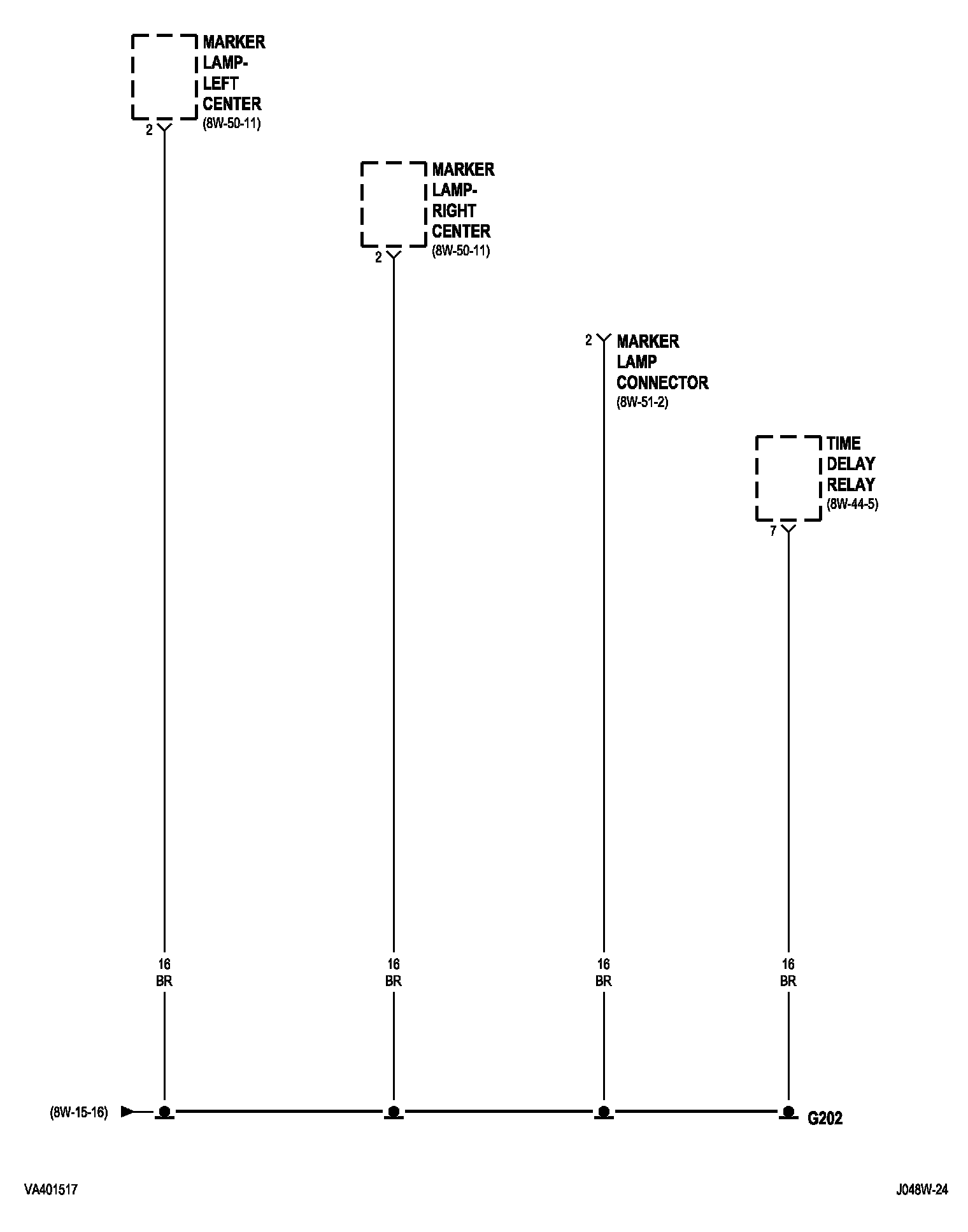

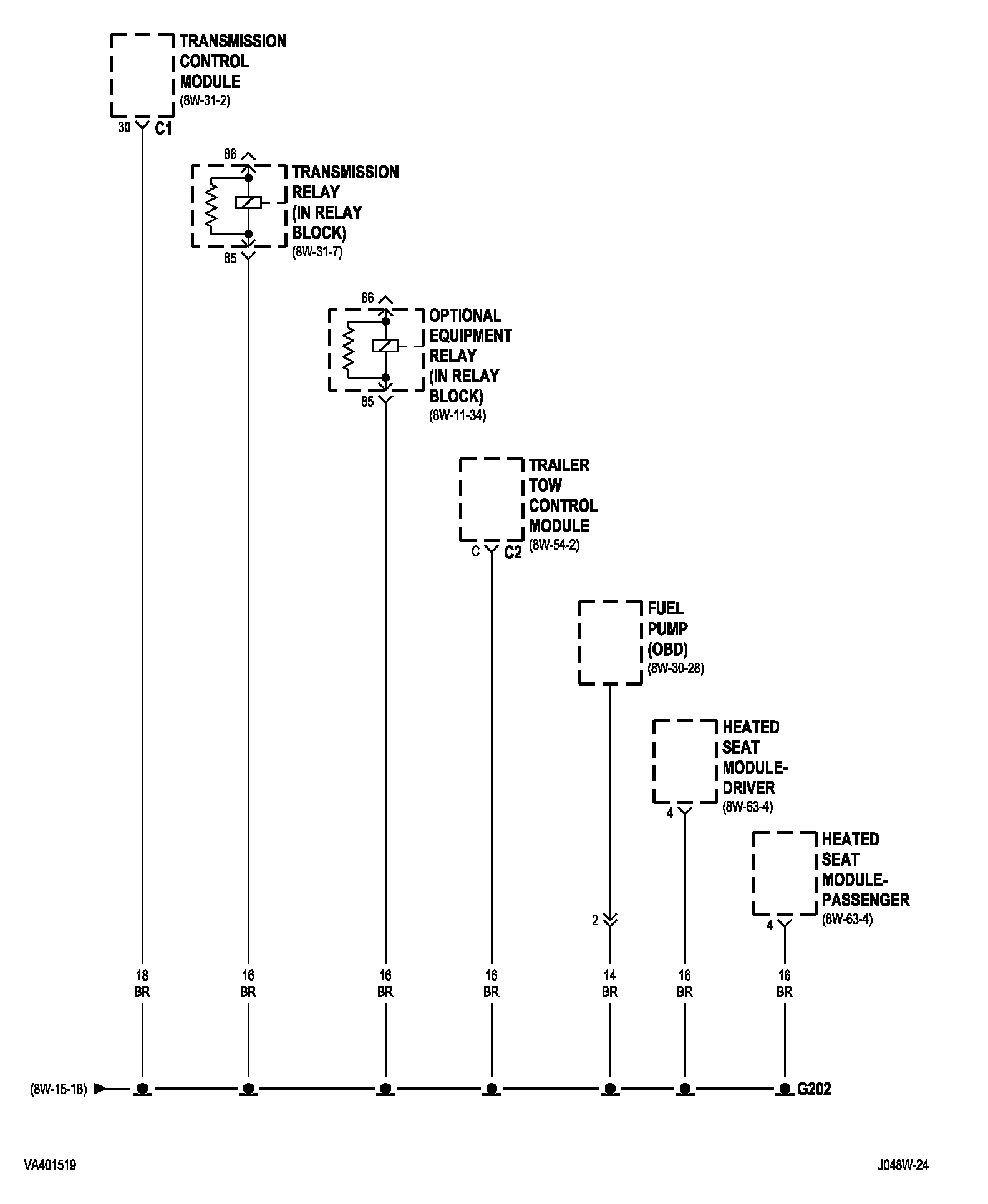

8w-15-16:

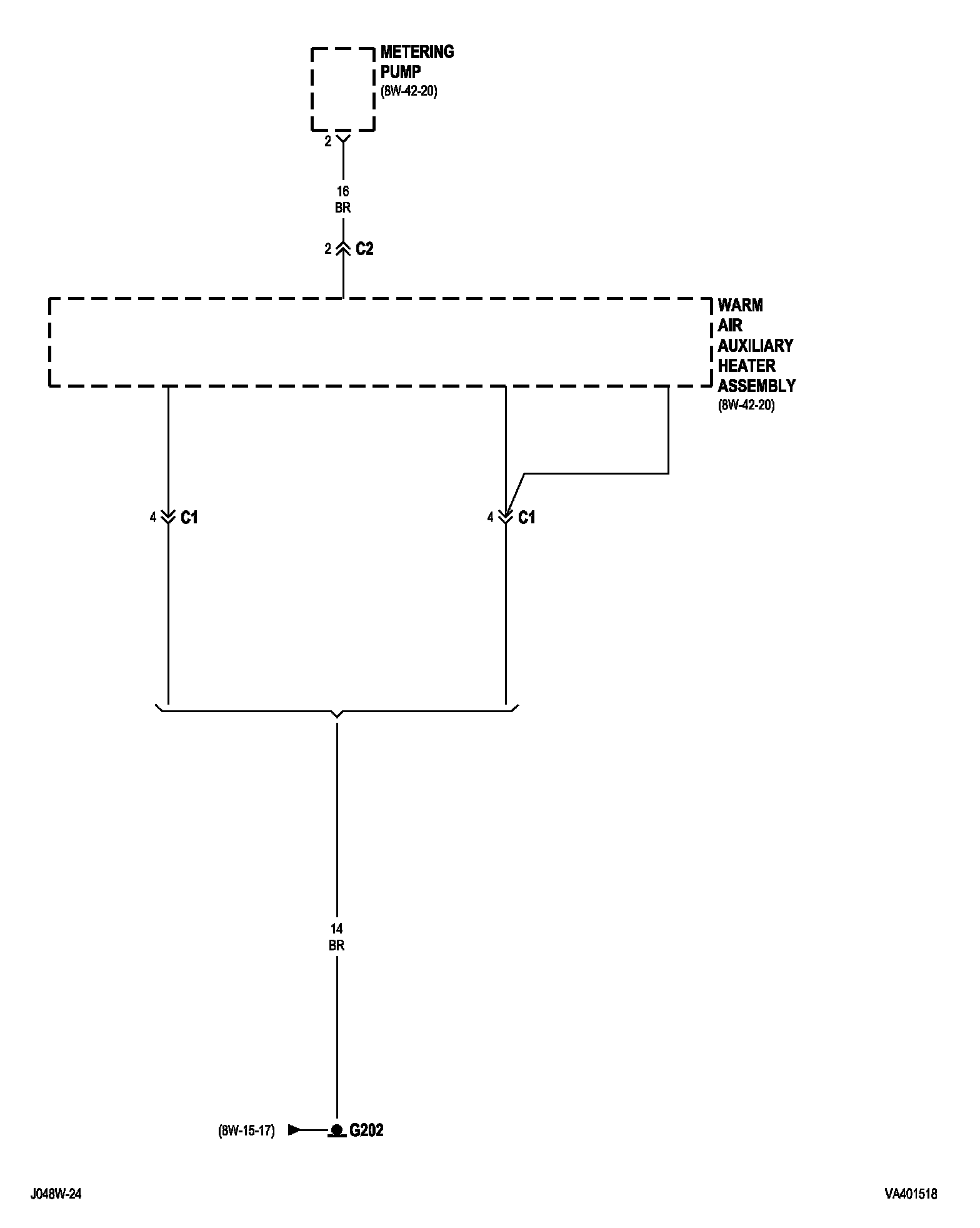

8w-15-17:





8w-15-18:





8w-15-19:
