Rain Sensor: Testing and Inspection

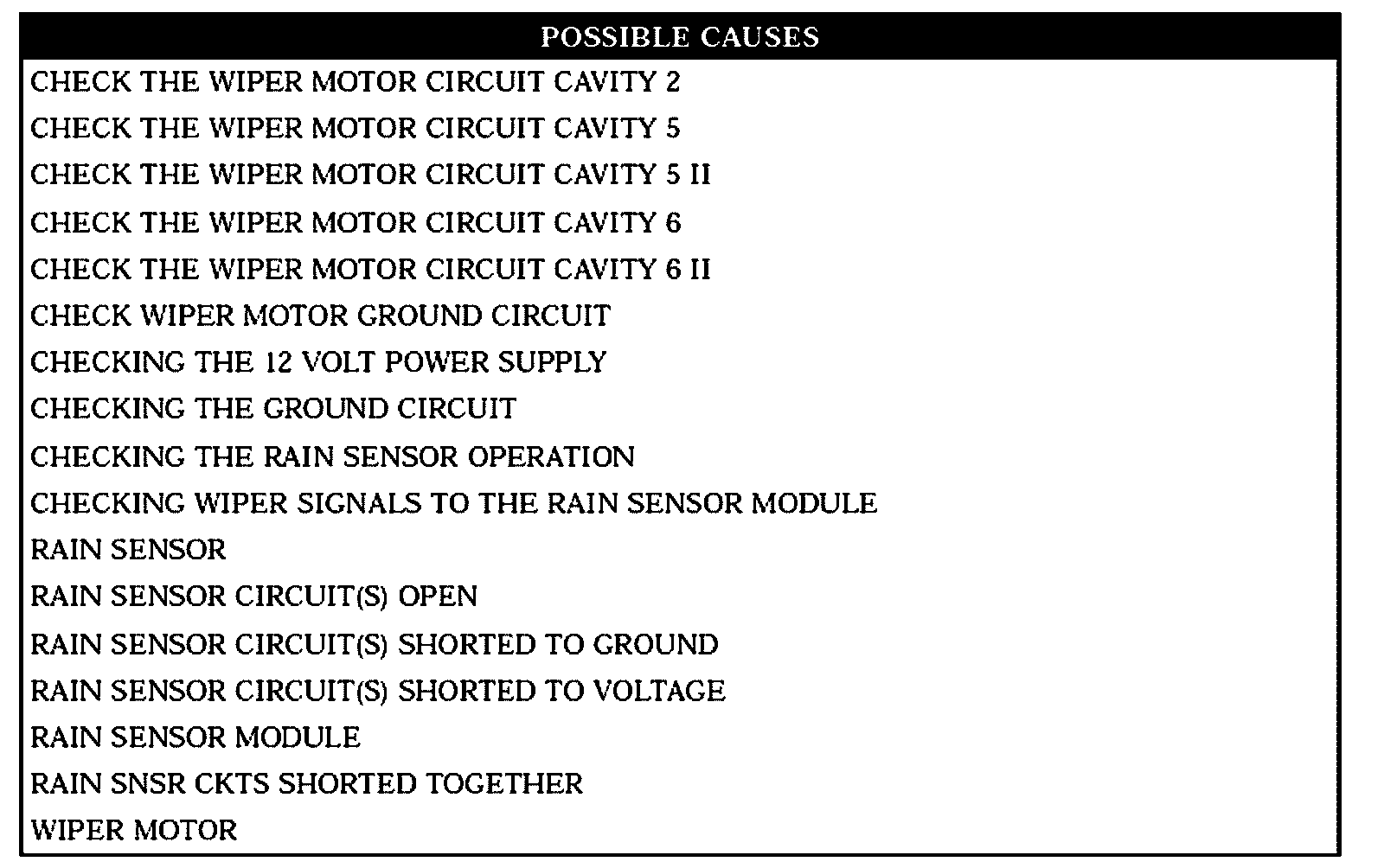

Checking the Rain Sensor/Wiper operation

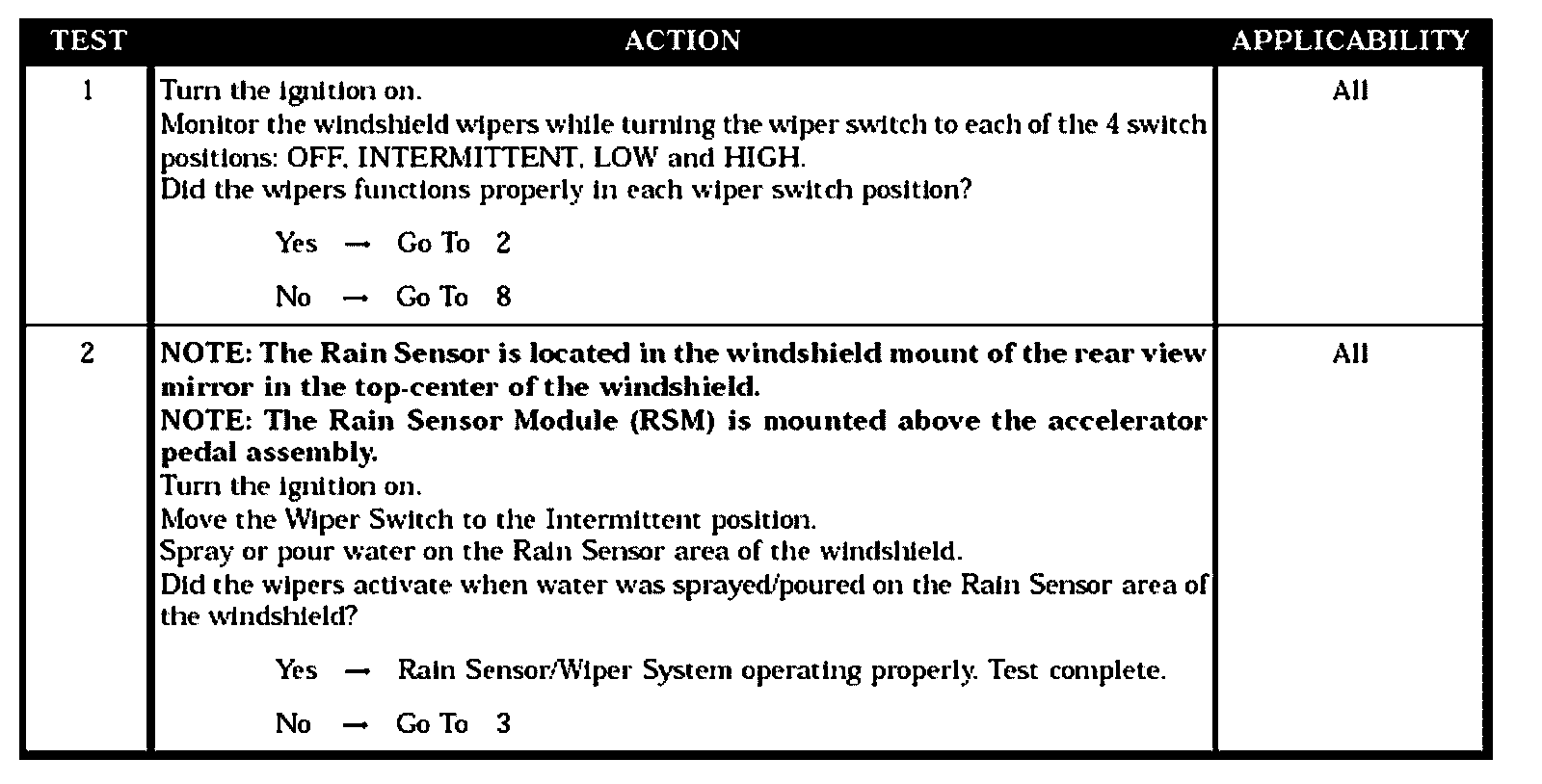

Test 1 - 2:

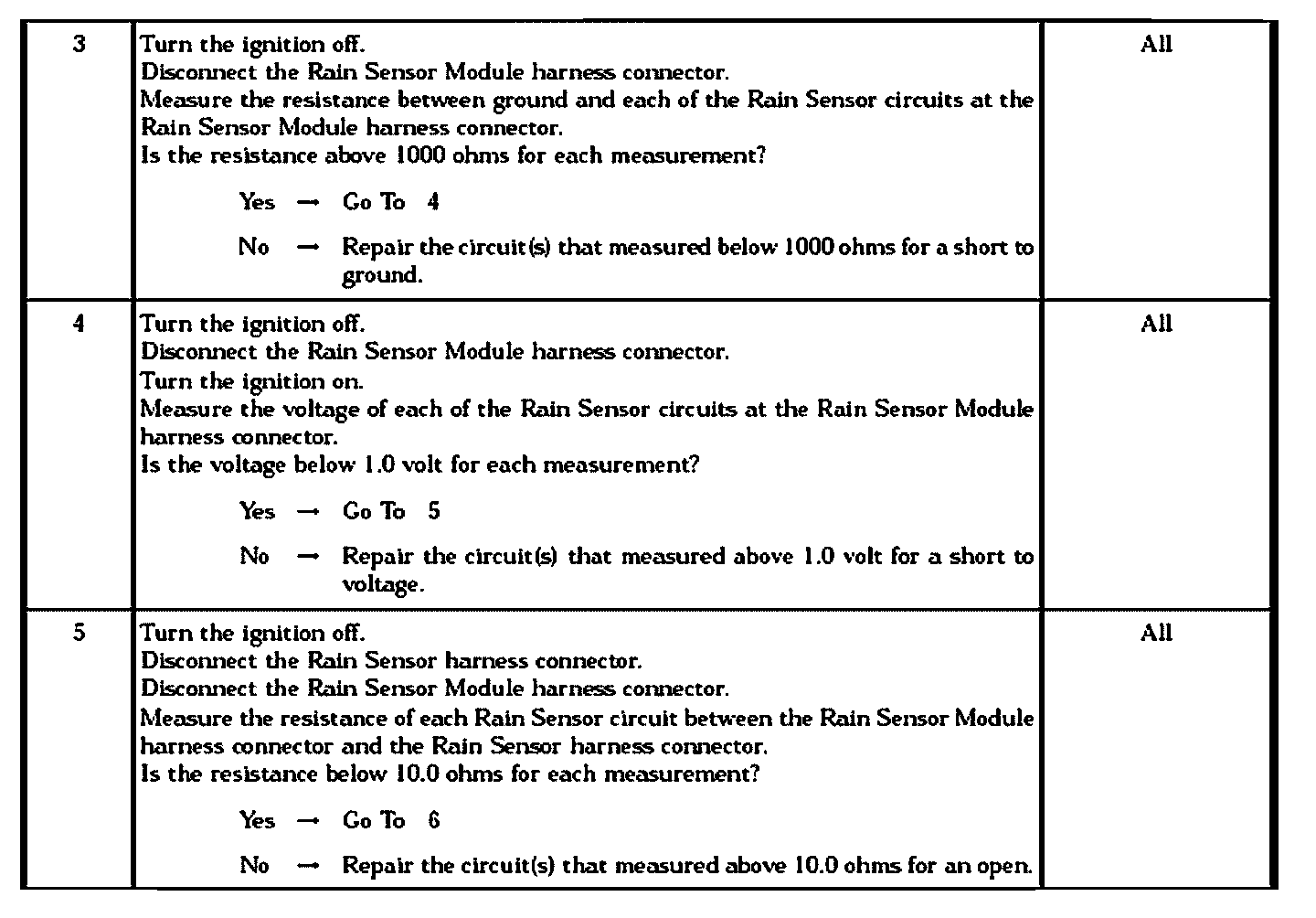

Test 3 - 5:

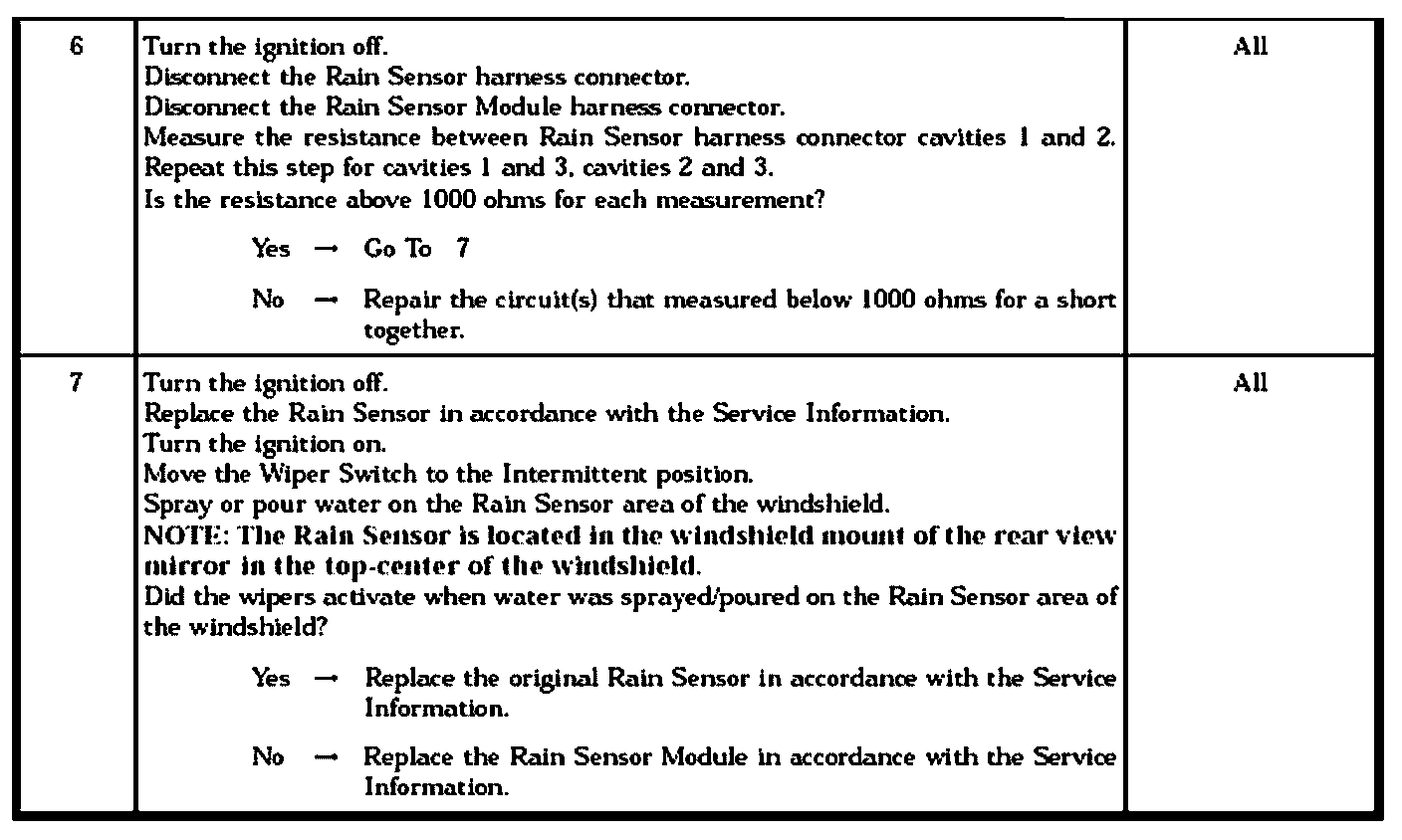

Test 6 - 7:

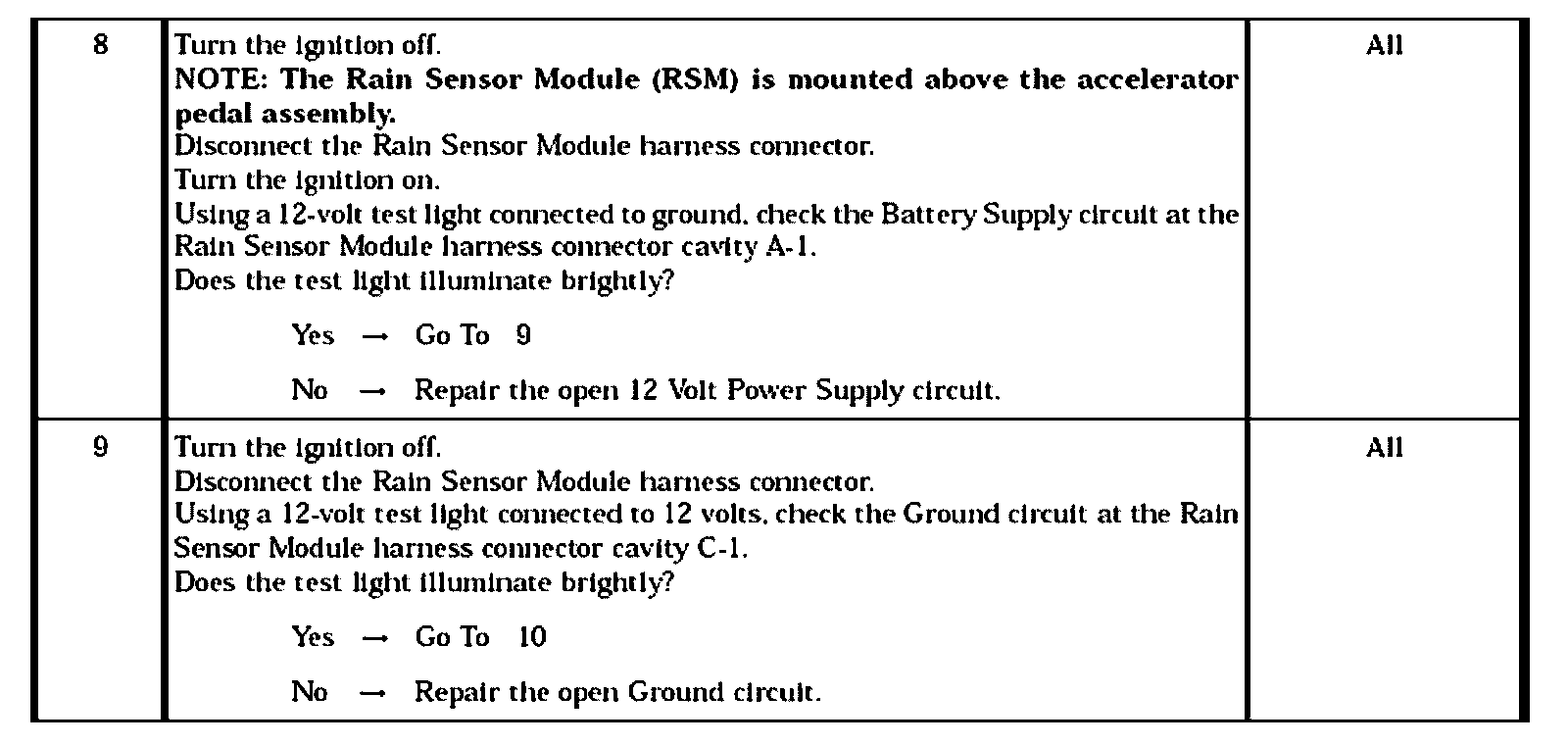

Test 8 - 9:

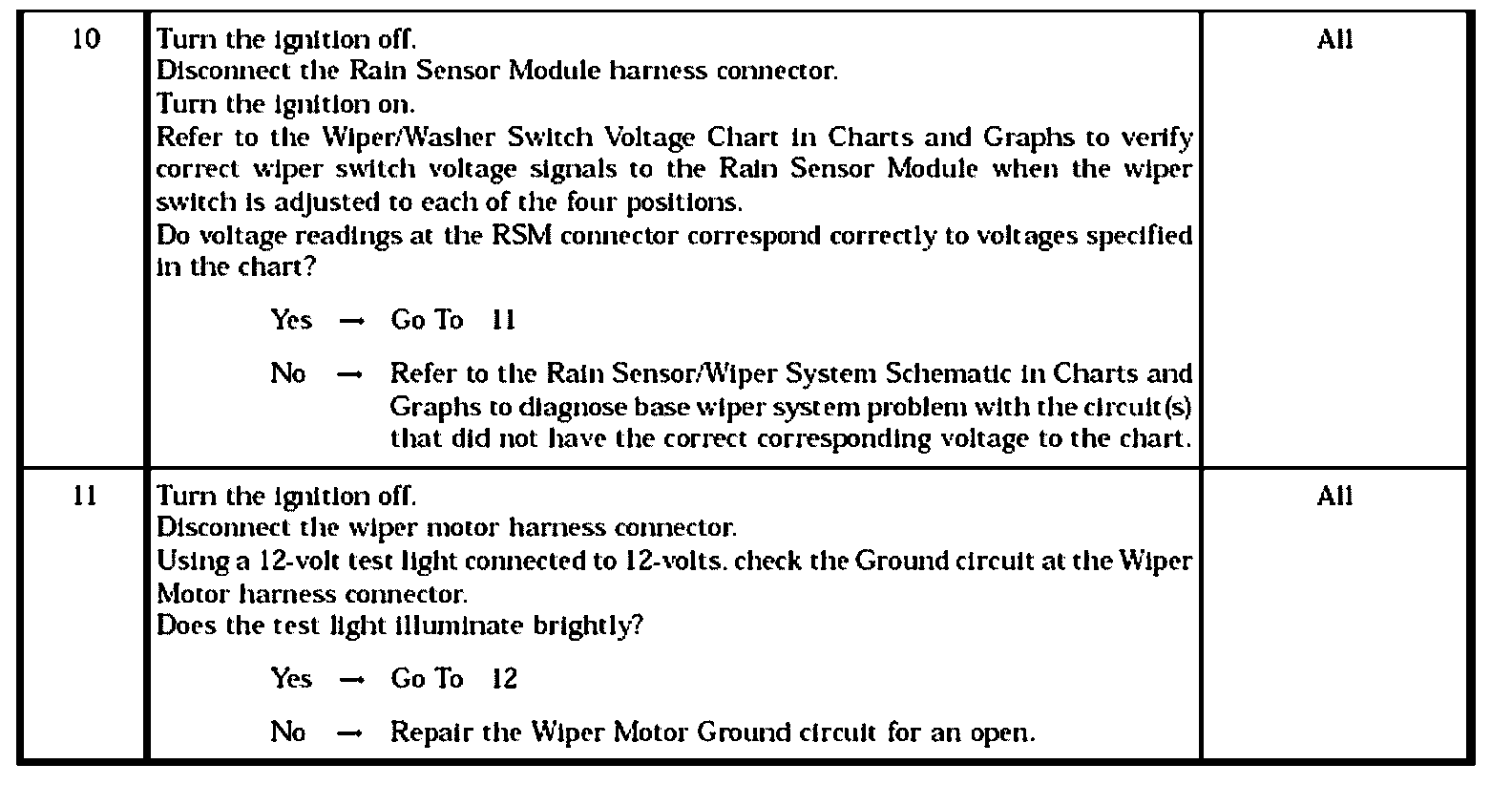

Test 10 - 11:

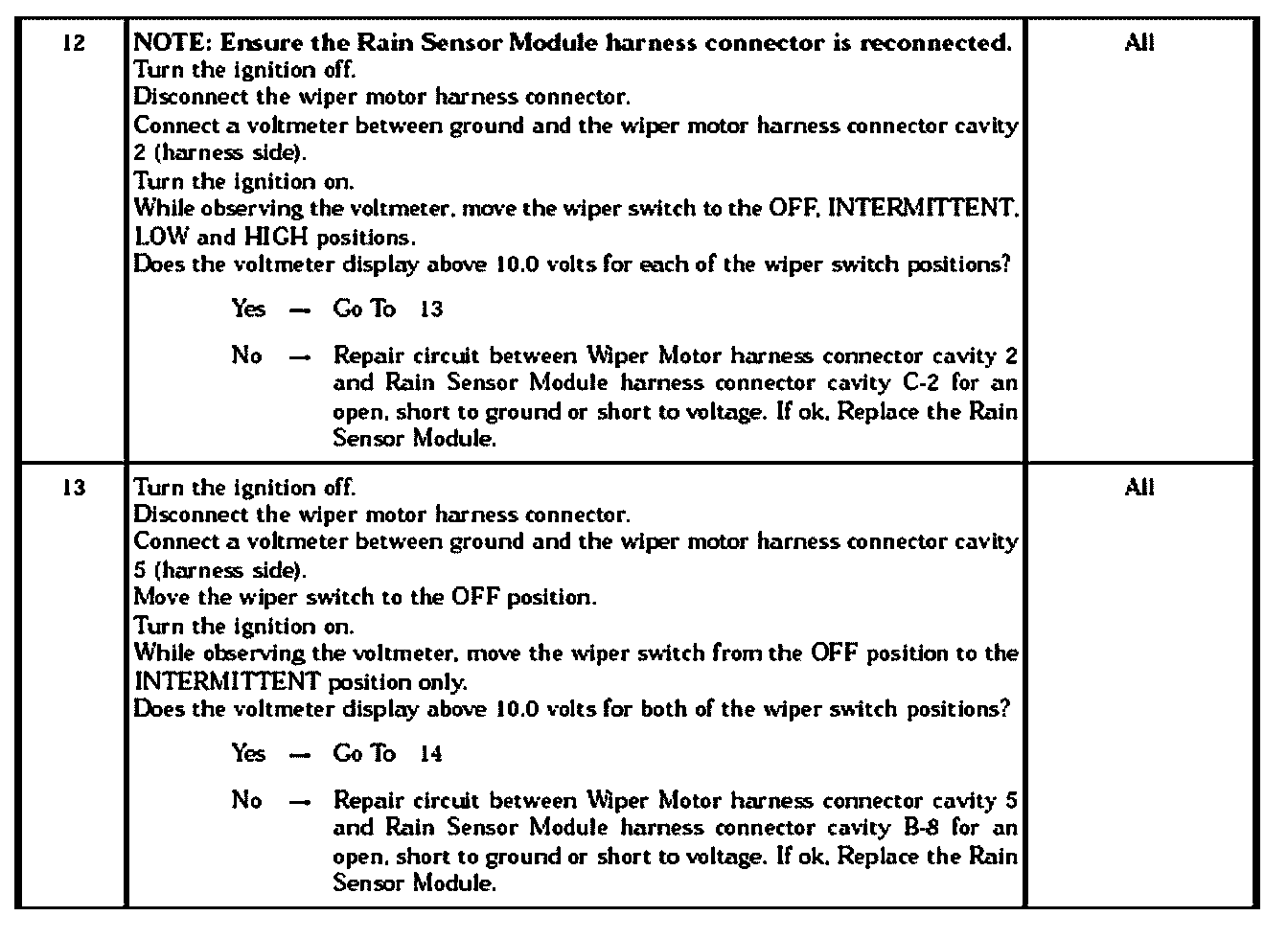

Test 12 - 13:

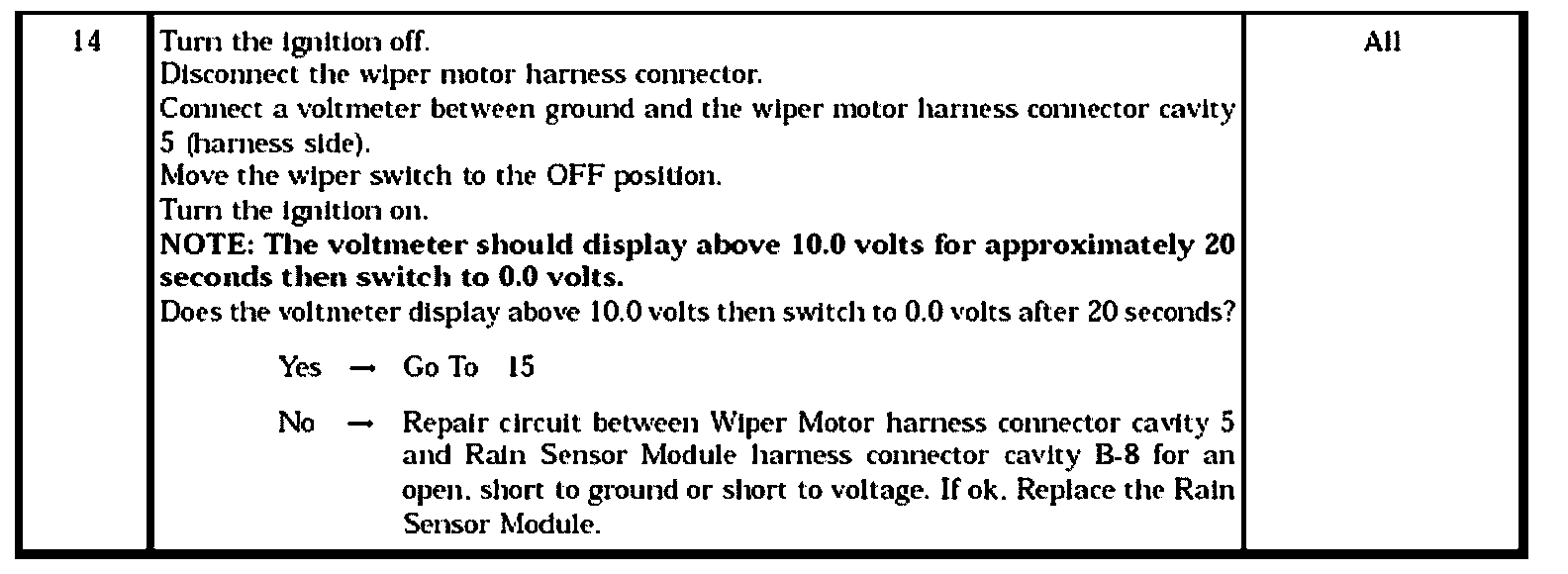

Test 14:

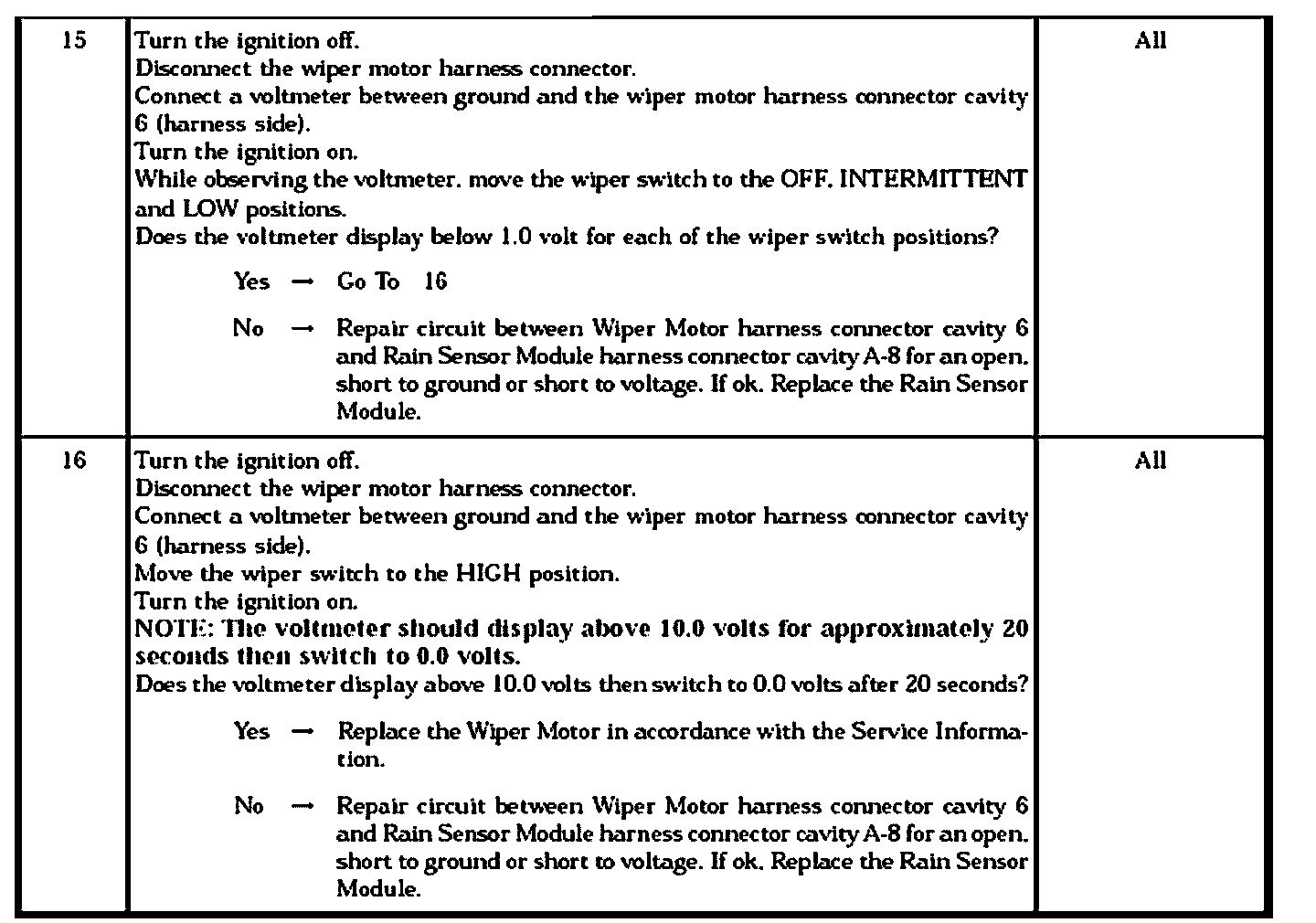

Test 15 - 16:
