Interior Light Switch: Diagrams

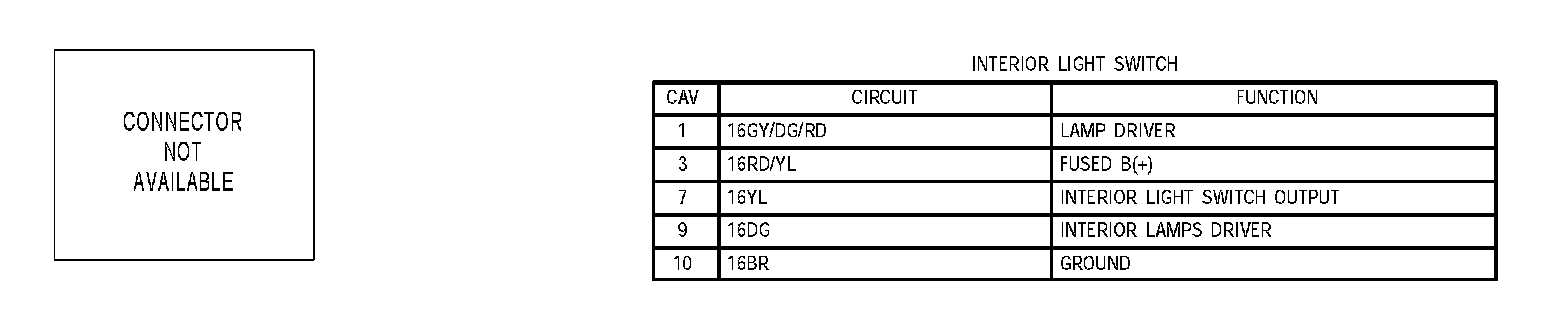

Interior Light Switch:






Interior Light Switch-Driver:

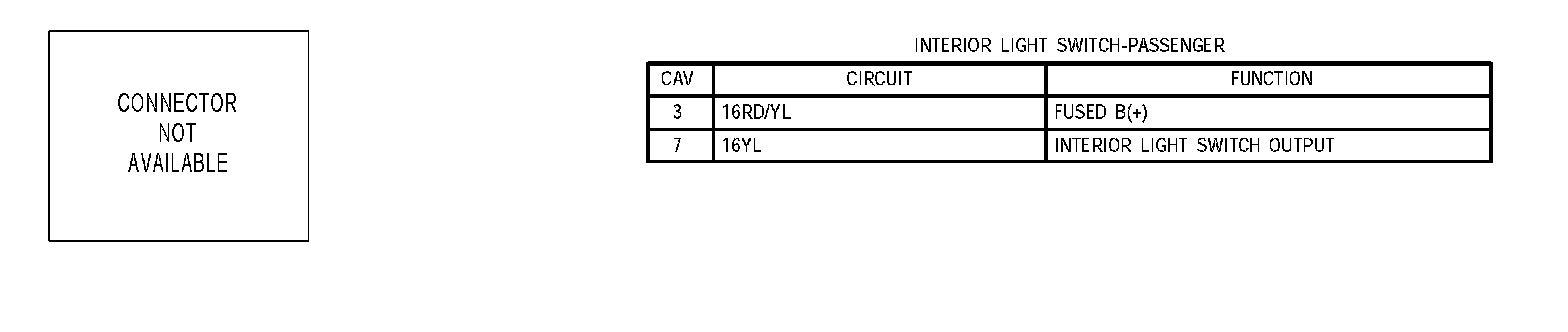

Interior Light Switch-Passenger:

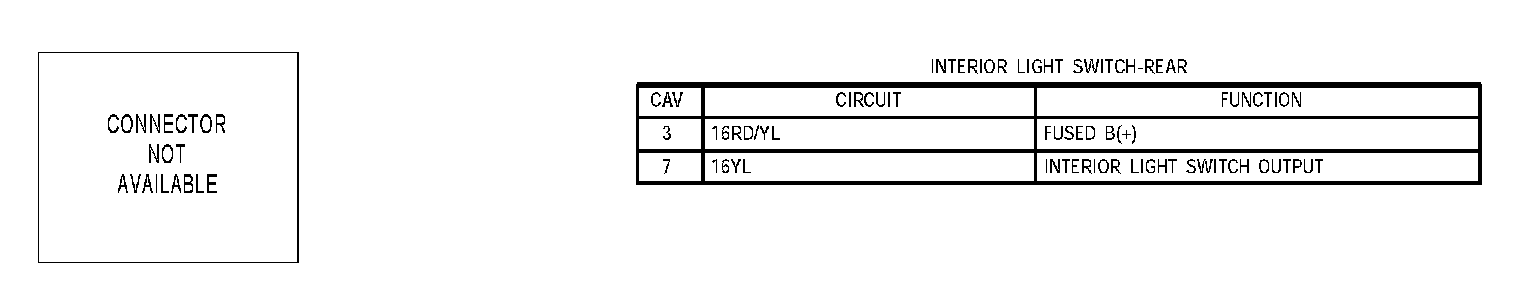

Interior Light Switch-Rear:
