Fuel Injector: Diagrams

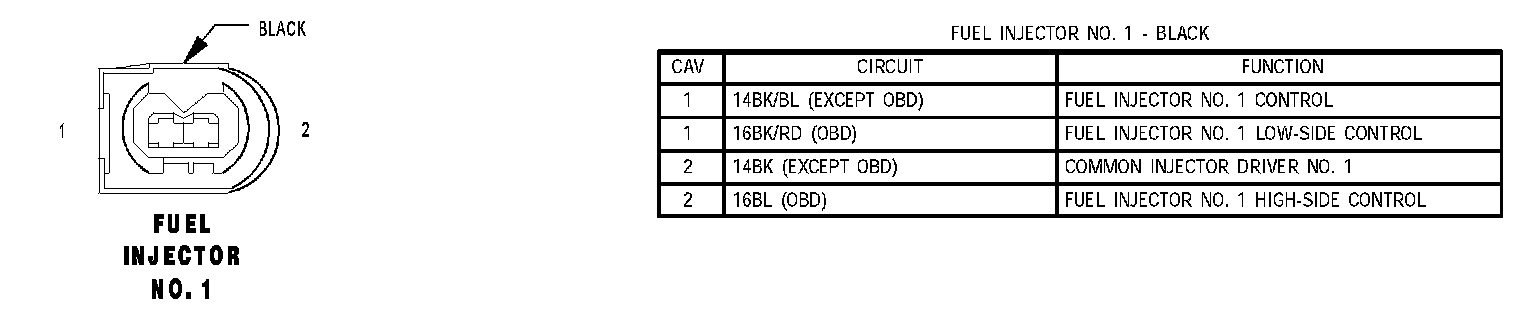

Fuel Injector No.1:

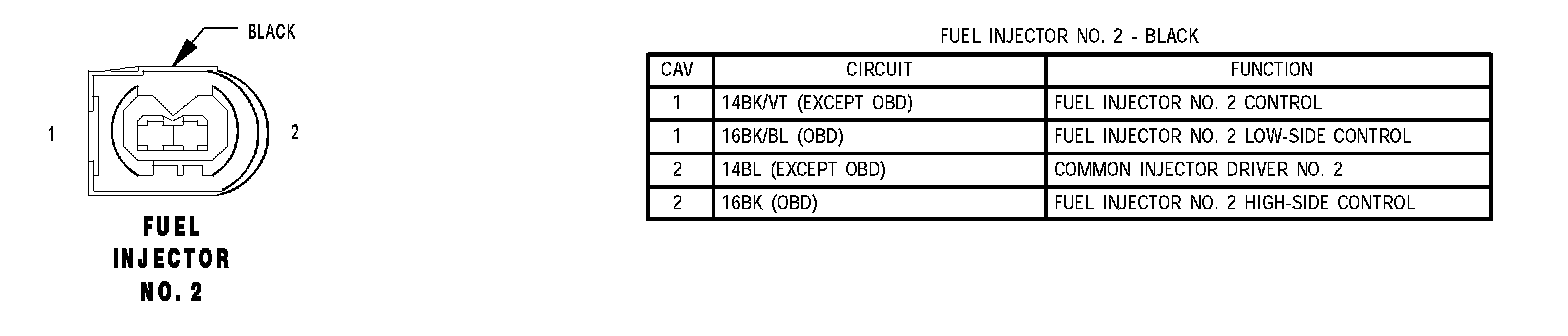

Fuel Injector No.2:

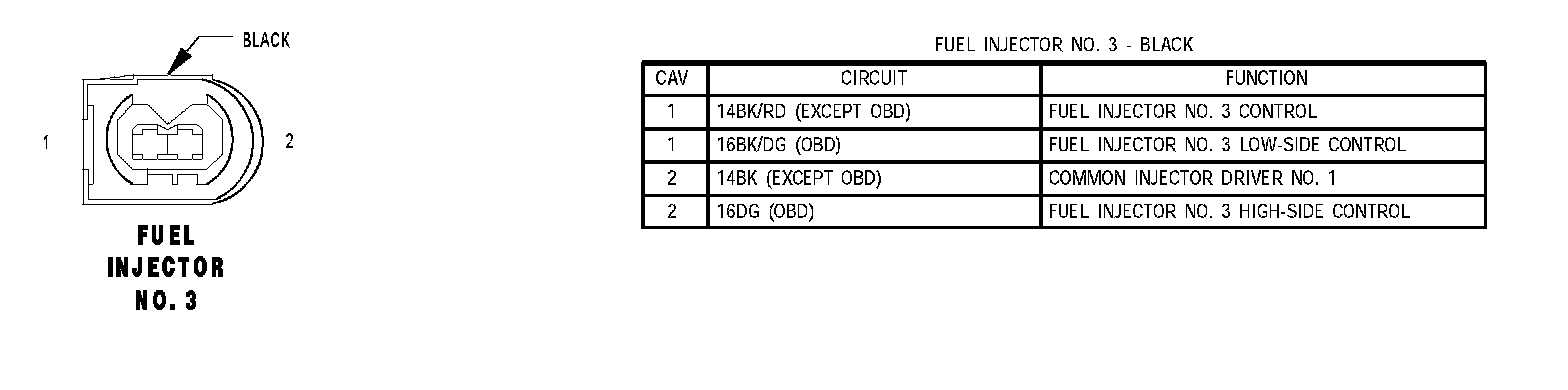

Fuel Injector No.3:

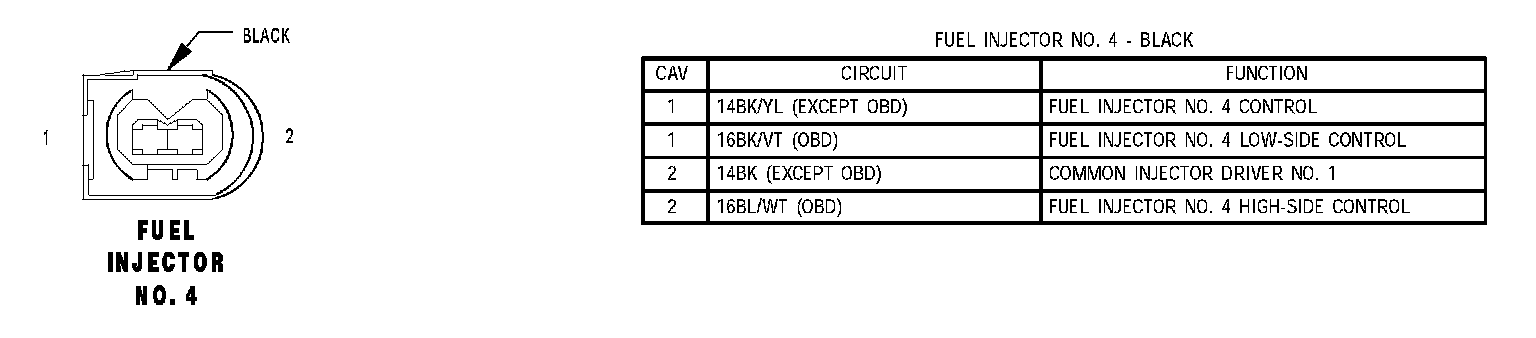

Fuel Injector No.4:

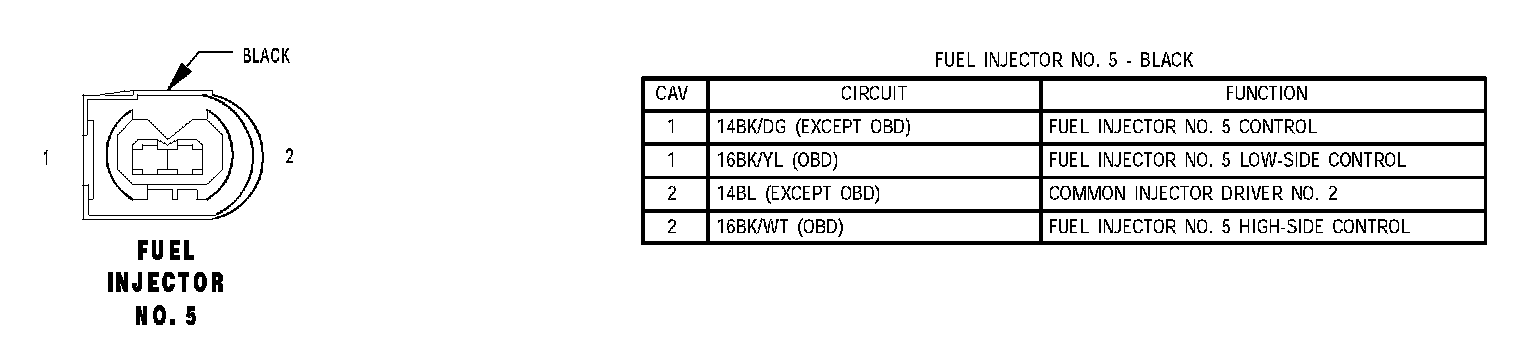

Fuel Injector No.5:
