Home >> Freightliner Truck >> 2004 >> Sprinter 3500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Tail Lamp

Tail Lamp

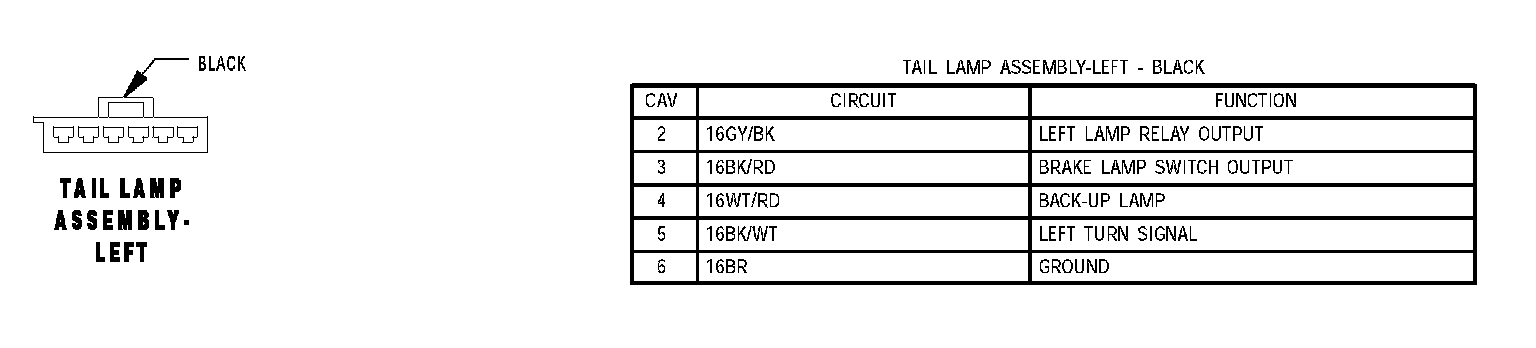

Tail Lamp Assembly-Left:

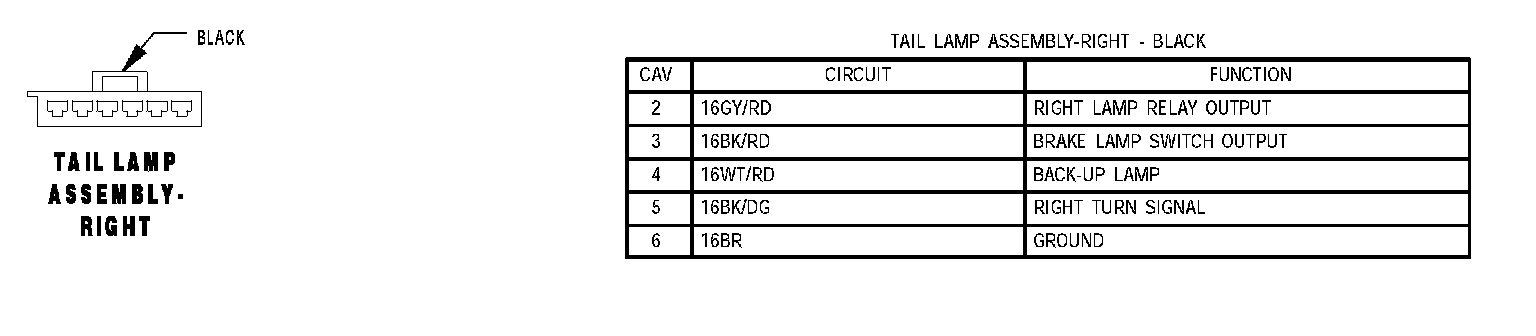

Tail Lamp Assembly-Right:
