System Diagram

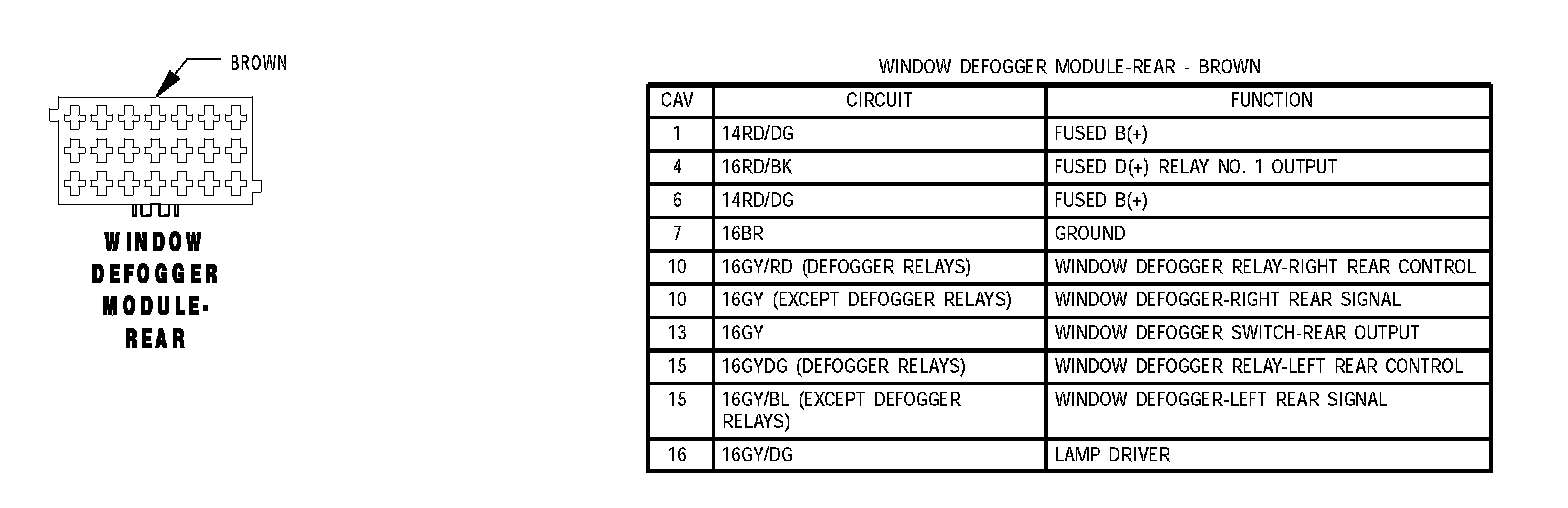

Window Defogger Module-Rear:

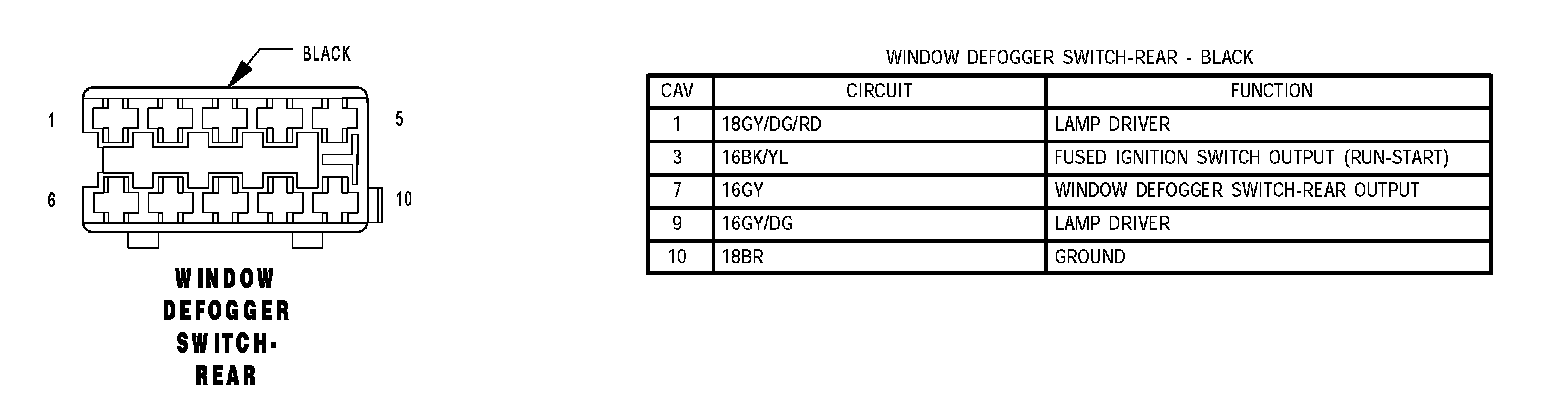

Window Defogger Switch-Rear:



Window Defogger-Left Rear:

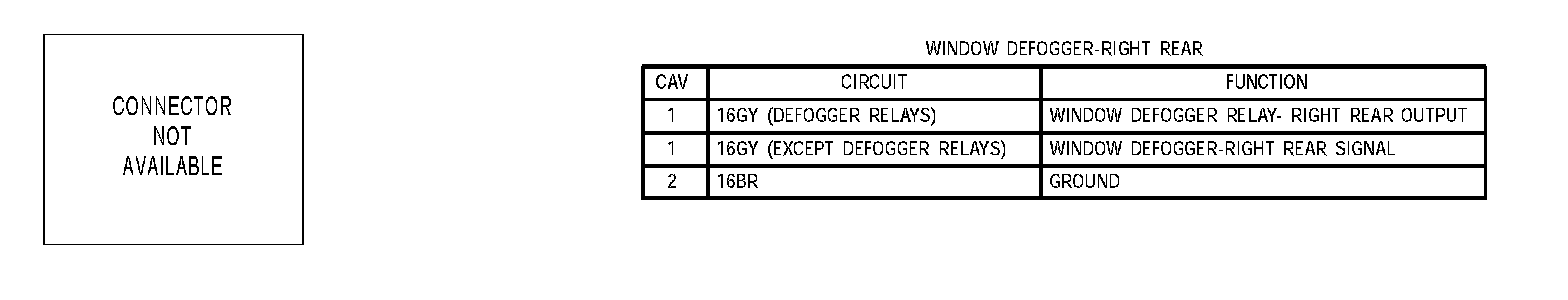

Window Defogger-Right Rear:
