DRBIII Error Messages and Blank Screen

DRBIII ERROR MESSAGES





Under normal operation, the DRBIII will display one of only two error messages:
* User - Requested WARM Boot or User - Requested COLD Boot.

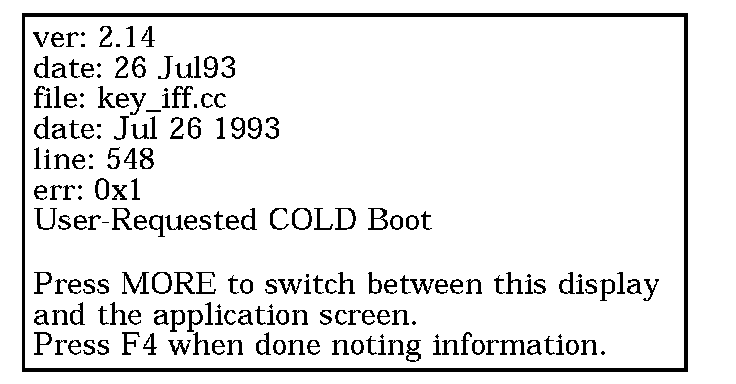

If the DRBIII should display any other error message, record the entire display and call the STAR Center for information and assistance. This is a sample of such an error message display:
