Checking the Fuel Pressure Solenoid Circuits

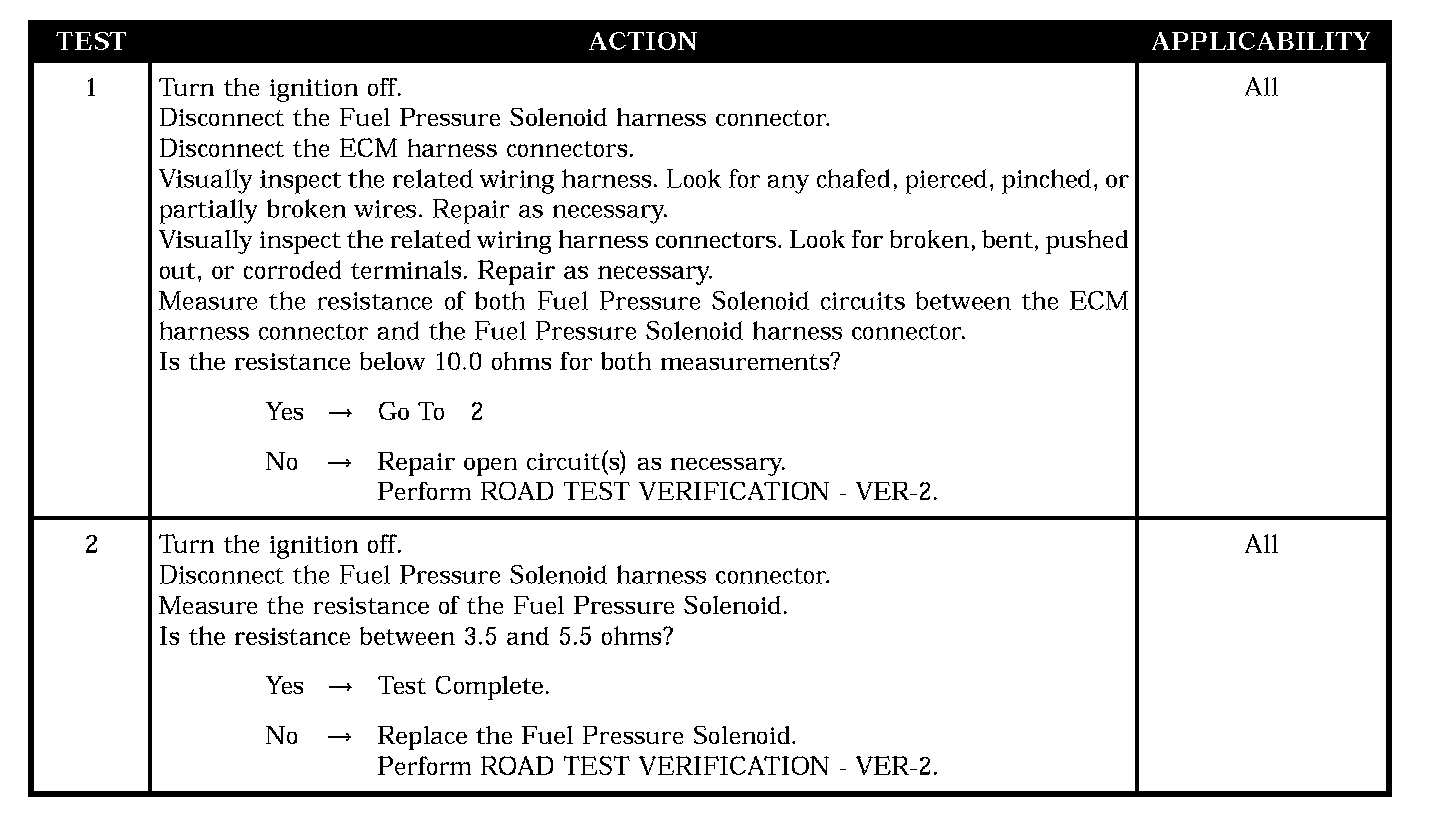

Test 1 - 2:

SYMPTOM
CHECKING THE FUEL PRESSURE SOLENOID CIRCUITS

POSSIBLE CAUSES
- Fuel pressure solenoid resistance
- Open circuits
