Home >> Freightliner Truck >> 2004 >> Sprinter 2500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> Heating and Air Conditioning >> Specifications

Heating and Air Conditioning: Specifications

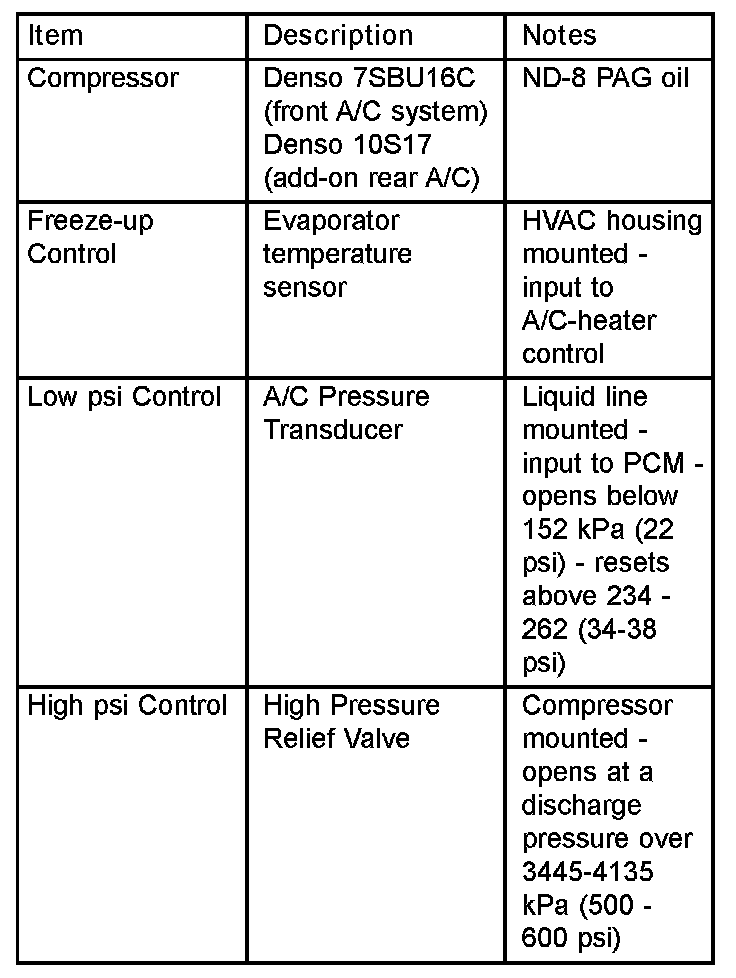

A/C System Part 1:

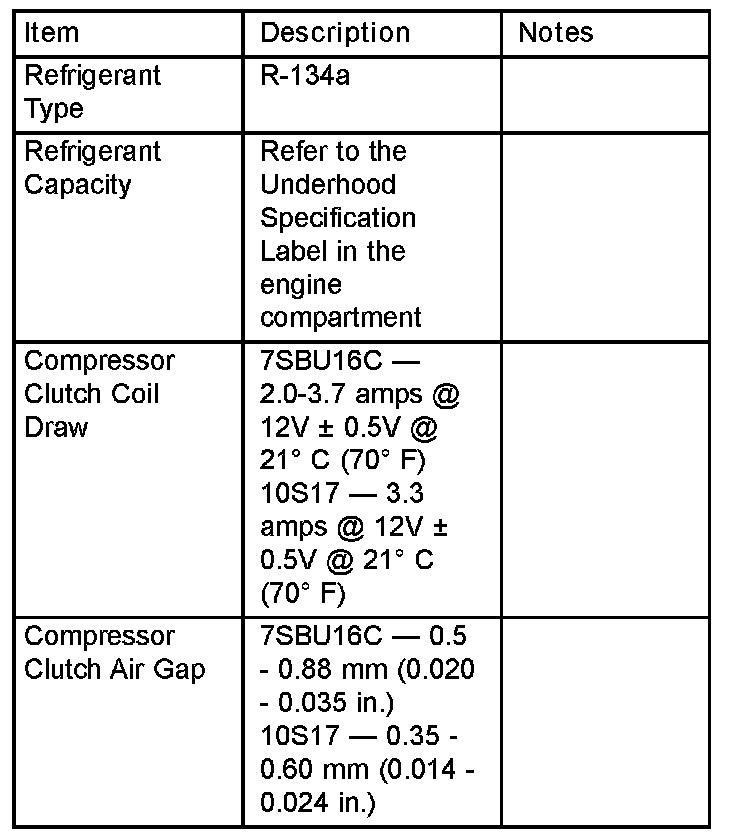

A/C System Part 2:

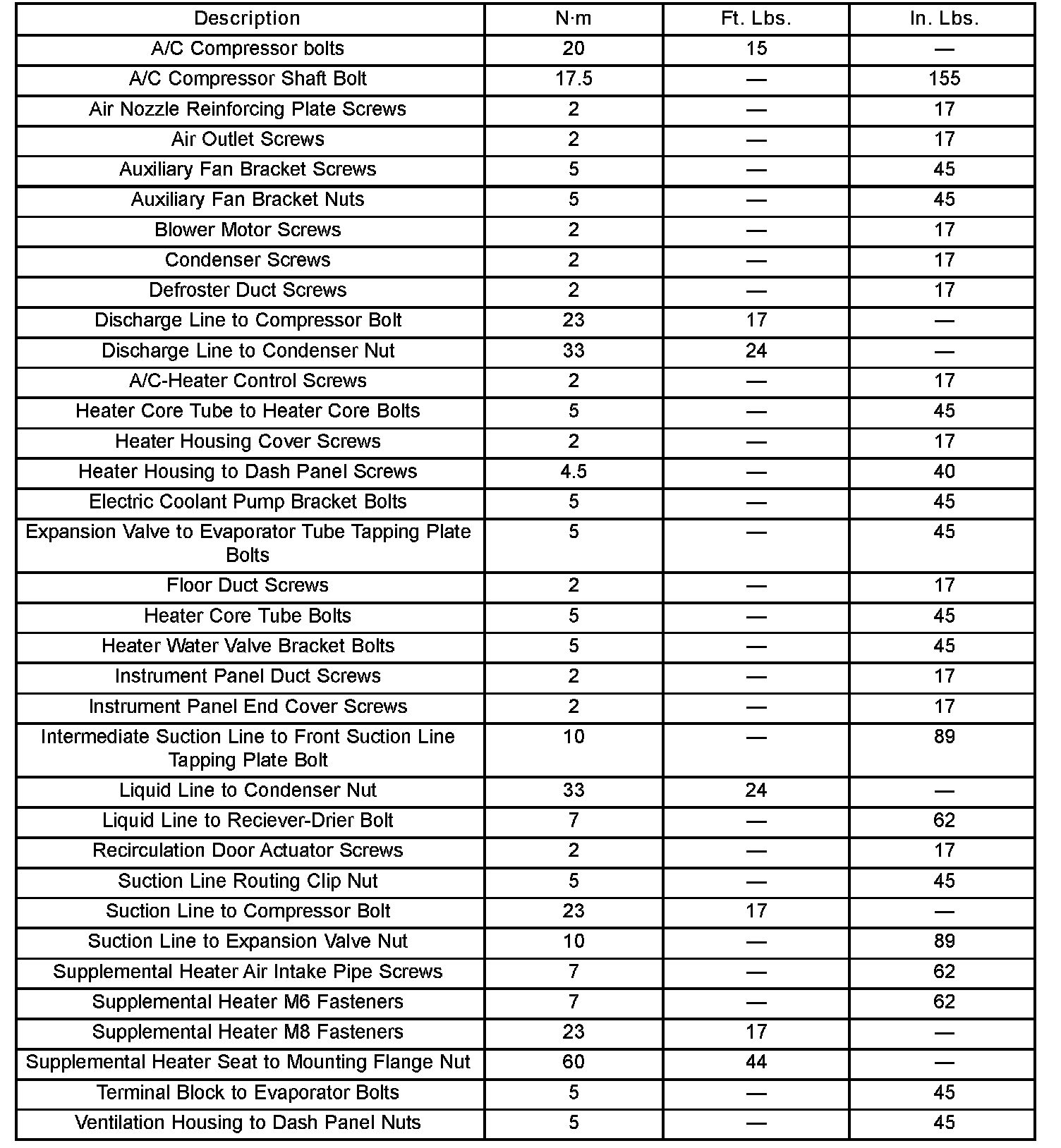

Fastener Torque:
