Ultrasonic Sensor, Antitheft

Intrusion Sensor No.1:

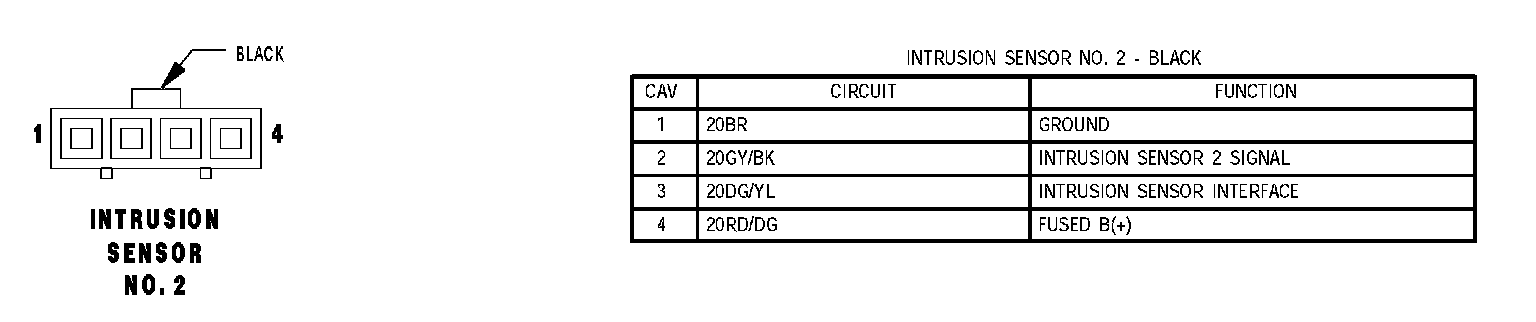

Intrusion Sensor No.2:

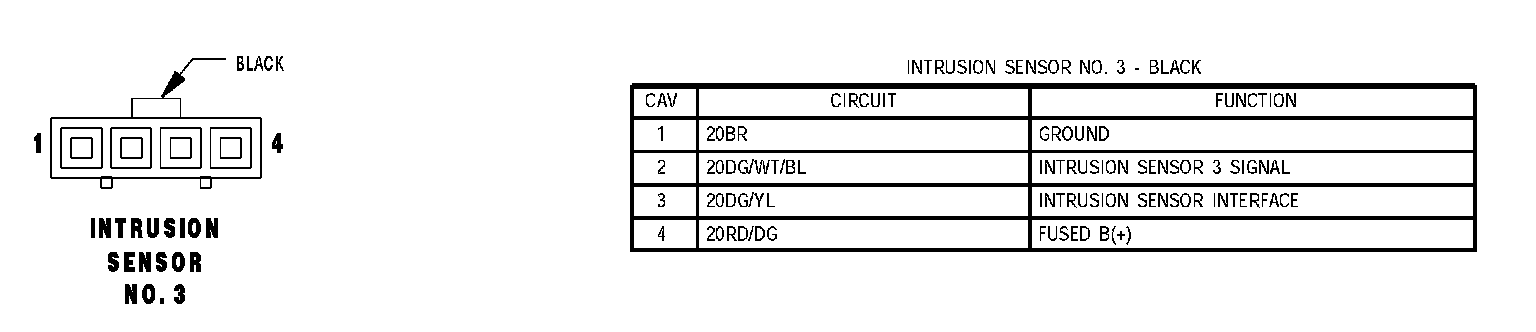

Intrusion Sensor No.3:

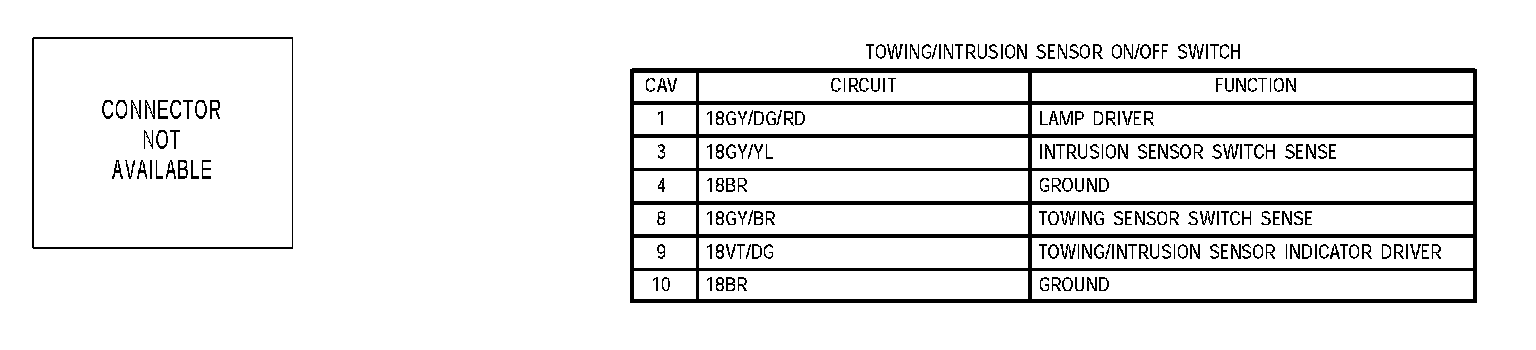

Towing/Intrusion Sensor On/Off Switch:
