Power Window Switch: Diagrams

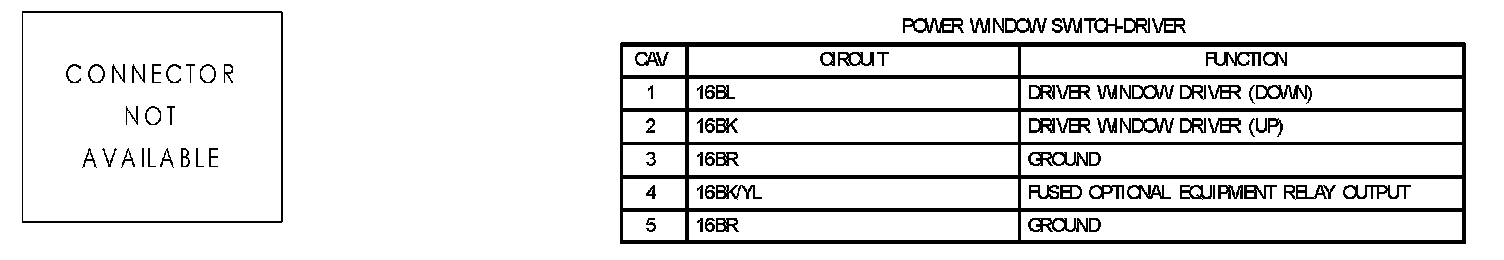

Power Window Switch-Driver:

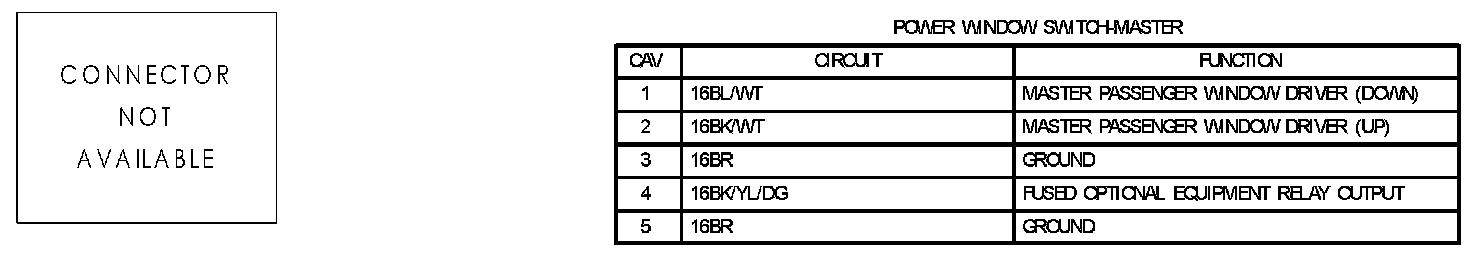

Power Window Switch-Master:

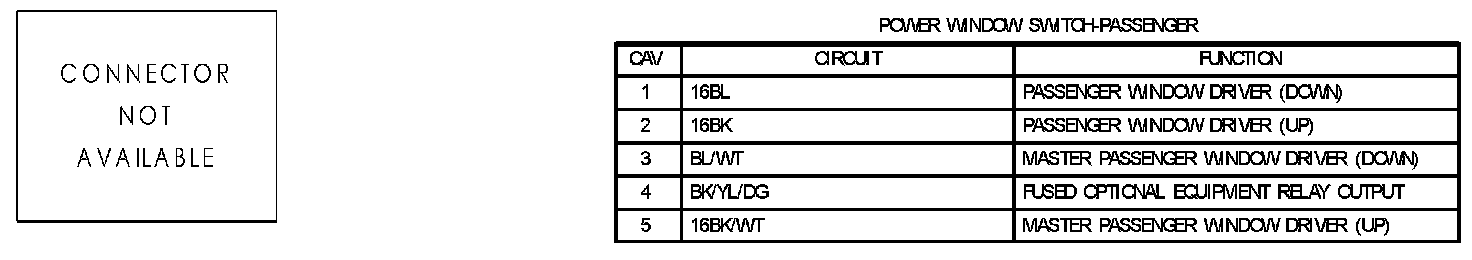

Power Window Switch-Passenger:
