Water In Fuel Sensor: Service and Repair

Draining Water From Fuel Filter

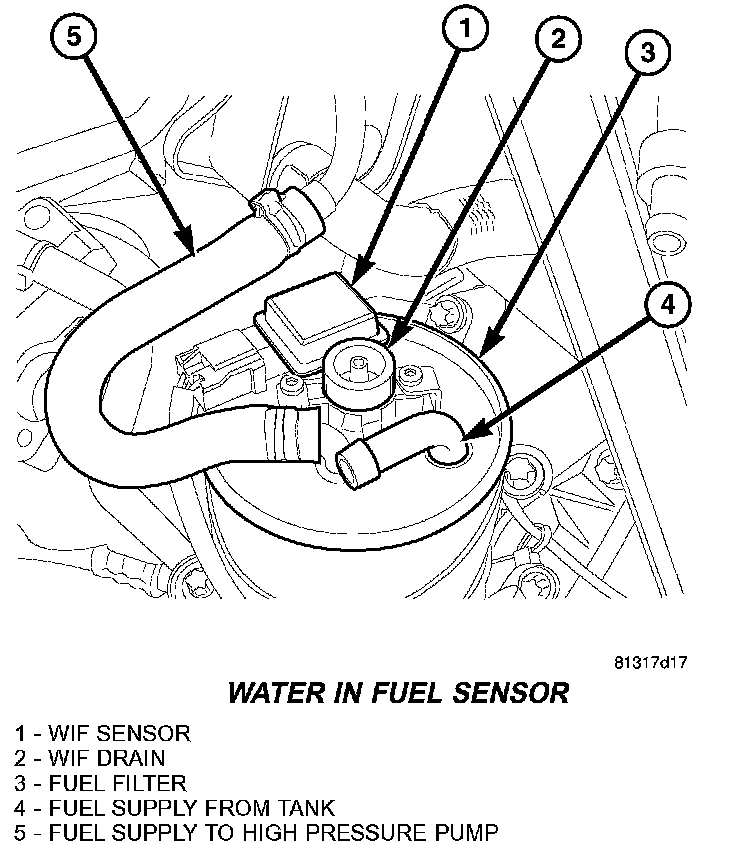

Water In Fuel Sensor:





Connect a hose to the Water in Fuel (WIF) drain and place it in a clearly marked and suitable container. Open the WIF drain by turning counterclockwise. Turn the ignition key on for 20 seconds. Repeat the procedure until all water is removed, close the drain and remove the hose.
