Disconnecting and Connecting Fuel Lines

NOTE: Capture and store any fuel spillage in appropriately marked containers.

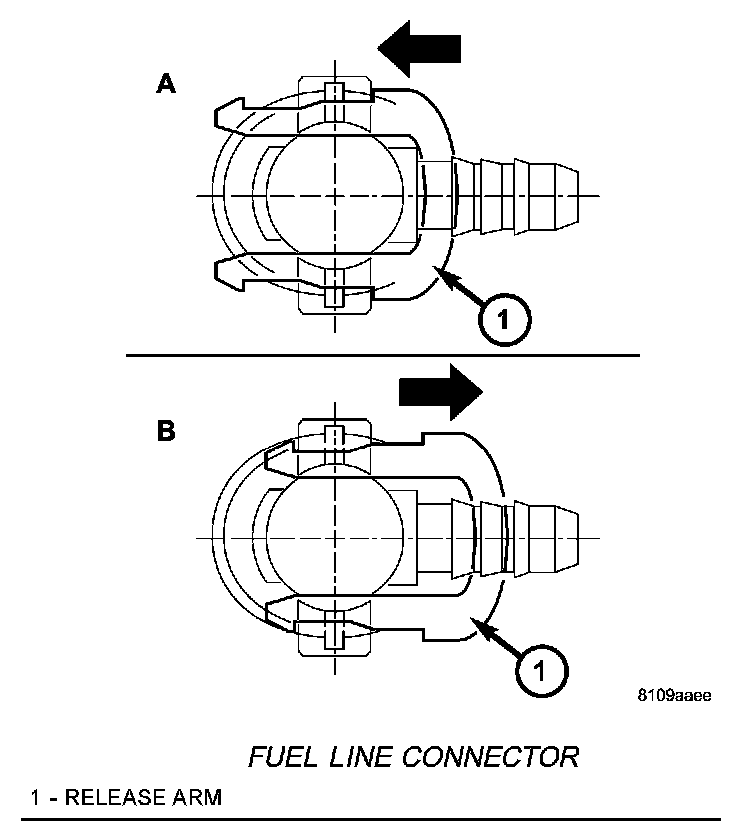

Fuel Line Connector:

1. Disconnect negative battery cable.
2. Push release arm to release position A, as far as the stop (arrow).
3. Disconnect fuel line.
4. Immediately return the release arm back to the assembly position, as far as the stop.
The release arm must not be left in the release position for a long time. Connectors left in the release position for lengthy periods may leak and must be replaced.
5. Insert connector into connection in assembly position (B).
6. Ensure that the connectors are firmly seated and free of leaks.
