Backup Lamp CKT Short to Ground
Backup Lamp CKT Short to Ground
BACKUP LAMP CKT SHORT TO GROUND

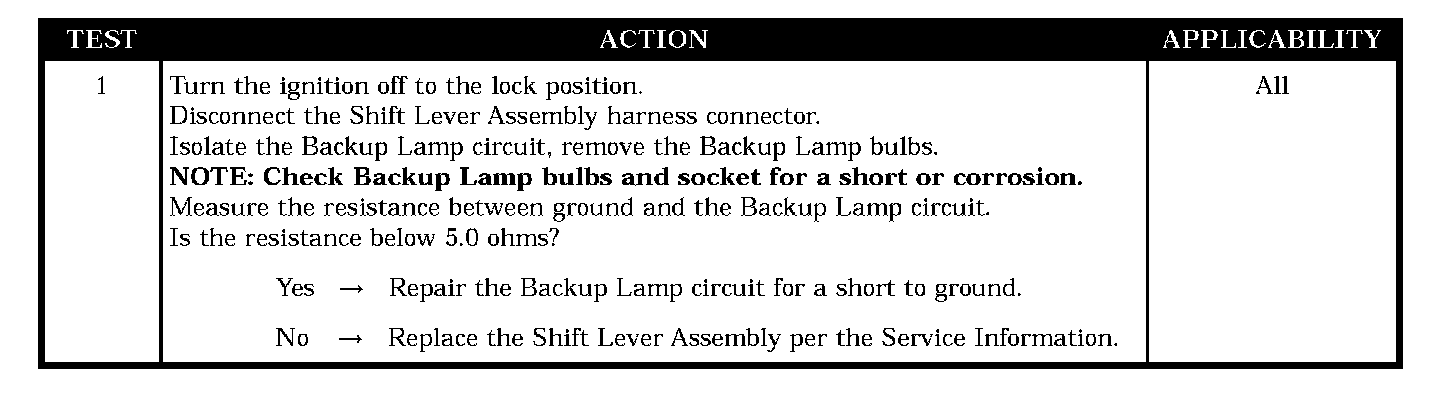

Test 1:
POSSIBLE CAUSES
-
BACKUP LAMP CIRCUIT SHORT TO GROUND
-
SHIFT LEVER ASSEMBLY
