Piston: Description and Operation
PISTON & CONNECTING RODDESCRIPTION

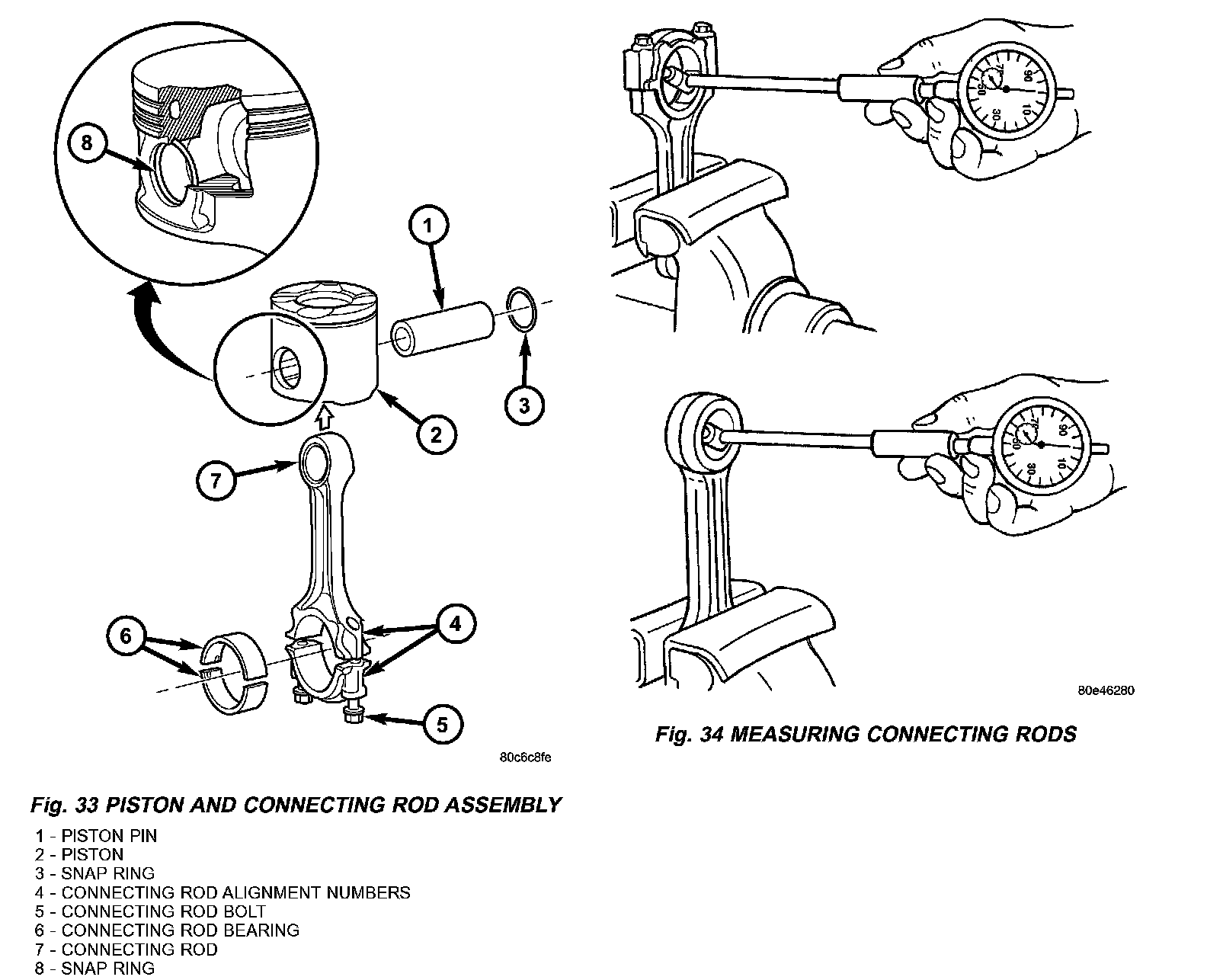

The pistons are of a free floating design. Oil jets in the engine block lubricate and cool the piston and pin assembly. The connecting rods have a pressed in place wrist pin bushing which is lubricated by the oil jets (Fig. 33).
