Sliding Door Latch: Service and Repair

Remove/install sliding door lock

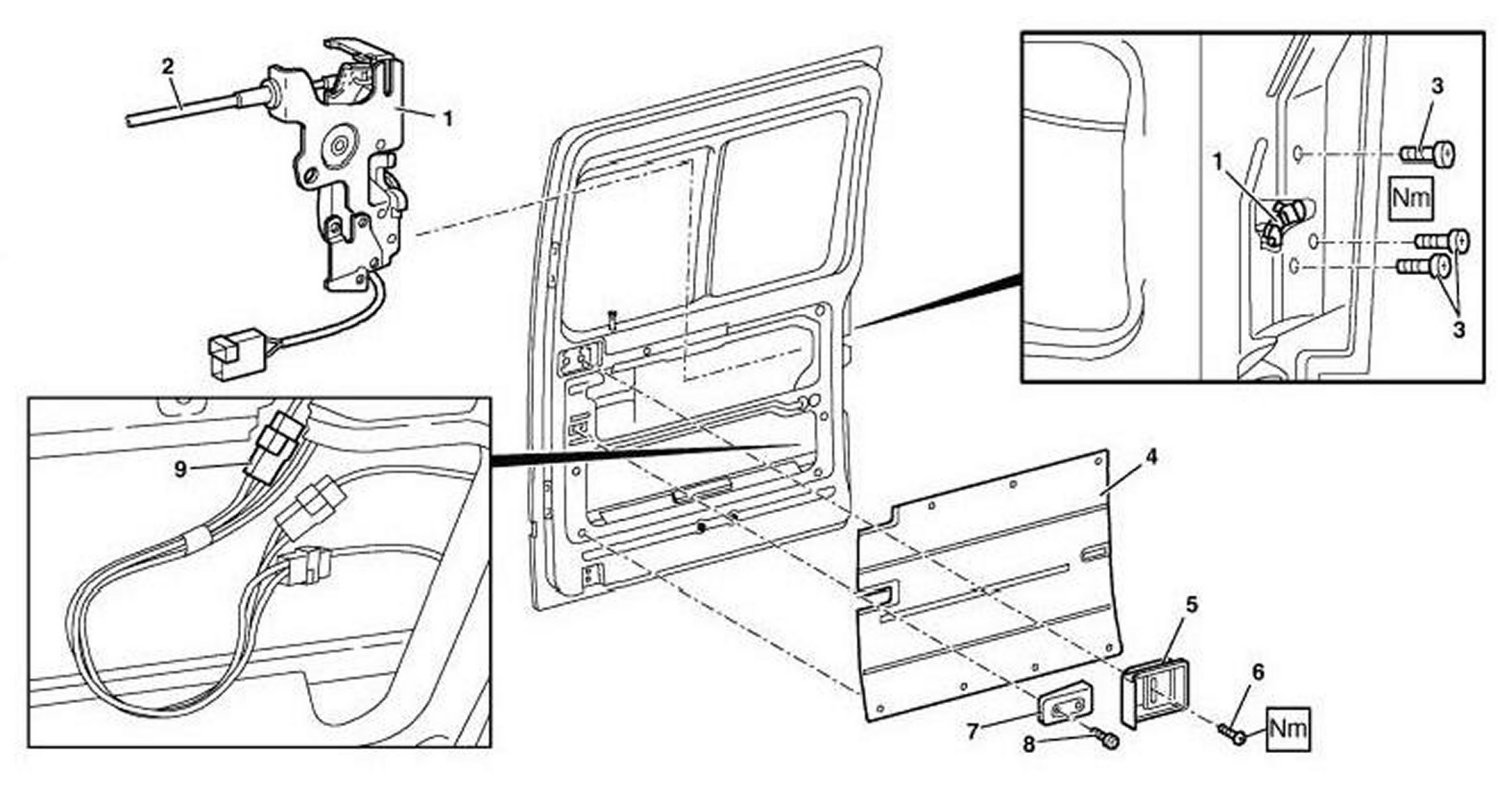

Remove/install Sliding Door Lock:

1. Door lock
2. Release cable
3. Bolt
4. Door paneling
5. Inside door opener
6. Cross-head screw
7. Sliding door stop
8. Bolt
9. Connector

Remove/Install

1. Remove sliding door
2. Remove sliding door stop (7)
3. Remove inside door opener
4.1. Remove door paneling (4) on sliding door
4.2. Remove insulating element for sliding door
5. Disconnect connector (9) for rotary tumbler switch
6. Unscrew bolts (3) on door lock (1)
7. Remove door lock (1) from sliding door.
8. Detach release cable (2) at door lock (1).
9. Install in the reverse order
