Center Sliding Door Roller: Service and Repair

Remove/install sliding door center carriage

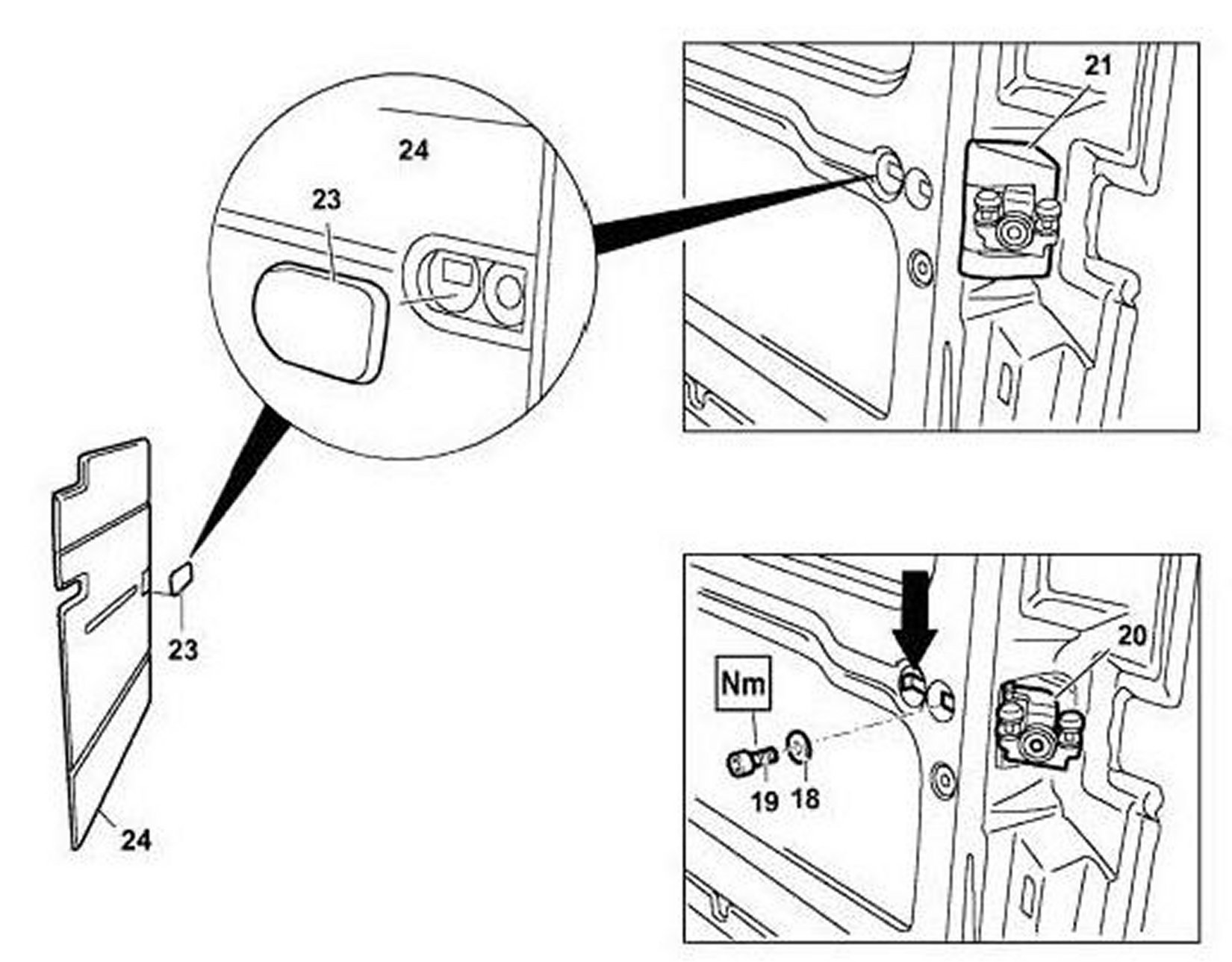

Remove/install Sliding Door Center Carriage:

18. Washer
19. Hexagon socket bolt
20. Carriage, center
21. Rubber cover
23. Cover
24. Panel

Remove/Install

1. Remove cover (23).
2. Lift rubber cover (21) of center carriage.
3. Mark horizontal position of carriage (20) (arrow) and remove carriage. Installation: Check carriage and grease.
4. Install in the reverse order
