Air Bag(s) Arming and Disarming: Service and Repair



Supplemental Restraint System (SRS) Depowering and Repowering

Depowering

WARNING:
- Always wear eye protection when servicing a vehicle. Failure to follow this instruction may result in serious personal injury.
- Never probe the electrical connectors on air bag, Safety Canopy(R) or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.
- Do not handle, move or change the original horizontal mounting position of the restraints control module (RCM) while the RCM is connected and the ignition switch is ON. Failure to follow this instruction may result in the accidental deployment of the Safety Canopy(R) and cause serious personal injury or death.
- To reduce the risk of accidental deployment, do not use any memory saver devices. Failure to follow this instruction may result in serious personal injury or death.

NOTE:
- The air bag warning indicator illuminates when the correct RCM fuse is removed and the ignition is ON.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

1. Turn all vehicle accessories OFF.
2. Turn the ignition OFF.
3. At the BCM, located below the LH side of the instrument panel, remove the cover and the RCM fuse 41 (7.5A) from the BCM. For additional information, refer to the Wiring Diagrams manual.
4. Turn the ignition ON and monitor the air bag warning indicator for at least 30 seconds. The air bag warning indicator remains lit continuously (no flashing) if the correct RCM fuse is removed. If the air bag warning indicator is not lit continuously, remove the correct RCM fuse before proceeding.
5. Turn the ignition OFF.

6. WARNING: Always deplete the backup power supply before repairing or installing any new front or side air bag supplemental restraint system (SRS) component and before servicing, removing, installing, adjusting or striking components near the front or side impact sensors or the restraints control module (RCM). Nearby components include doors, instrument panel, console, door latches, strikers, seats and hood latches. Refer to the Description and Operation portion for location of the RCM and impact sensor(s). To deplete the backup power supply energy, disconnect the battery ground cable and wait at least 1 minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped). Failure to follow these instructions may result in serious personal injury or death in the event of an accidental deployment.

Disconnect the battery ground cable and wait at least one minute.

Repowering Procedure

Vehicles With Ignition Switch

1. Turn the ignition from OFF to ON.
2. Install RCM fuse 41 (7.5A) to the BCM and close the cover.

3. WARNING: Make sure no one is in the vehicle and there is nothing blocking or placed in front of any air bag module when the battery is connected. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.

Connect the battery ground cable.

4. Prove out the SRS as follows:
With the ignition OFF, wait 10 seconds, then turn the ignition ON and monitor the air bag warning indicator with the air bag modules installed. The air bag warning indicator illuminates continuously for approximately 6 seconds and then turns off. If a SRS fault is present, the air bag warning indicator will:
- fail to light.
- remain lit continuously.
- flash.

The flashing might not occur until approximately 30 seconds after the ignition has been turned from OFF to ON. This is the time required to complete testing of the SRS. If the air bag warning indicator is inoperative and a SRS fault exists, a chime sounds in a pattern of 5 sets of 5 beeps. If this occurs, diagnose and repair the air bag warning indicator and any SRS faults.

Vehicles With Push-Button Start System

5. Install RCM fuse 41 (7.5A) to the BCM and install the cover.

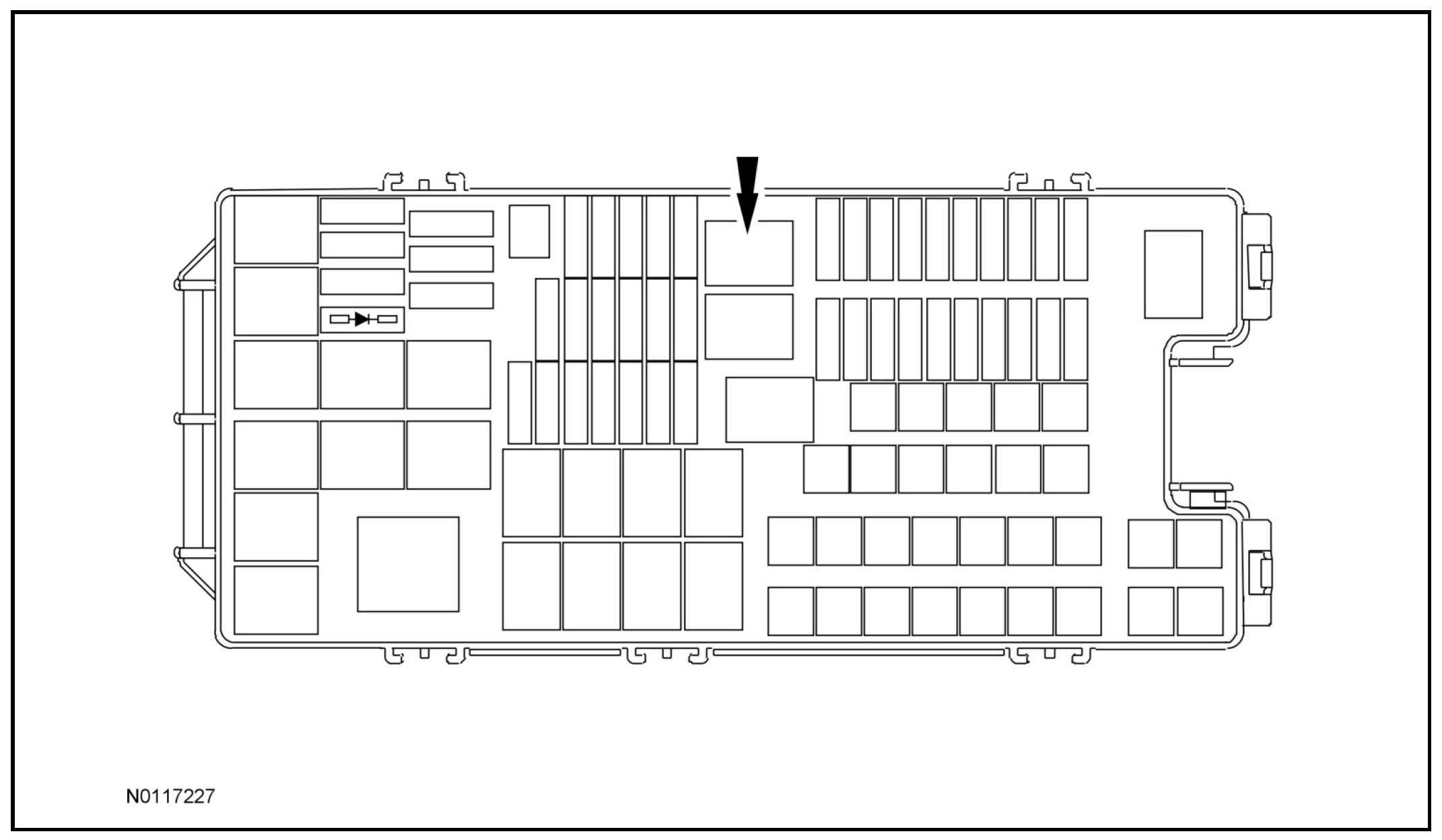

6. Remove BJB relay 88 (run/start relay).

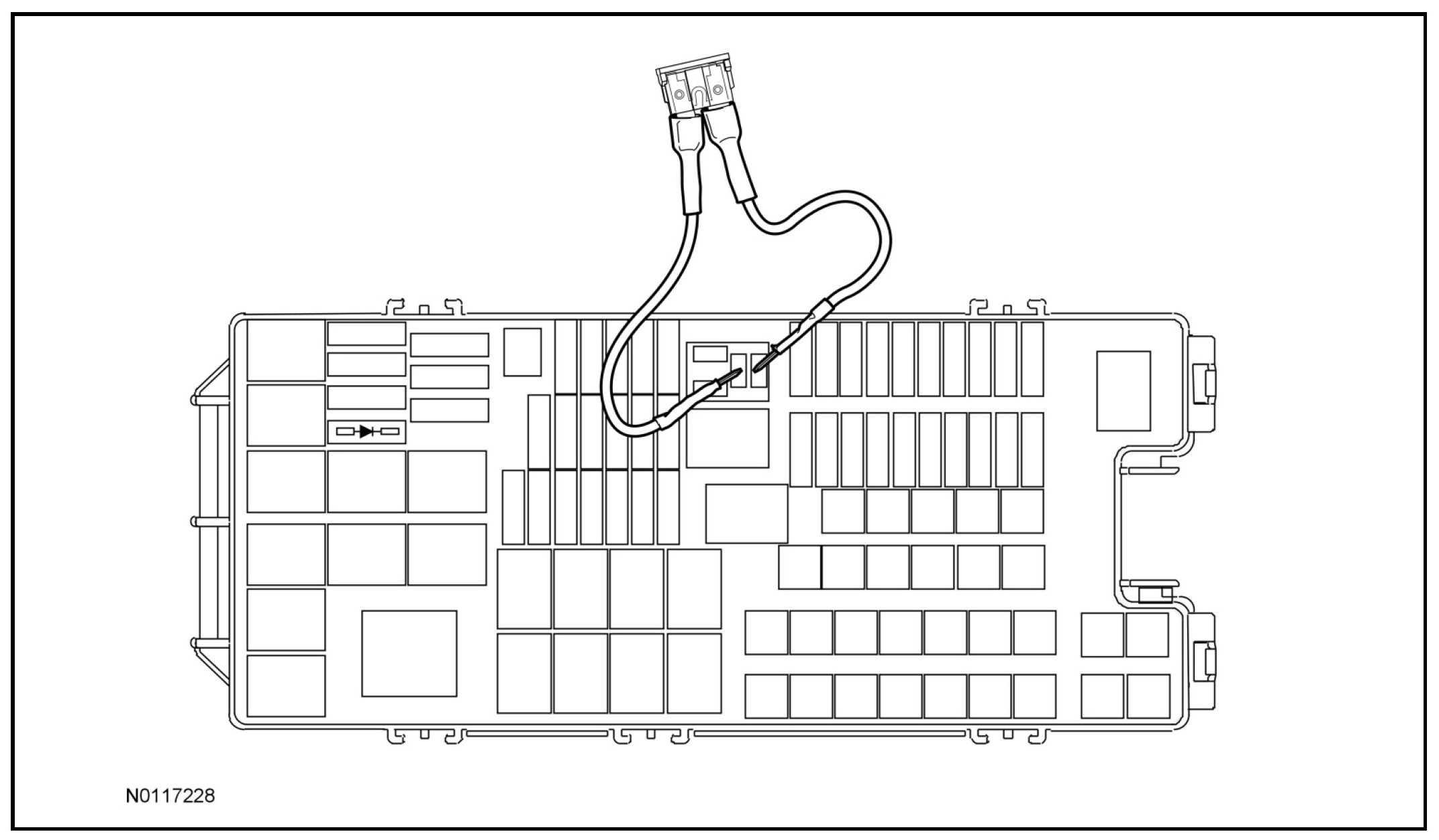

7. Install a 30A fused jumper wire in BJB relay 88 (run/start relay) cavities 3 and 5, as shown.







8. WARNING: Make sure no one is in the vehicle and there is nothing blocking or placed in front of any air bag module when the battery is connected. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.

Connect the battery ground cable.

9. Wait at least 30 seconds, then remove the fused jumper wire from the BJB.
10. Install BJB relay 88 (run/start relay) and cover.
11. Prove out the SRS as follows:
With the ignition OFF, wait 10 seconds, then turn the ignition ON and monitor the air bag warning indicator with the air bag modules installed. The air bag warning indicator illuminates continuously for approximately 6 seconds and then turns off. If a SRS fault is present, the air bag warning indicator will:
- fail to light.
- remain lit continuously.
- flash.

The flashing might not occur until approximately 30 seconds after the ignition has been turned from OFF to ON. This is the time required to complete testing of the SRS. If the air bag warning indicator is inoperative and a SRS fault exists, a chime sounds in a pattern of 5 sets of 5 beeps. If this occurs, diagnose and repair the air bag warning indicator and any SRS faults.

12. Clear all CMDTCs from the RCM and OCSM.
