Home
>>
Ford
>>
2013
>>
Taurus FWD L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Maintenance
>>
Fuses and Circuit Breakers
>>
Fuse
>>
Locations
>>

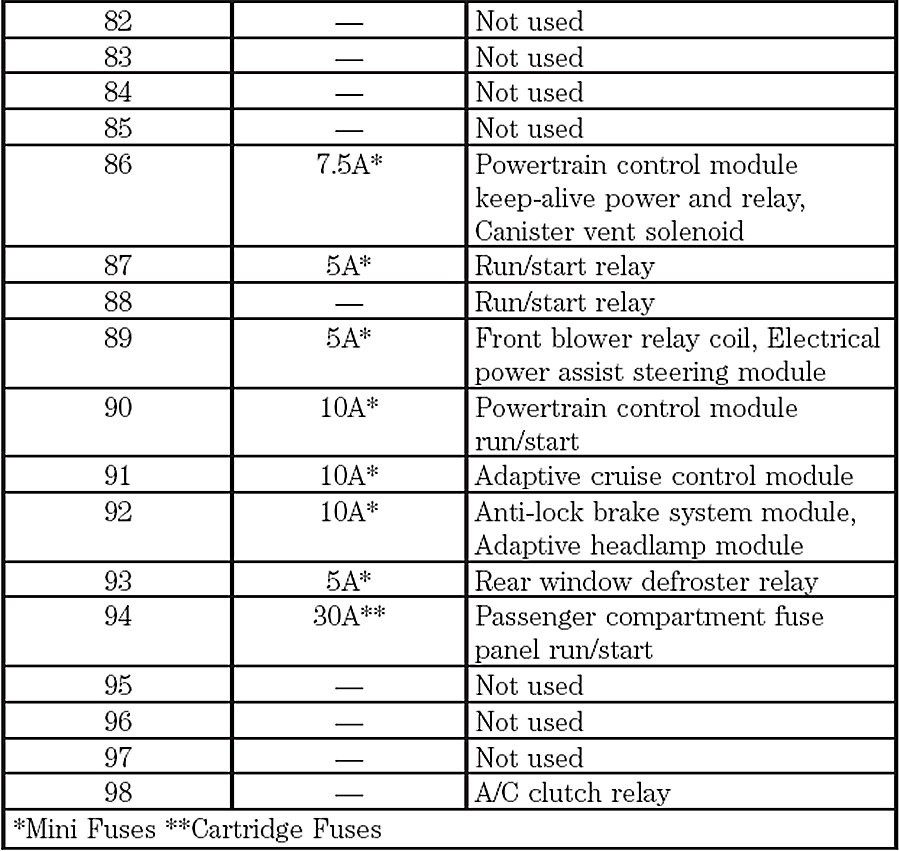

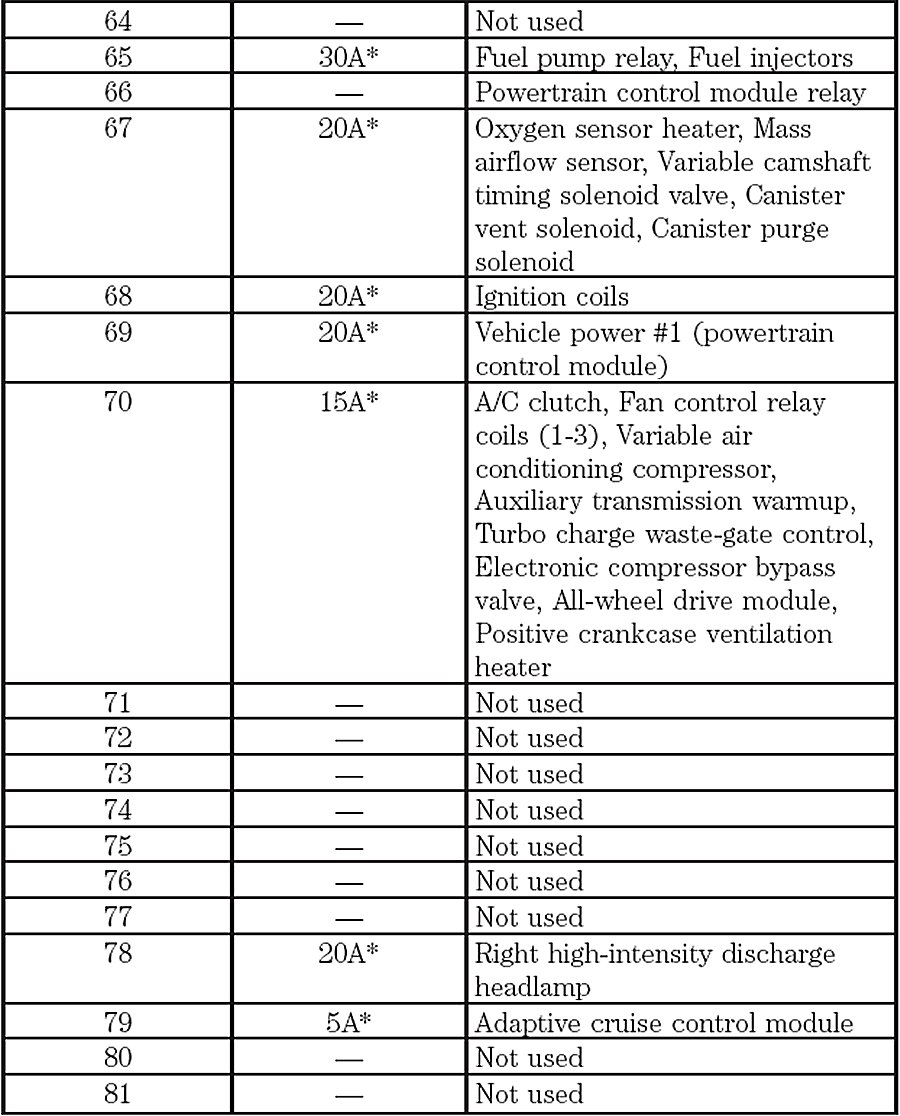

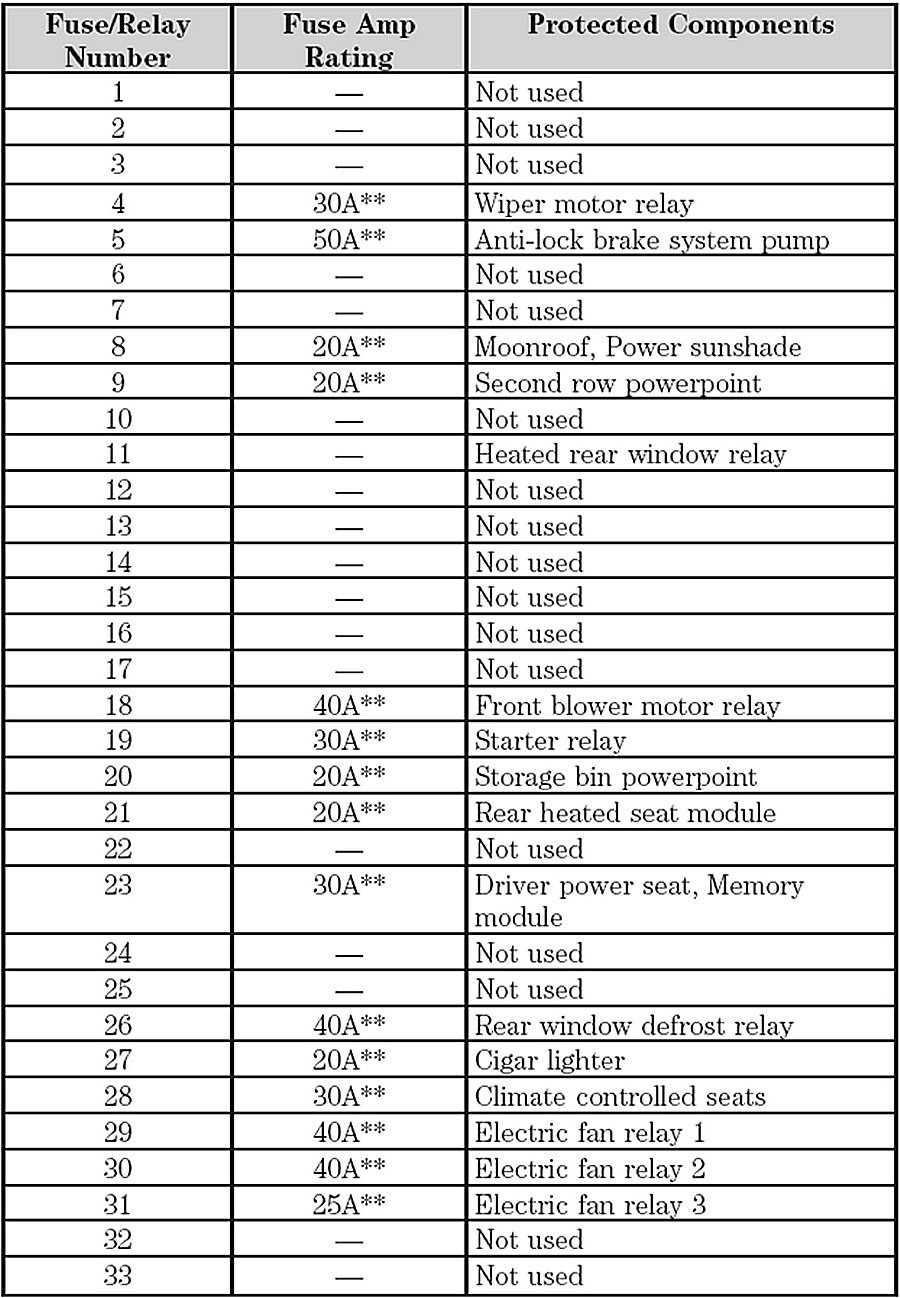

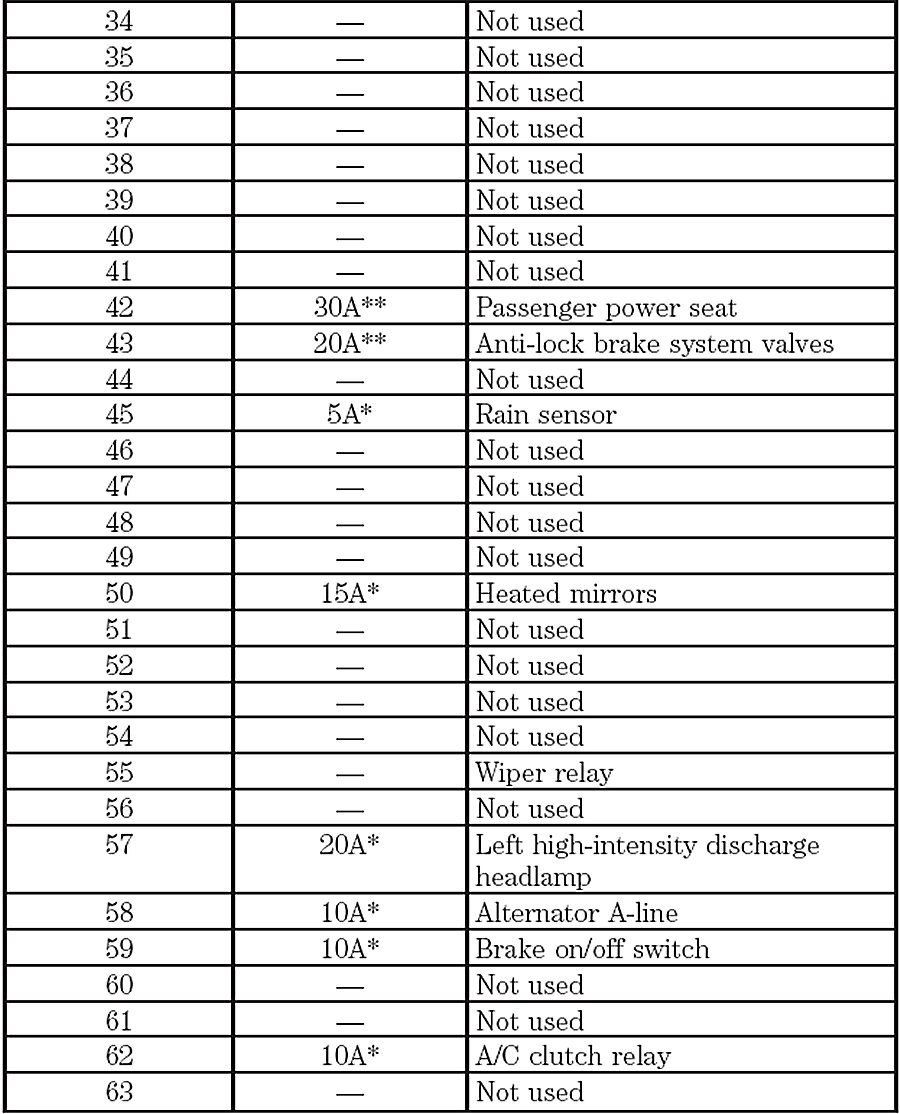

Power Distribution Box
Power Distribution Box
The
Power Distribution Box
is located in the engine compartment.
