Rear Bumper Reinforcement: Service and Repair

Rear Bumper

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions. Service Precautions

2. Remove the rear bumper cover.
Refer to: Rear Bumper Cover. Overhaul

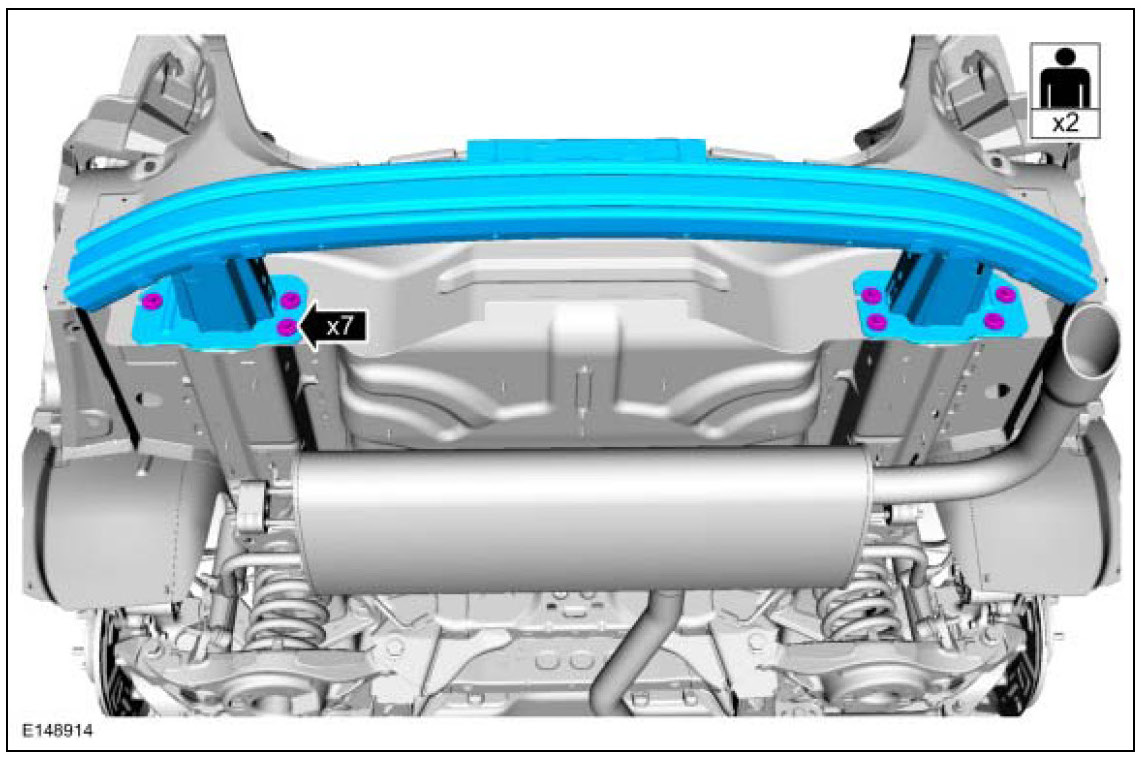

3. Torque: 30 Nm







Installation

1. To install, reverse the removal procedure.
