Fan Motor: Service and Repair

Cooling Fan Motor and Shroud

Special Tool(s) / General Equipment

Hose Clamp Remover/Installer

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Engine Cooling System Health and Safety Precautions. Engine Cooling System Health and Safety Precautions

2. Refer to: Cooling System Draining, Filling and Bleeding. Service and Repair

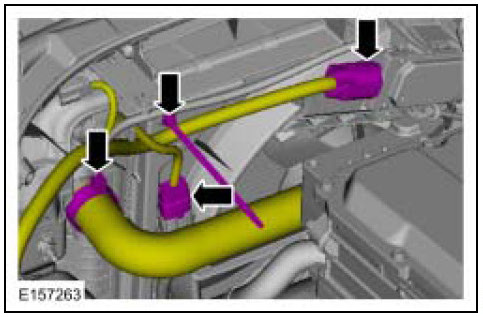

3.

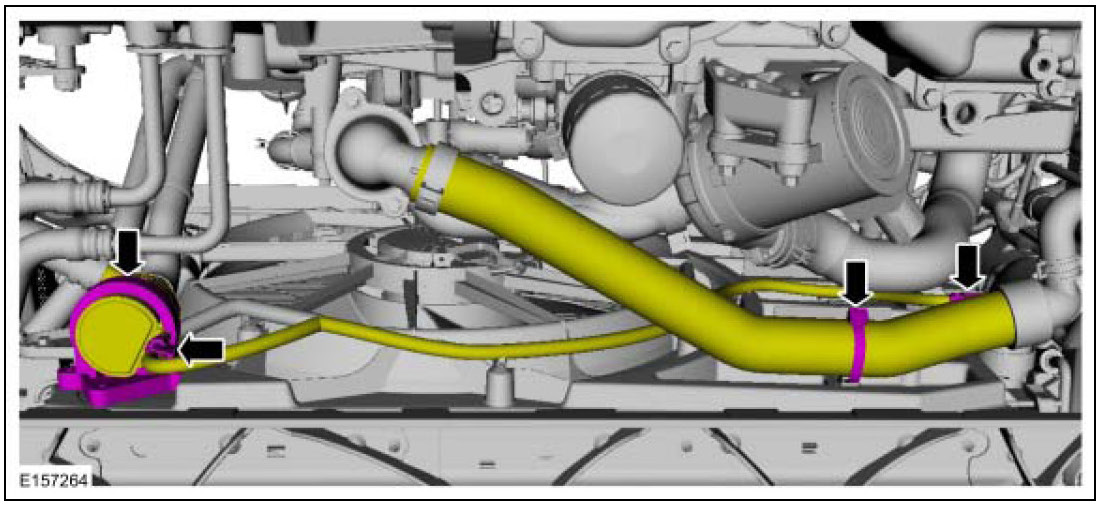

4. General Equipment: Hose Clamp Remover/Installer

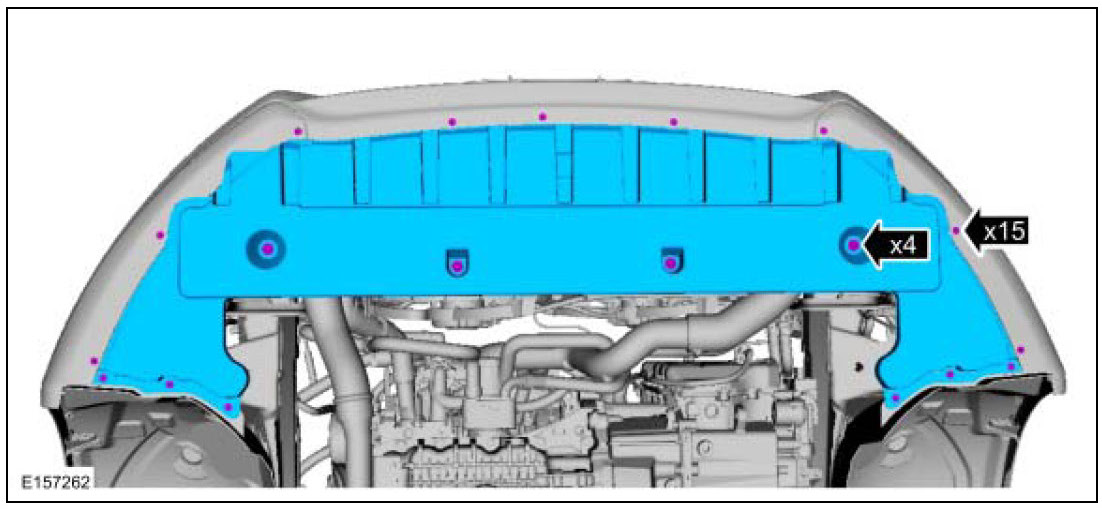

5. Torque: 6 Nm

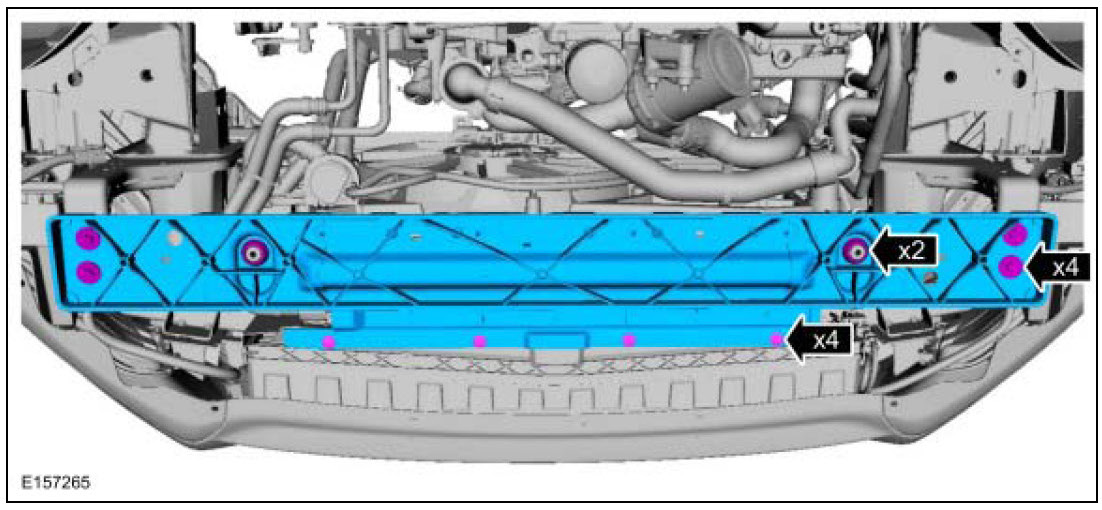

6. Torque: 24 Nm

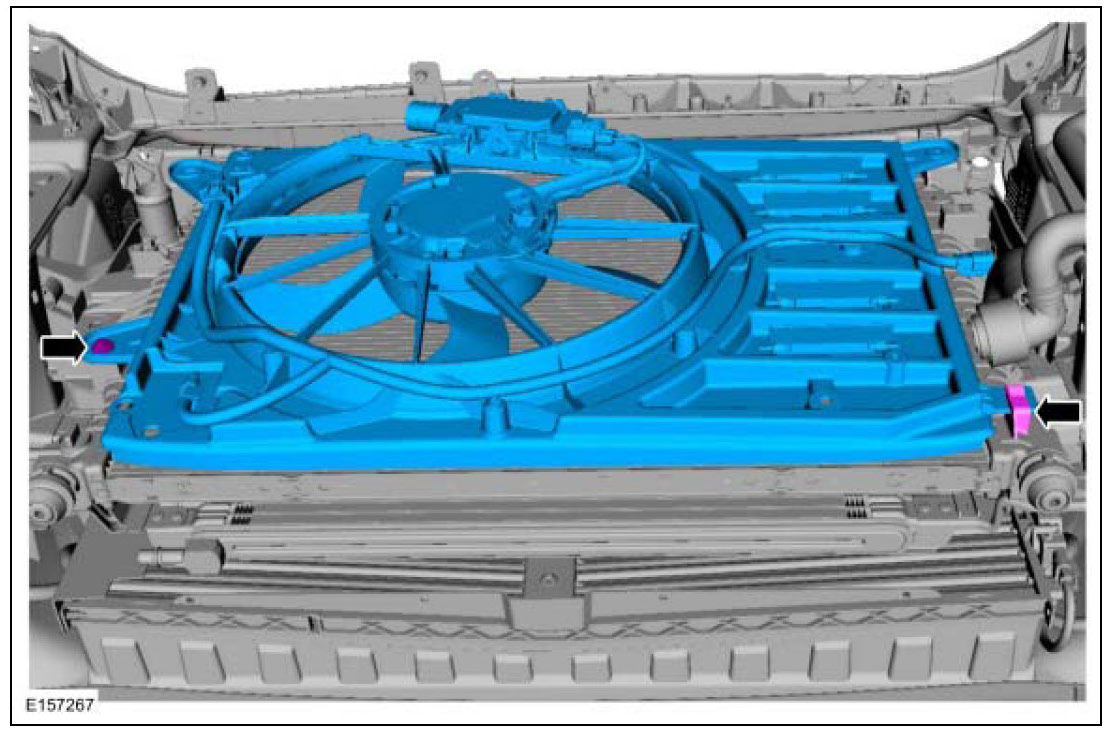

7.







8. Torque: 6 Nm







Installation

1. To install, reverse the removal procedure.
