Radiator Shutter: Service and Repair

Active Grille Shutter

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions. General Service Warnings

2. Refer to: Front Bumper Cover. Removal and Replacement

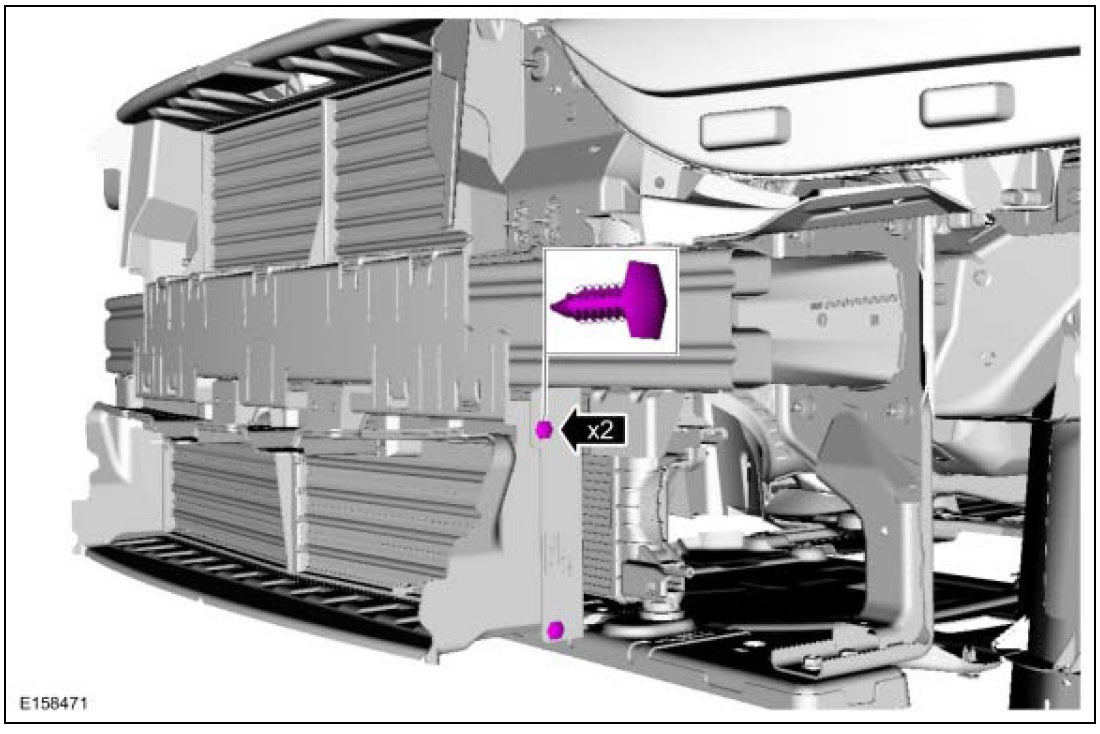

3. If equipped.

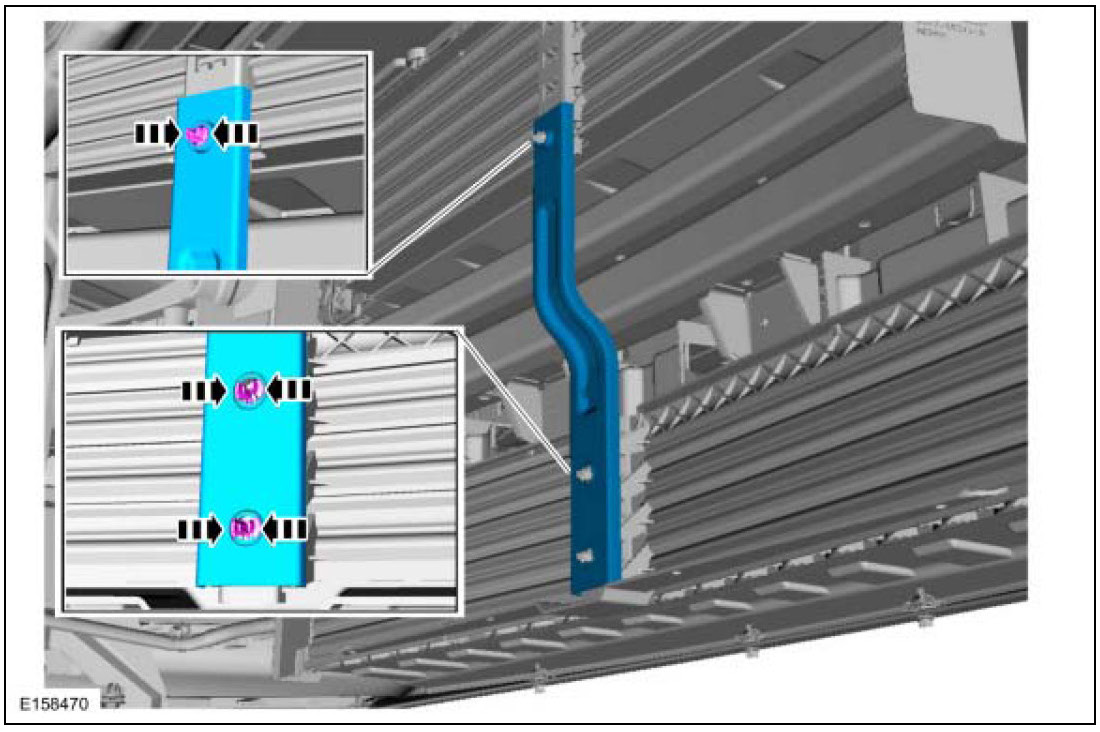

4.
