Steering - Loss Of Power Assist, DTC C102D Set
TSB 12-12-912/21/12
LOSS OF POWER STEERING ASSIST - DTC C102D -
BUILT ON OR BEFORE 11/30/2012
FORD:
2013 Fusion
ISSUE
Some 2013 Fusion vehicles built on or before 11/30/2012 may exhibit a loss of power steering assist with diagnostic trouble code (DTC) C102D stored in the power steering control module (PSCM).
ACTION
Follow the Service Procedure steps to correct the condition.
SERVICE PROCEDURE
Replace the steering gear. Refer to Workshop Manual, Section 211-02.

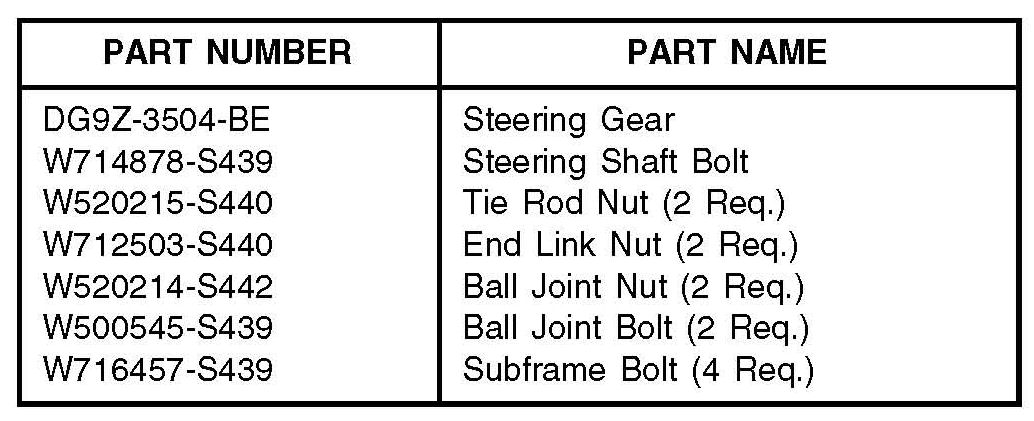

Parts Block
WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.
OPERATION DESCRIPTION TIME
121209A 2013 Fusion: Check DTCs 2.9 Hrs
And Replace The Steering
Gear Includes Time To
Configure Power Steering
Control Module (Do Not
Use With Any Other Labor
Operation Outside This
Article) (Can Be Claimed
With Operation B)
121209B 2013 Fusion: Check 0.6
Alignment And Correct Toe
(Do Not Use With Any
Other Labor Operation
Outside This Article) (Can
Be Claimed With Operation
A)
DEALER CODING
CONDITION
BASIC PART NO. CODE
3504 42
