Passenger Airbag

Passenger Airbag

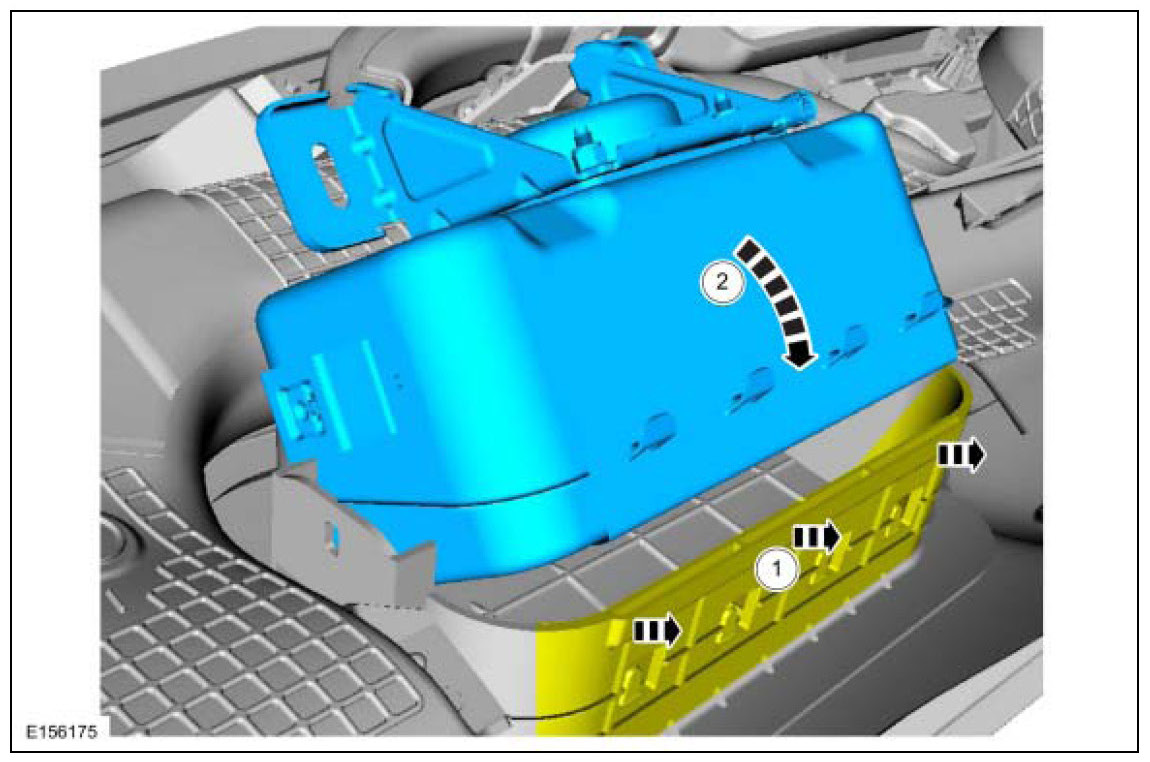

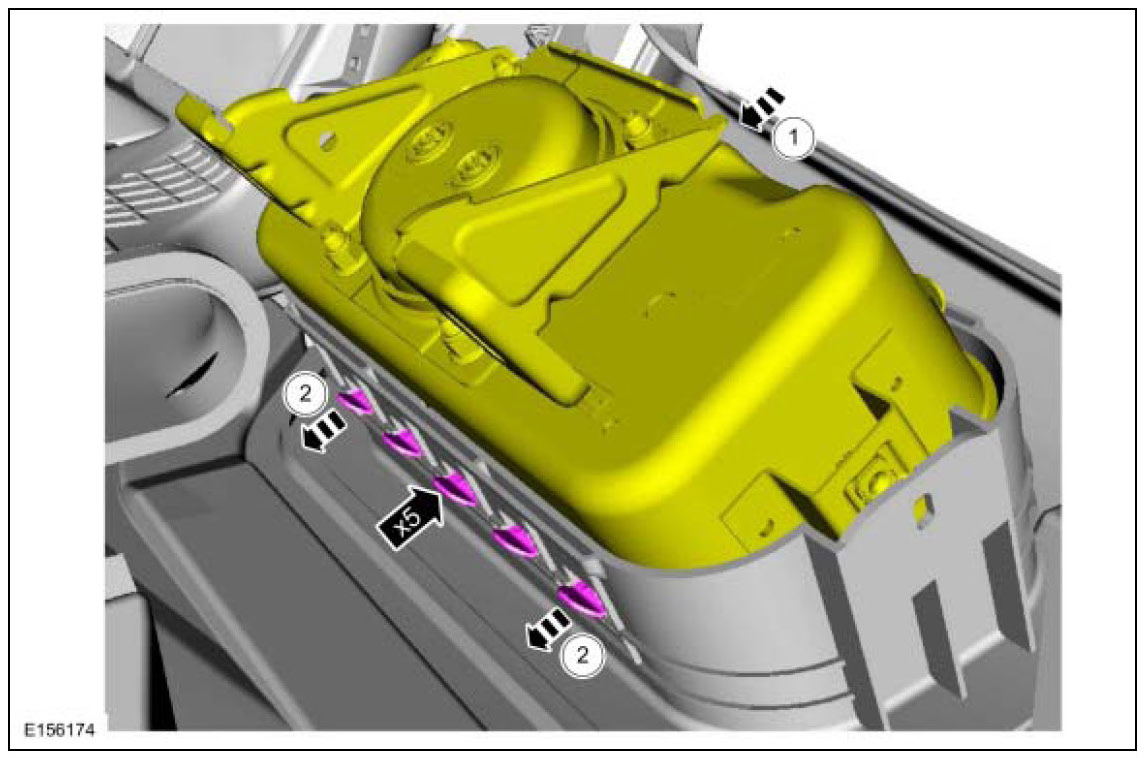

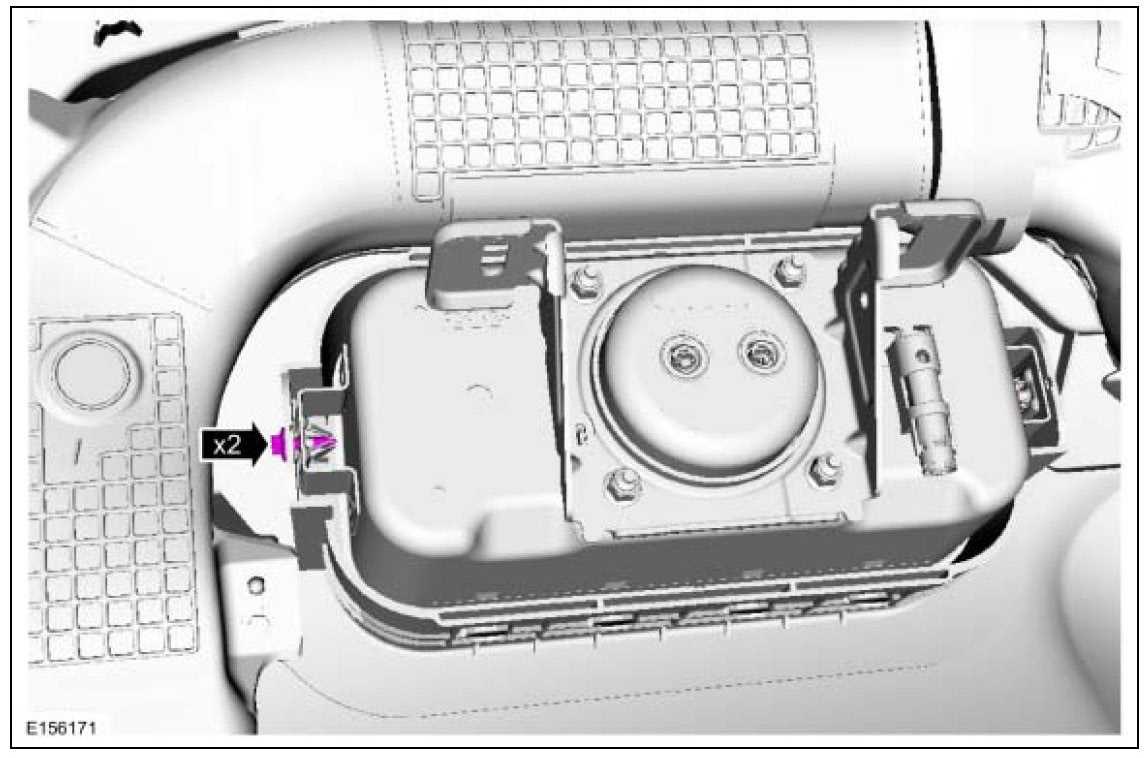

Removal

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions. Service Precautions

2. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

If a SRS fault is present, continue to Step 3. Otherwise, turn the ignition OFF, wait at least one minute and continue to Step 4.

3. Depower the SRS.
Refer to: Supplemental Restraint System (SRS) Depowering and Repowering. Service and Repair

4. Refer to: Instrument Panel Upper Section.
5.

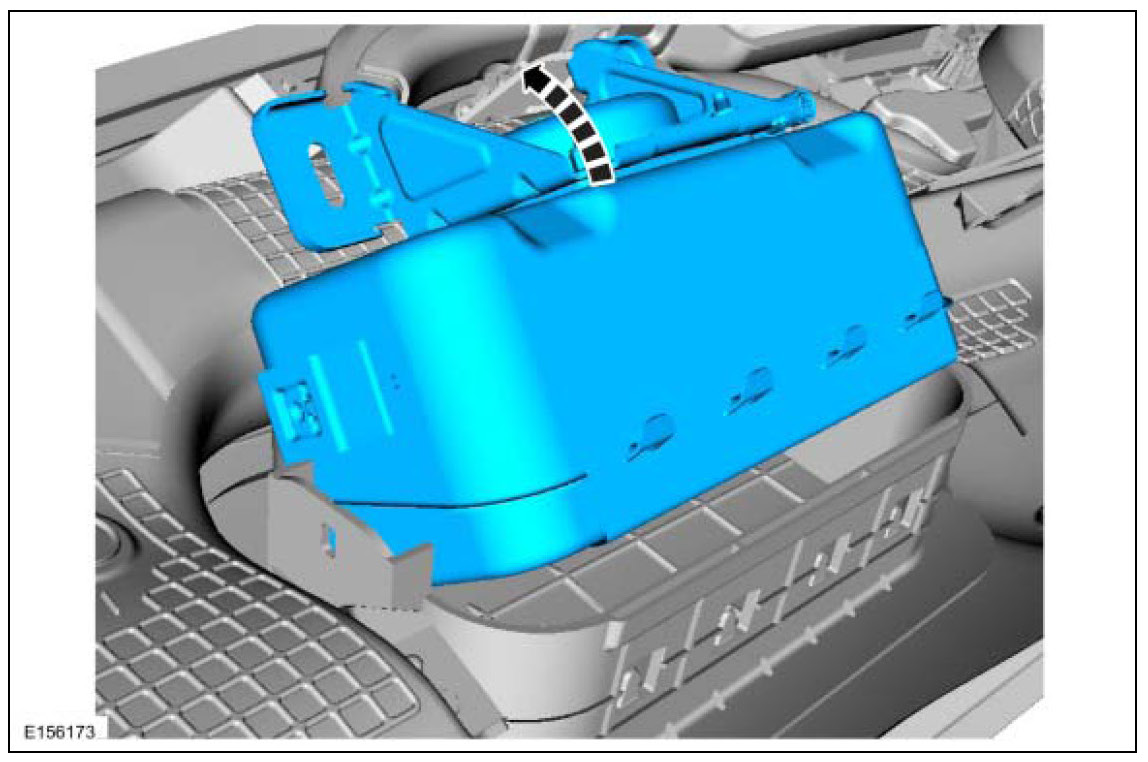

Installation

WARNING: Before installing the passenger air bag module assembly:
- Inspect the passenger air bag module and instrument panel/deployment chute cavity for any damage or foreign material.
- Remove any foreign material from the passenger air bag module and instrument panel/deployment chute cavity. Install new parts if damaged.

Failure to follow these instructions may result in the passenger air bag deploying incorrectly, which increases the risk of serious personal injury or death in a crash.

1.

4. Torque: 1.5 Nm

5. Refer to: Instrument Panel Upper Section.
6. If the SRS was depowered, repower the SRS.
Refer to: Supplemental Restraint System (SRS) Depowering and Repowering. Service and Repair
