Instrument Cluster / Carrier: Locations

INSTRUMENT PANEL CLUSTER (IPC)

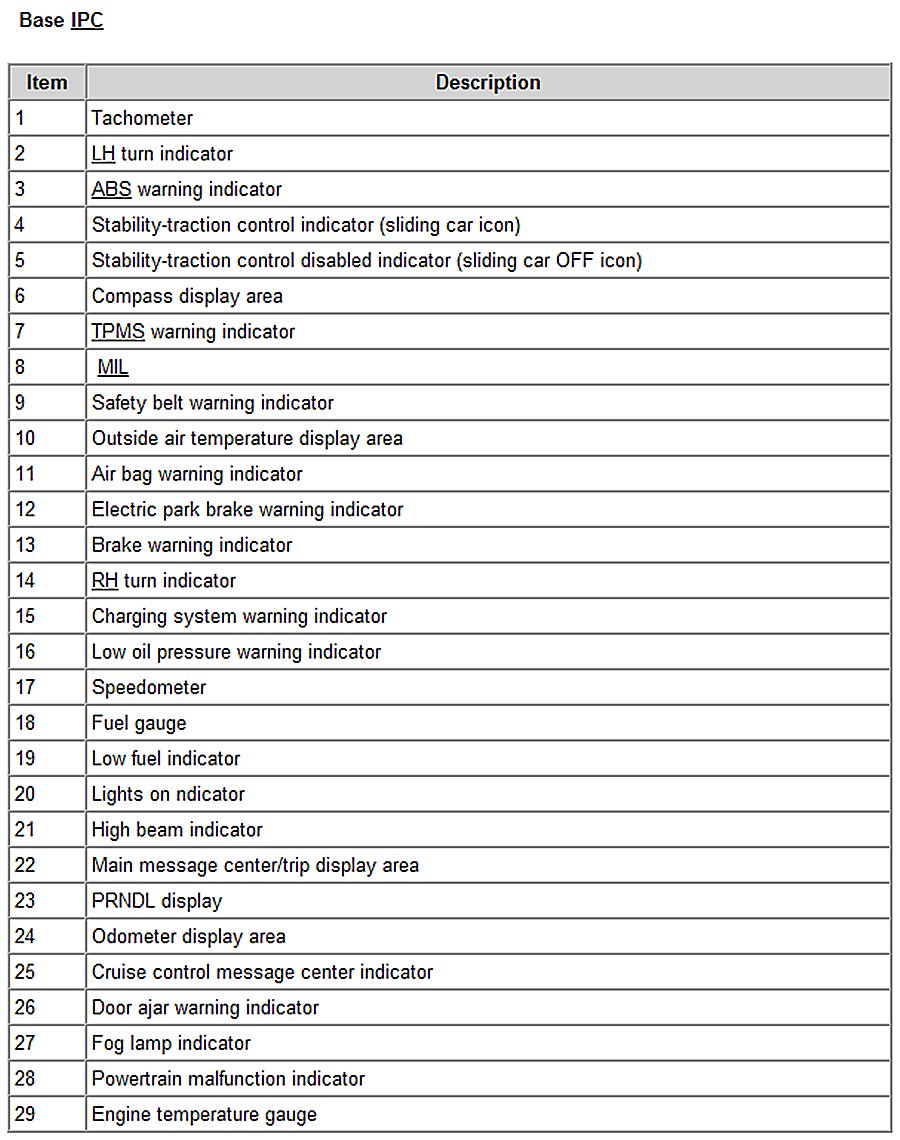

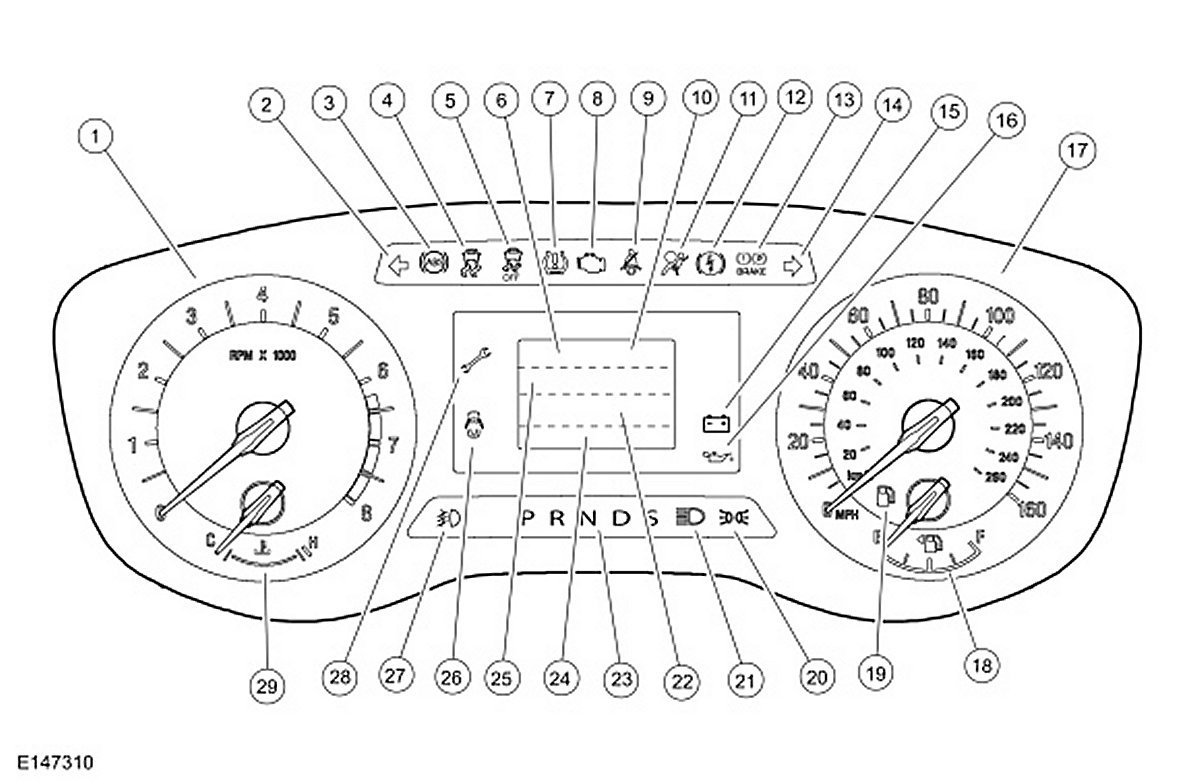

Base IPC











The base IPC provides a single 2.3" monochrome LCD message center display.

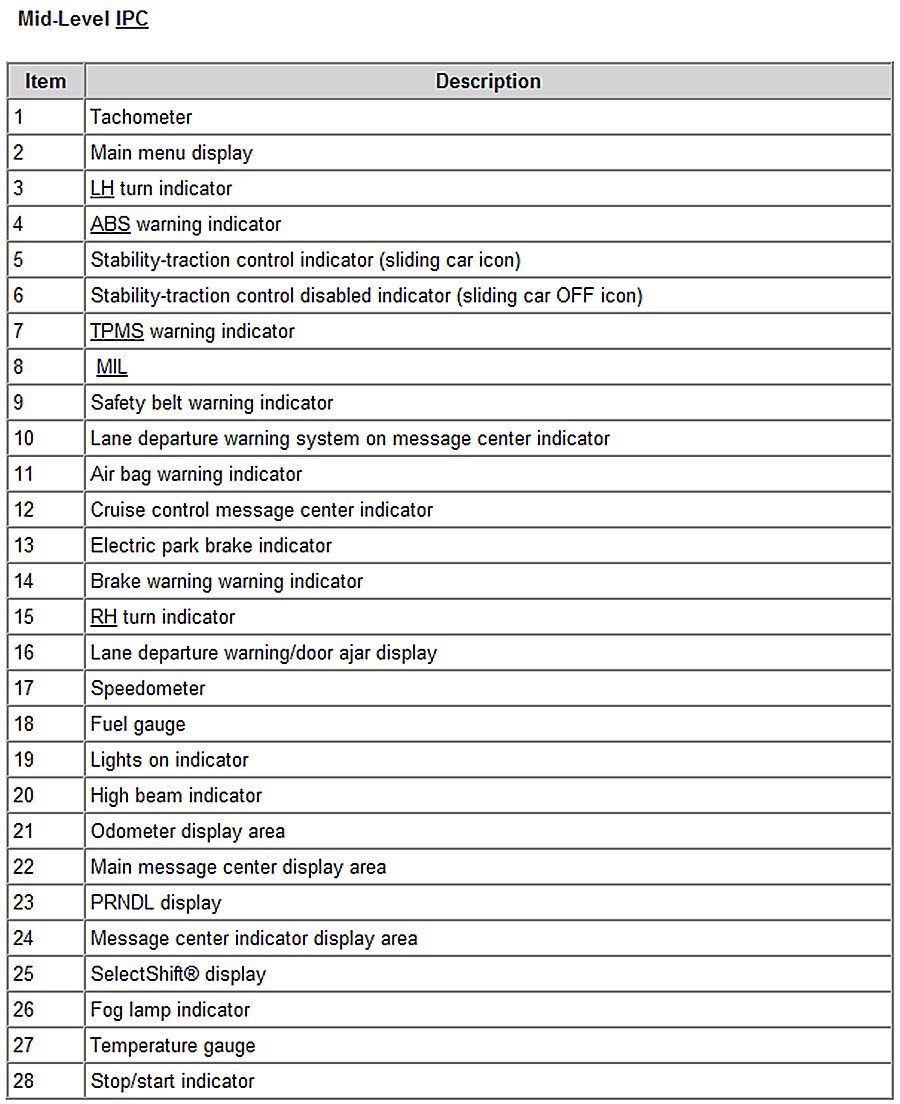

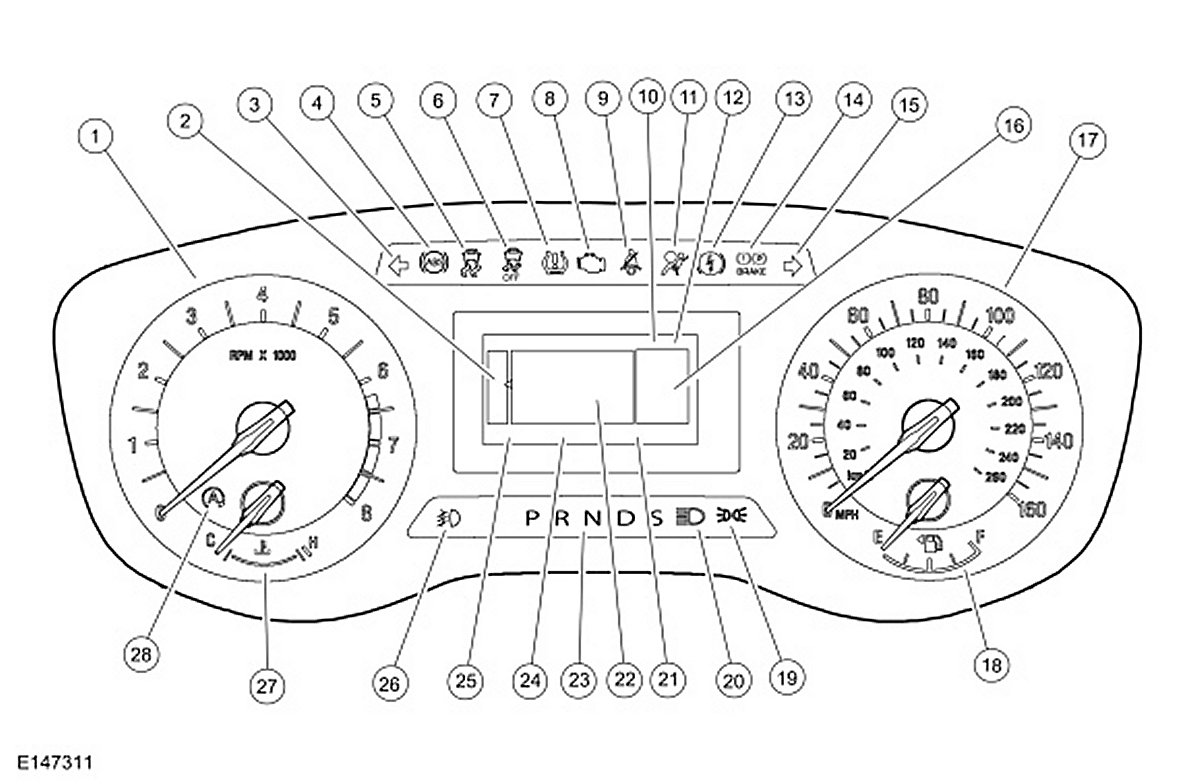

Mid-Level IPC











The mid-level IPC provides a single 4.2" color thin film transistor message center display.

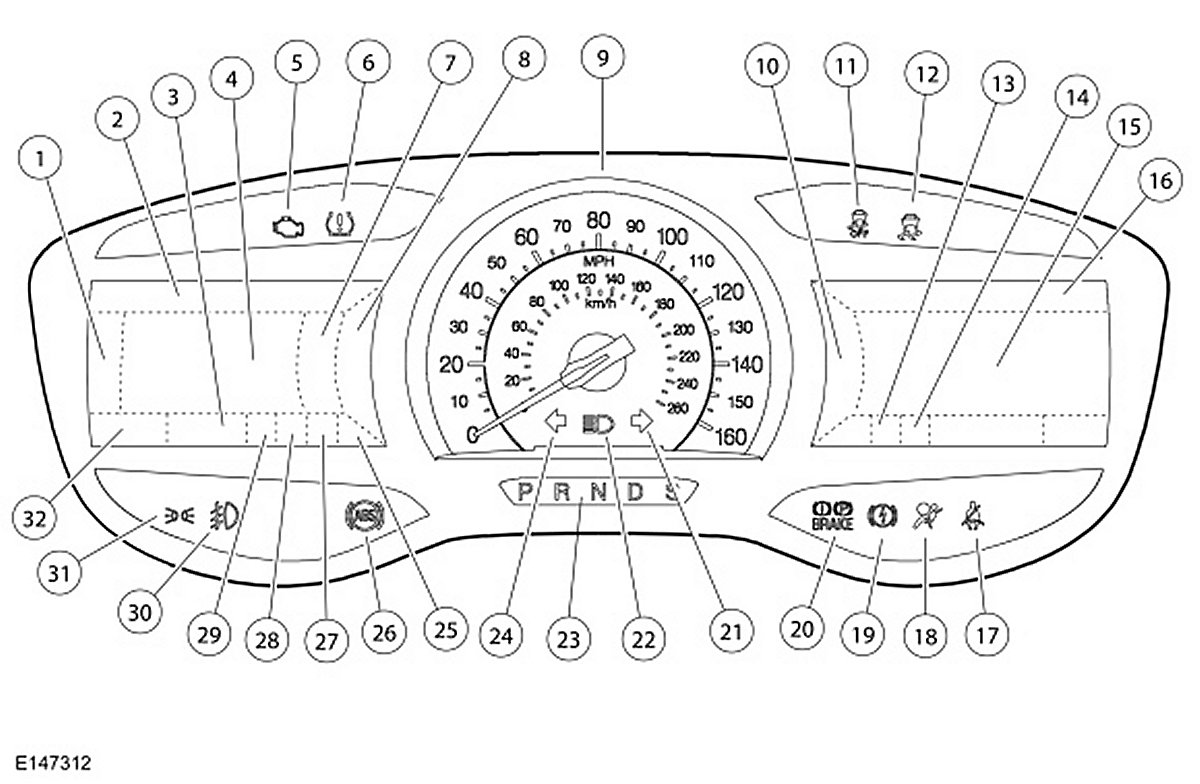

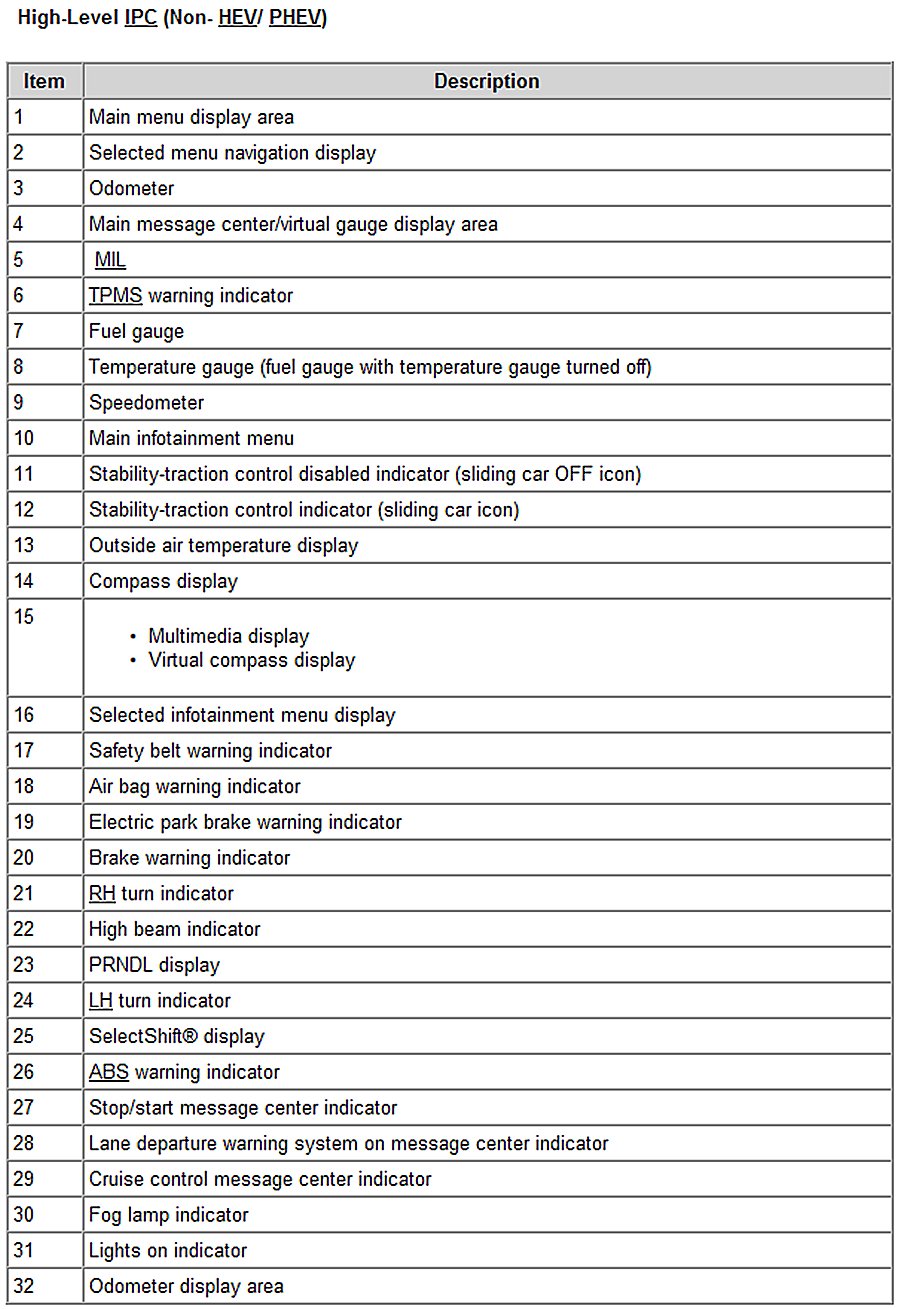

High-Level IPC (Non-HEV/PHEV)











The high-level IPC provides dual RH and LH 4.2" thin film transistor screens to display driver information. The LH display screen contains the virtual gauge displays and message center information. The RH display screen displays multimedia information (audio, phone, navigation, and climate control), as well as items such as vehicle direction, outside air temperature, and time.

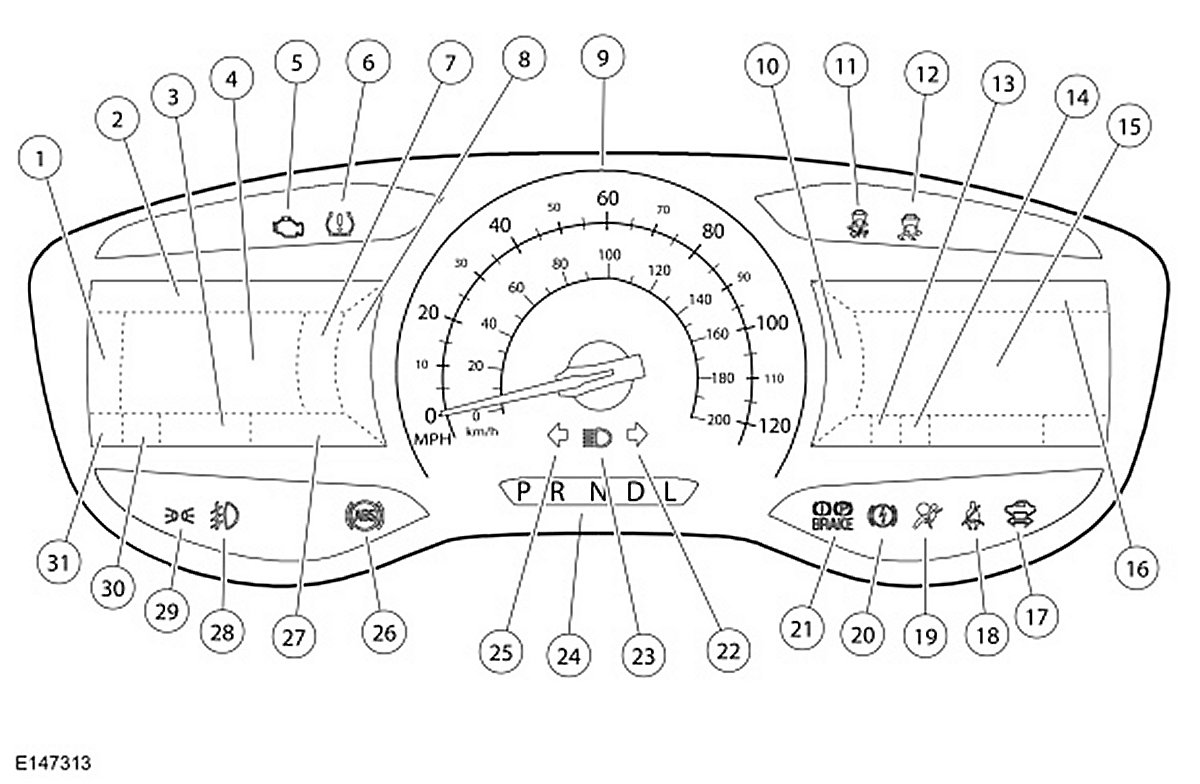

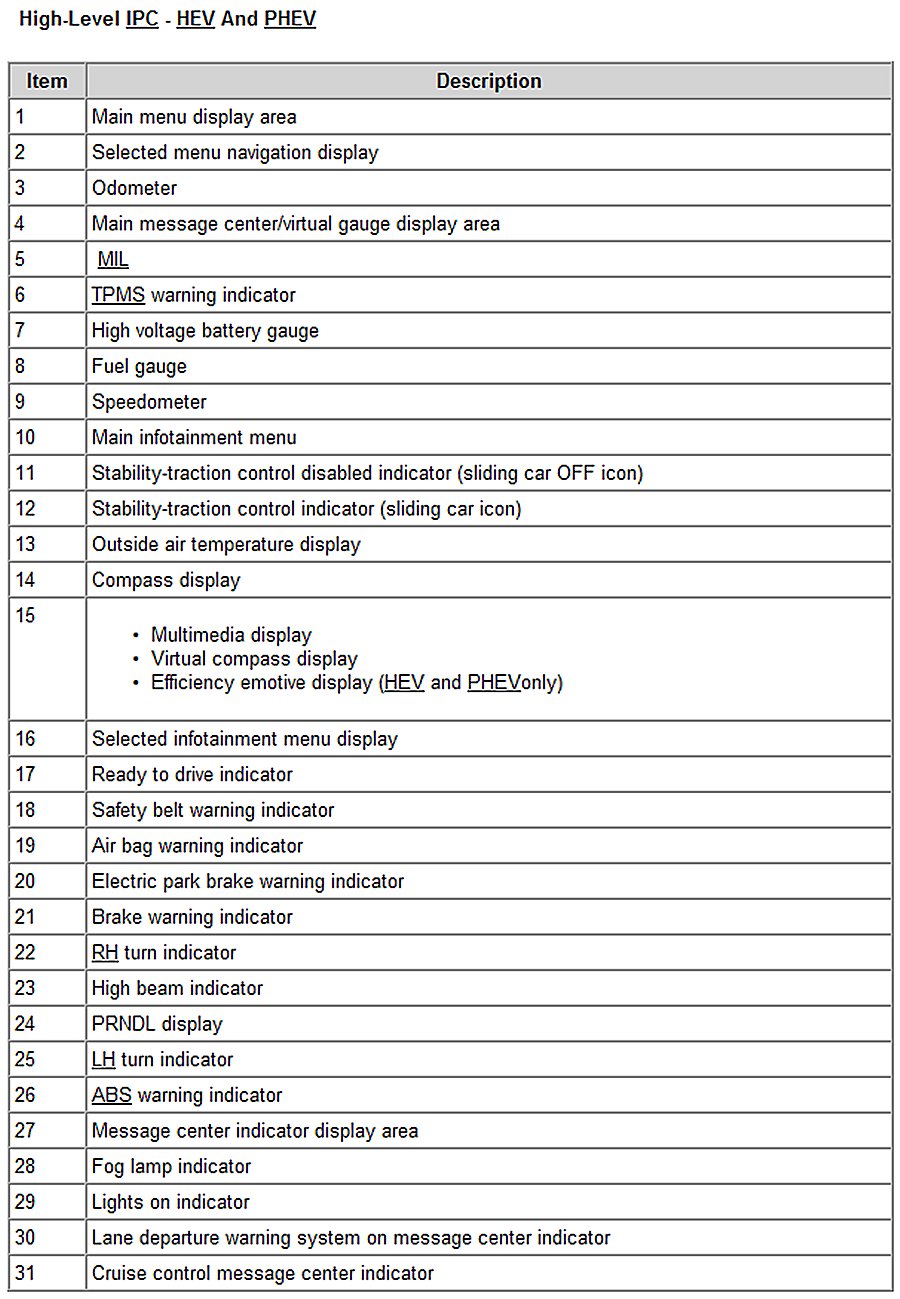

High-Level IPC (HEV and PHEV)










The HEV and PHEV IPC utilizes a modified high-level IPC that provides specific displays HEV and PHEV displays.

The display options allow the user to define the level of information that they view. The display levels are as follows:

- Vehicle Range
- Inform
- Enlighten
- Engage
- Empower
- MyView
- EV (PHEV)
