Condenser HVAC: Service and Repair

Condenser - 2.0L EcoBoost (184kW/250PS) - MI4

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Climate Control System Health and Safety Precautions. Service Precautions

2. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging. Service and Repair

3. Refer to: Charge Air Cooler (CAC).

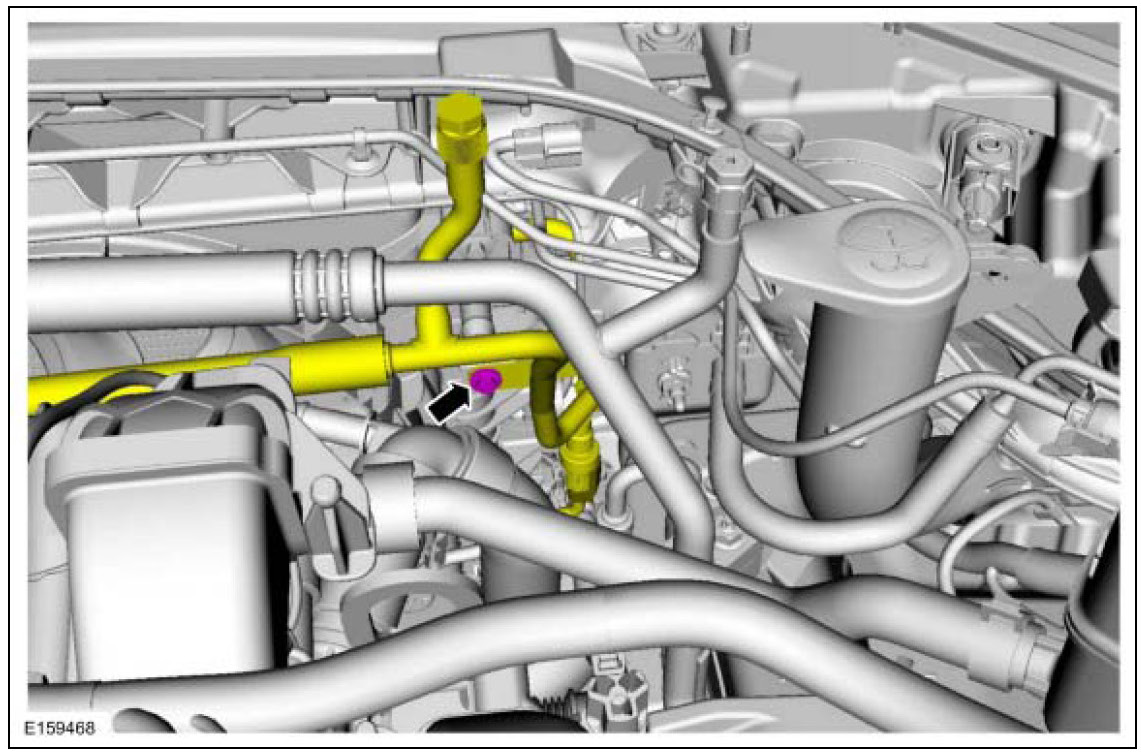

4. Torque: 7 Nm

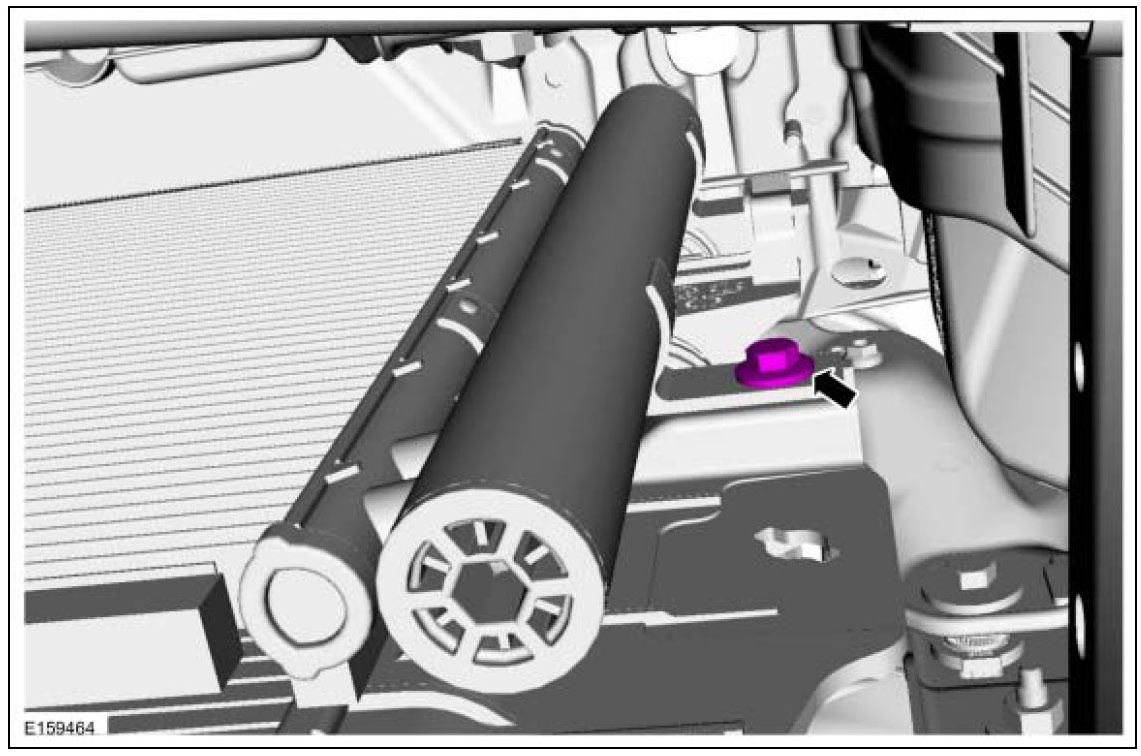

5. Torque:
1. 8 Nm
2. 20 Nm

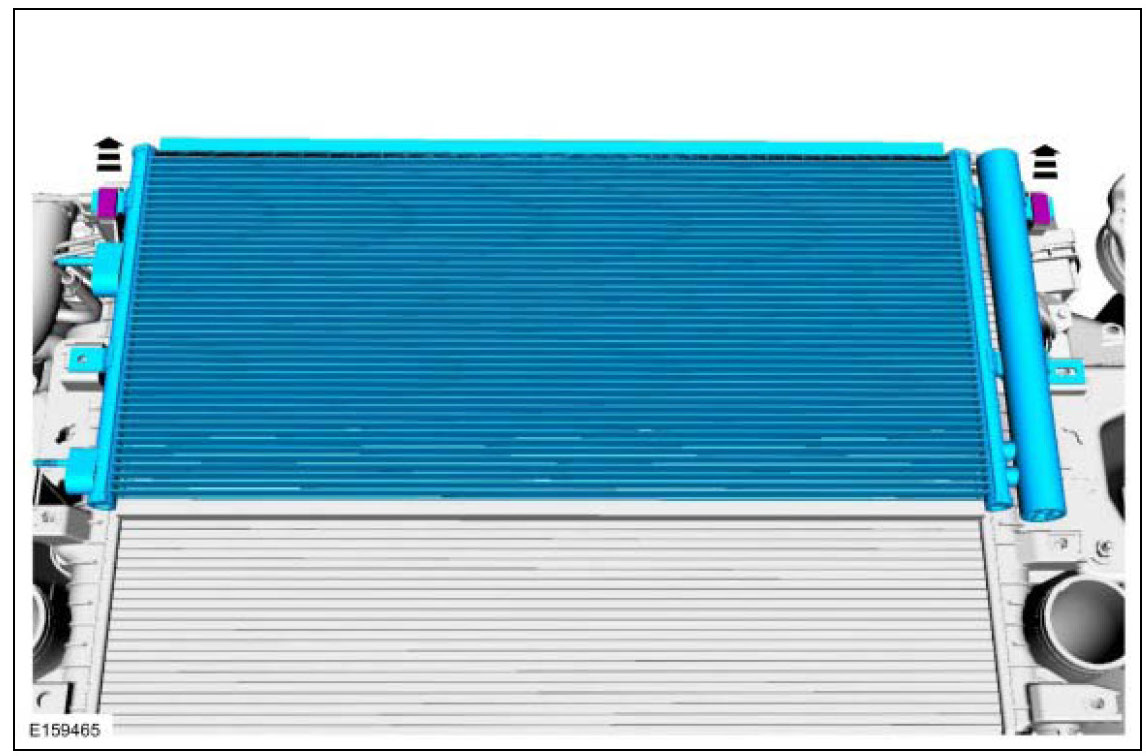

6. Torque: 8 Nm

Installation

1. To install reverse the removal procedure.
2. Refer to: Refrigerant Oil Adding.
