Radiator Shutter: Service and Repair

Active Grille Shutter

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions. Health and Safety Precautions

2. Refer to: Front Bumper Cover. Removal and Replacement

3. If equipped.
Refer to: Charge Air Cooler (CAC).

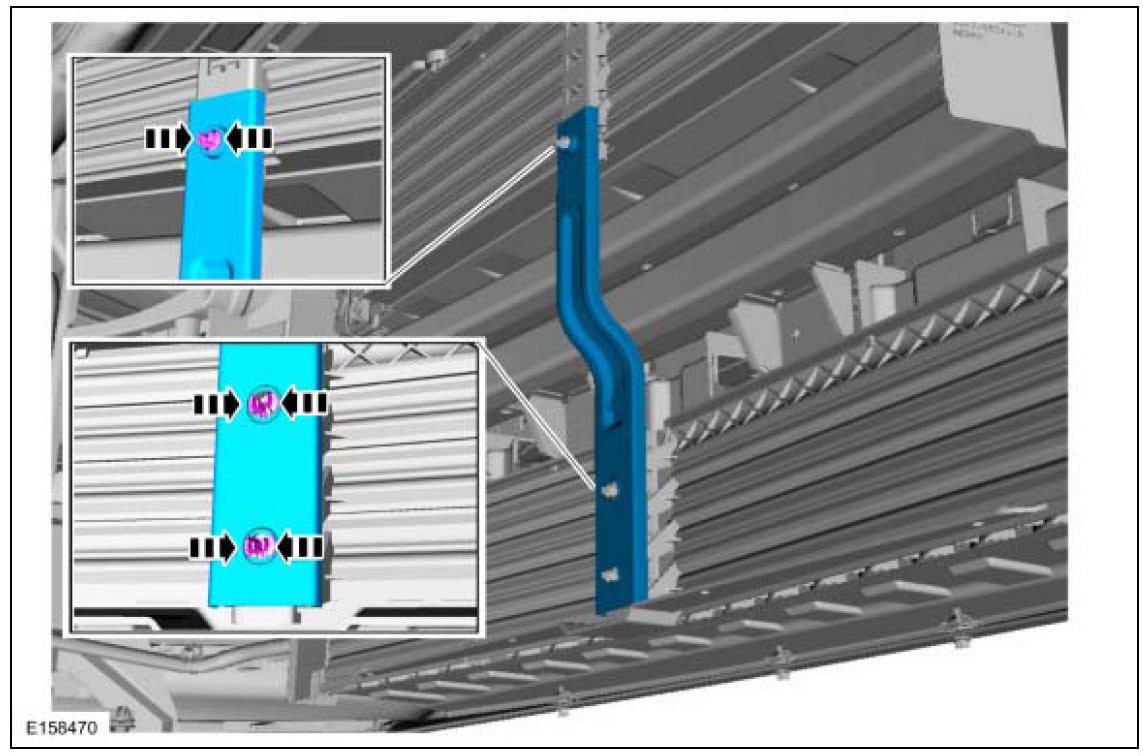

4.

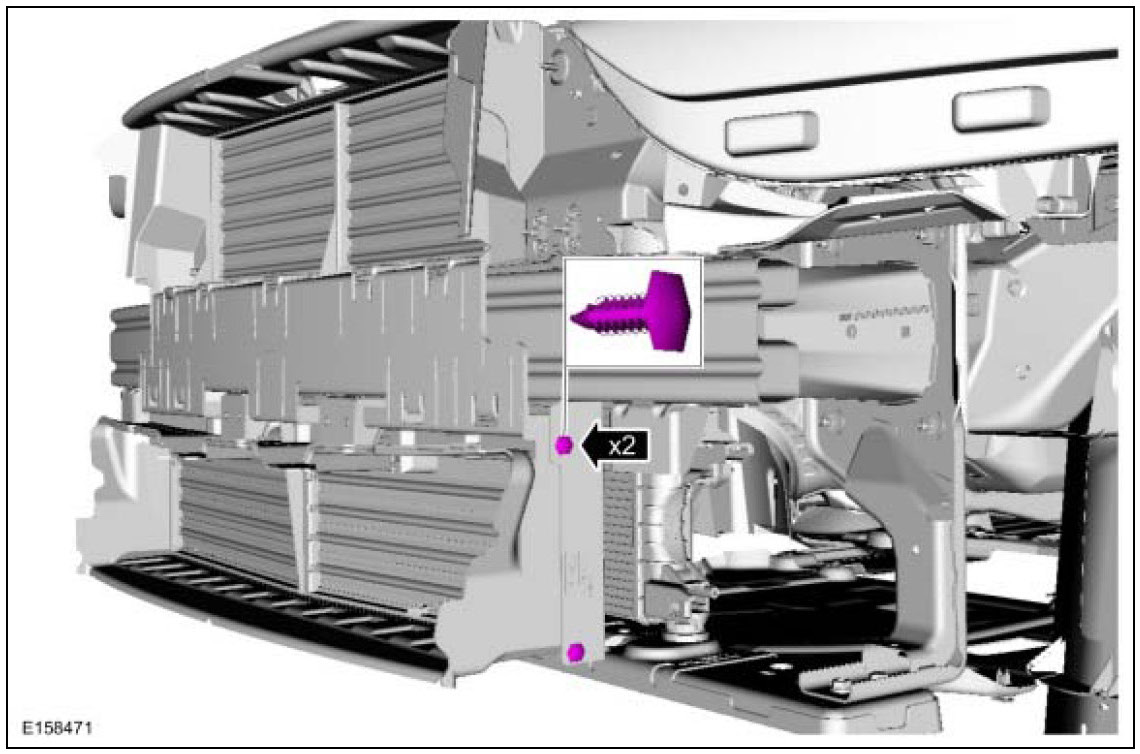

5. On both sides.

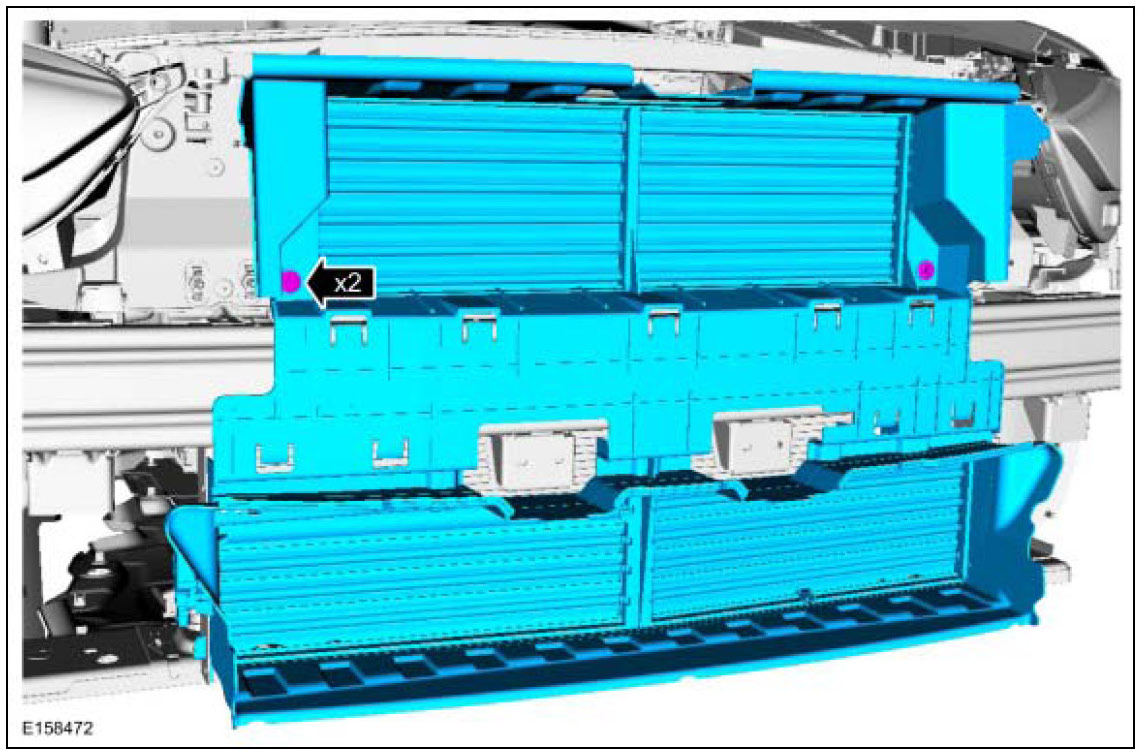

6. Torque: 6 Nm







Installation

1. To install, reverse the removal procedure.
