Front Bumper Reinforcement: Service and Repair

Front Bumper

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions. Service Precautions

2. Remove the front bumper cover.
Refer to: Front Bumper Cover. Removal and Replacement

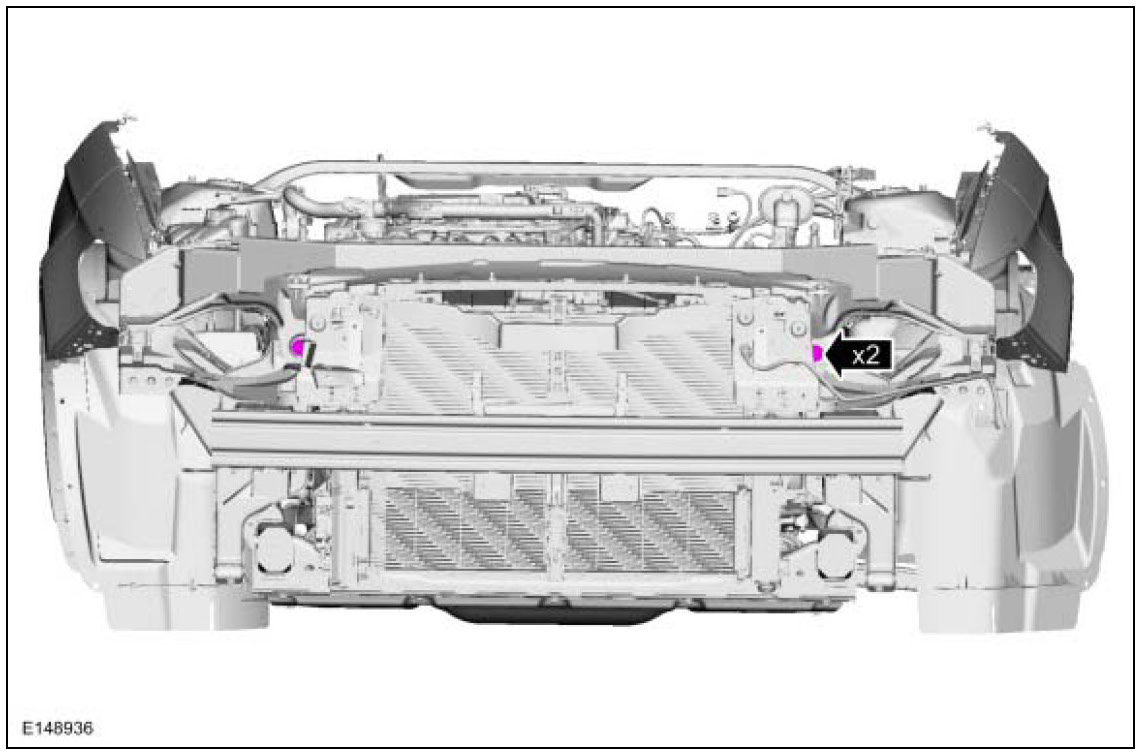

3. Torque: 20 Nm

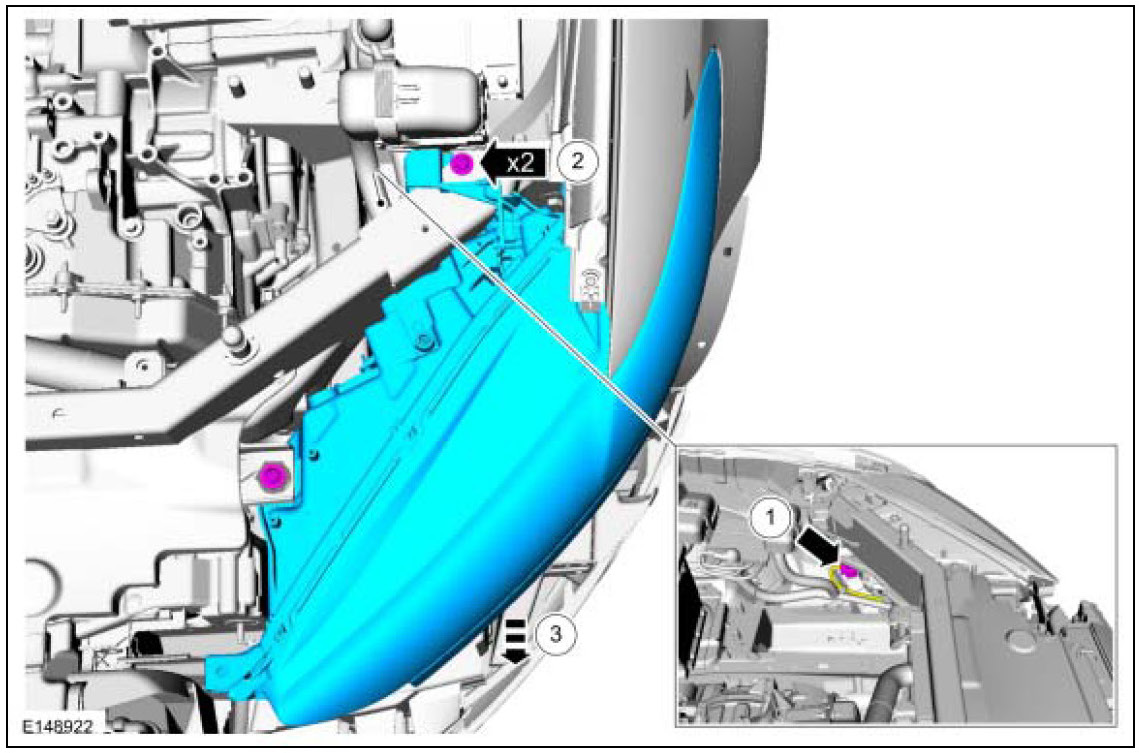

4. On each side.
Torque: 4.1 Nm







5. Remove the active grille shutters.

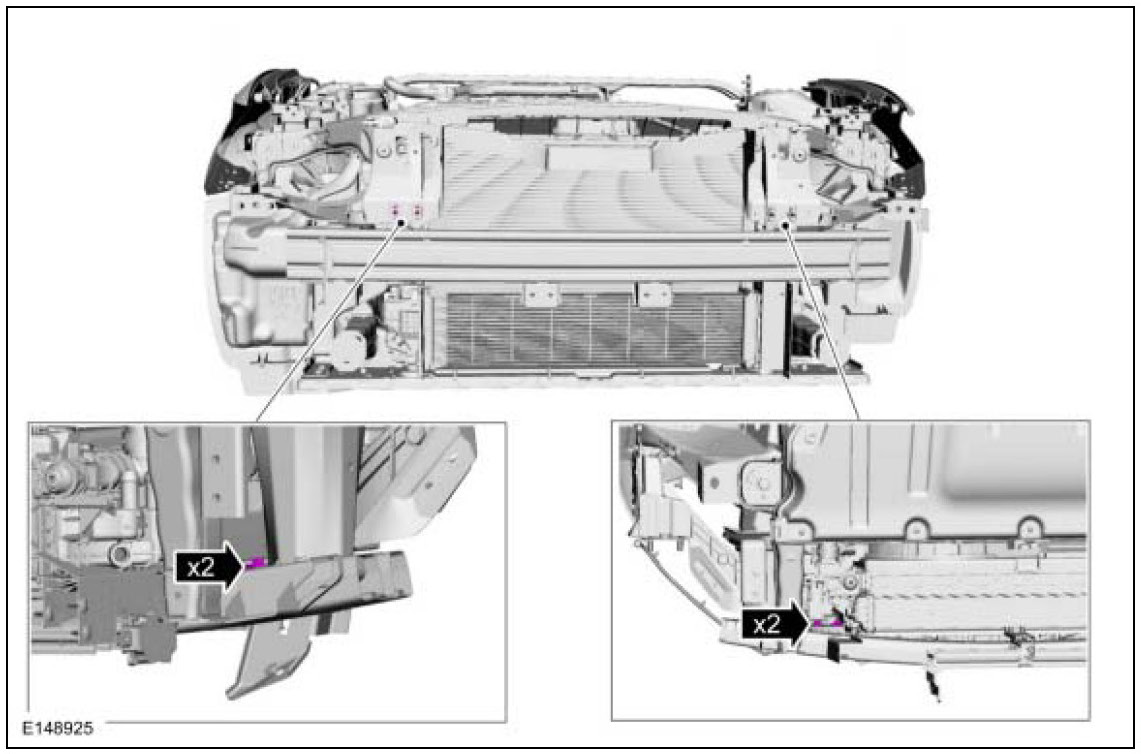

6. On each side.
Torque: 6 Nm

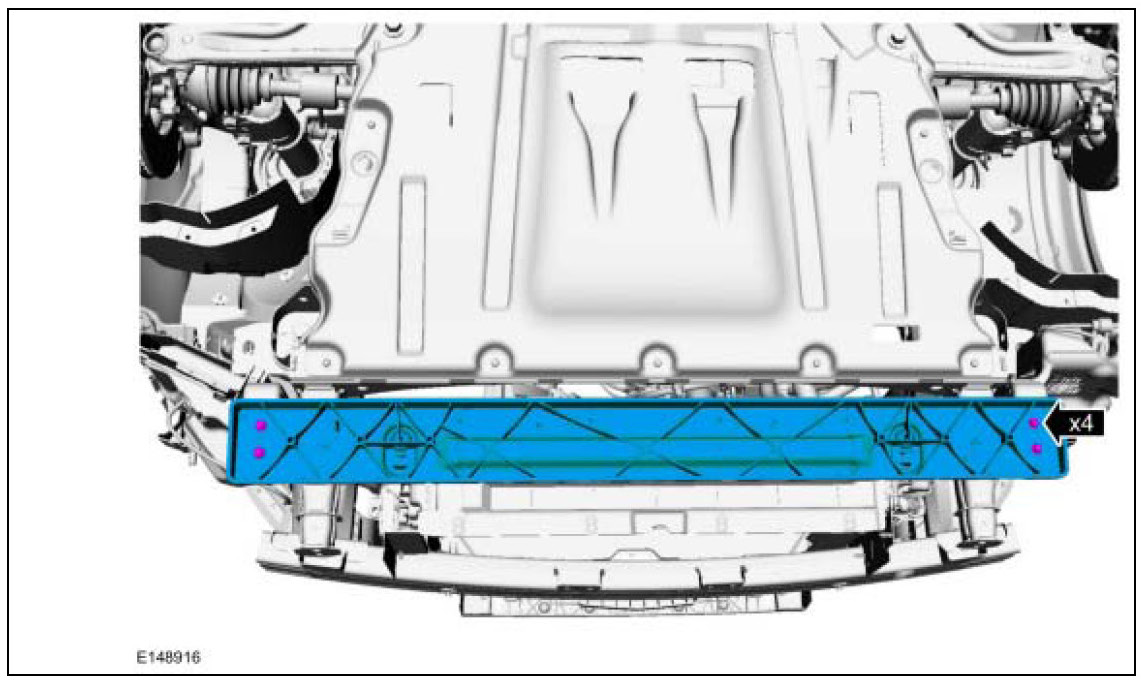

7. Torque: 20 Nm

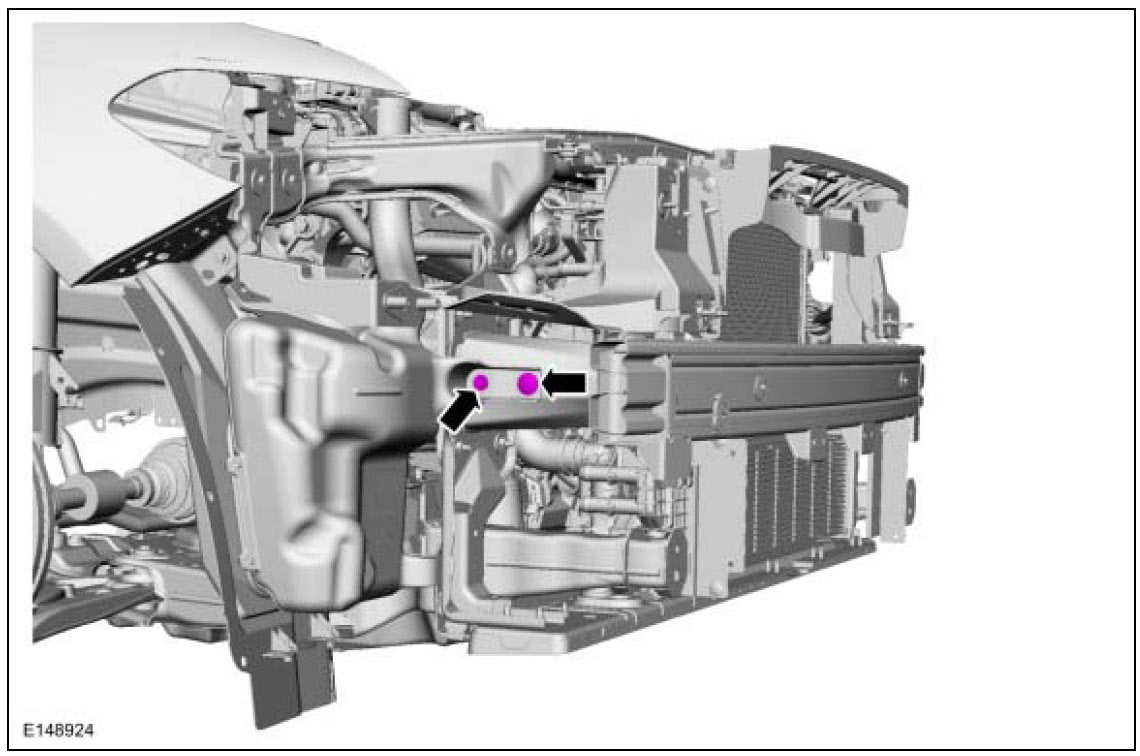

8. Torque: 24 Nm

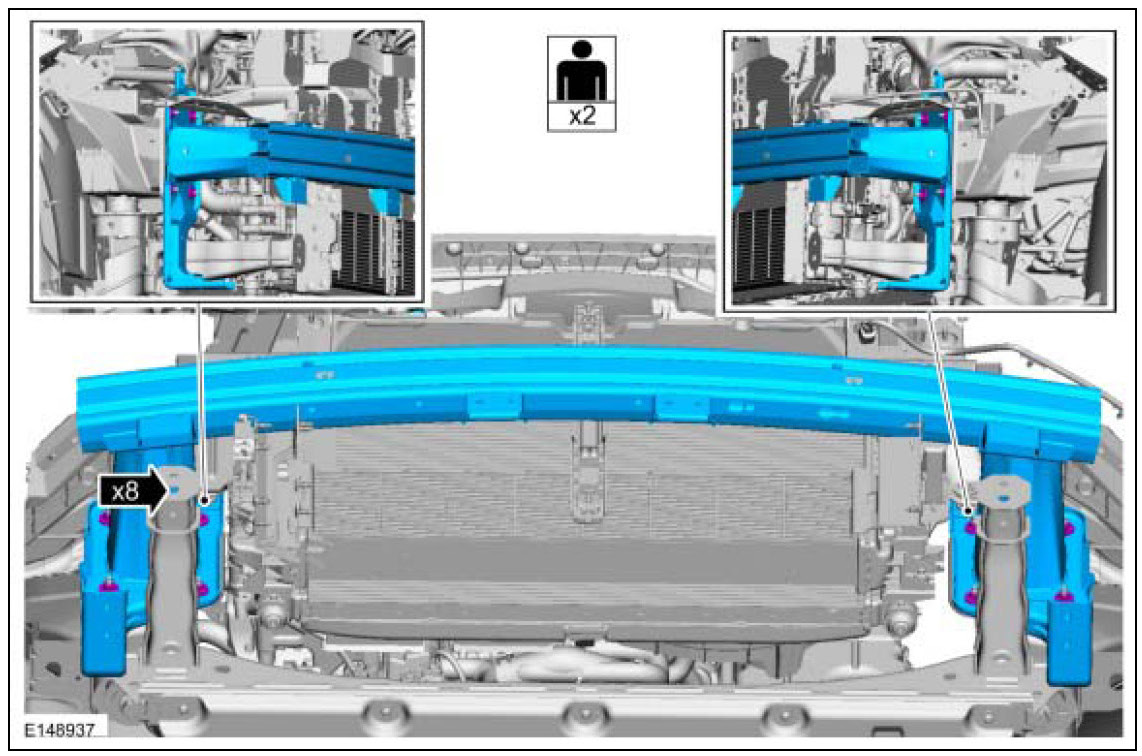

9. Torque: 24 Nm







Installation

1. To install, reverse the removal procedure.
