Side Airbag

Side Airbag

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions. Health and Safety Precautions

2. NOTE: It is not necessary to remove the backrest cover, only position it aside for access.

Remove the front seat backrest cover.
Refer to: Front Seat Backrest Cover.

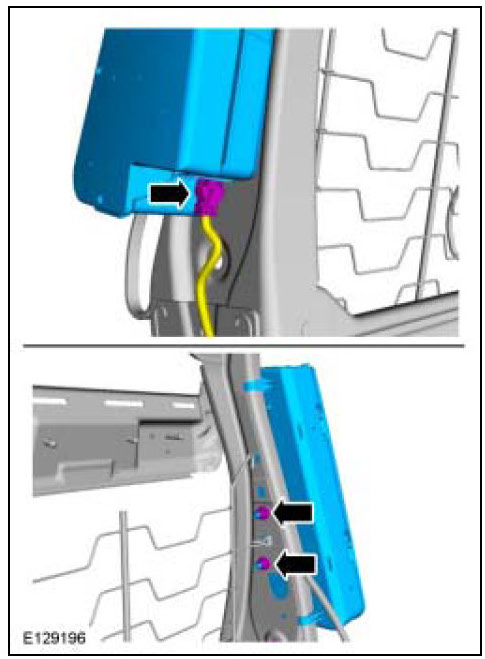

3. NOTE: Note the position of the component before removal.
Torque: 7 Nm







Installation

1. NOTE: Make sure the component is installed to the position noted before removal.

To install, reverse the removal procedure.
