Driver Lower Airbag - Vehicles Built From: 11-June-2012

Driver Lower Airbag - Vehicles Built From: 11-June-2012

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions. Health and Safety Precautions

2. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

If a SRS fault is present, continue to step 3. Otherwise, turn the ignition off, wait at least one minute and continue to step 4.

3. Depower the SRS.
Refer to: Supplemental Restraint System (SRS) Depowering and Repowering. Service and Repair

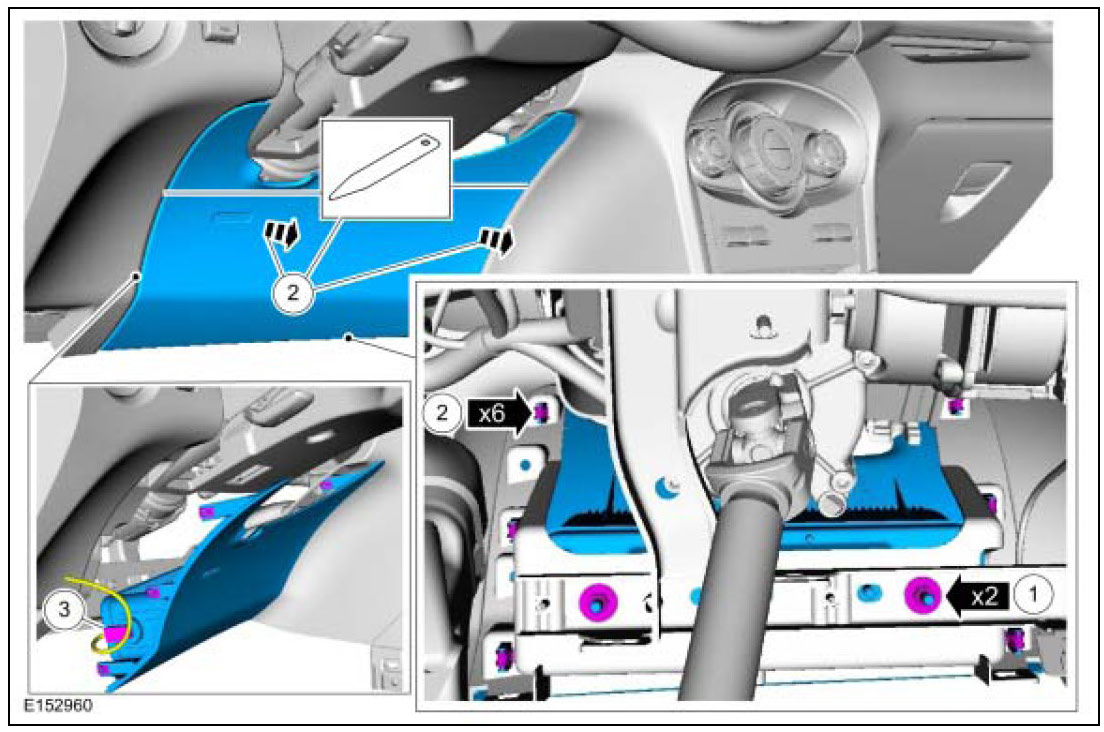

4.
1. Torque: 8 Nm
2. Interior trim remover.
3.







Installation
1. To install, reverse the removal procedure.
2. If the SRS was depowered, repower the SRS.
Refer to: Supplemental Restraint System (SRS) Depowering and Repowering. Service and Repair
