Radiator: Service and Repair

Radiator

Special Tool(s) / General Equipment
Transmission Jack
Knife

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Engine Cooling System Health and Safety Precautions. Engine Cooling System Health and Safety Precautions

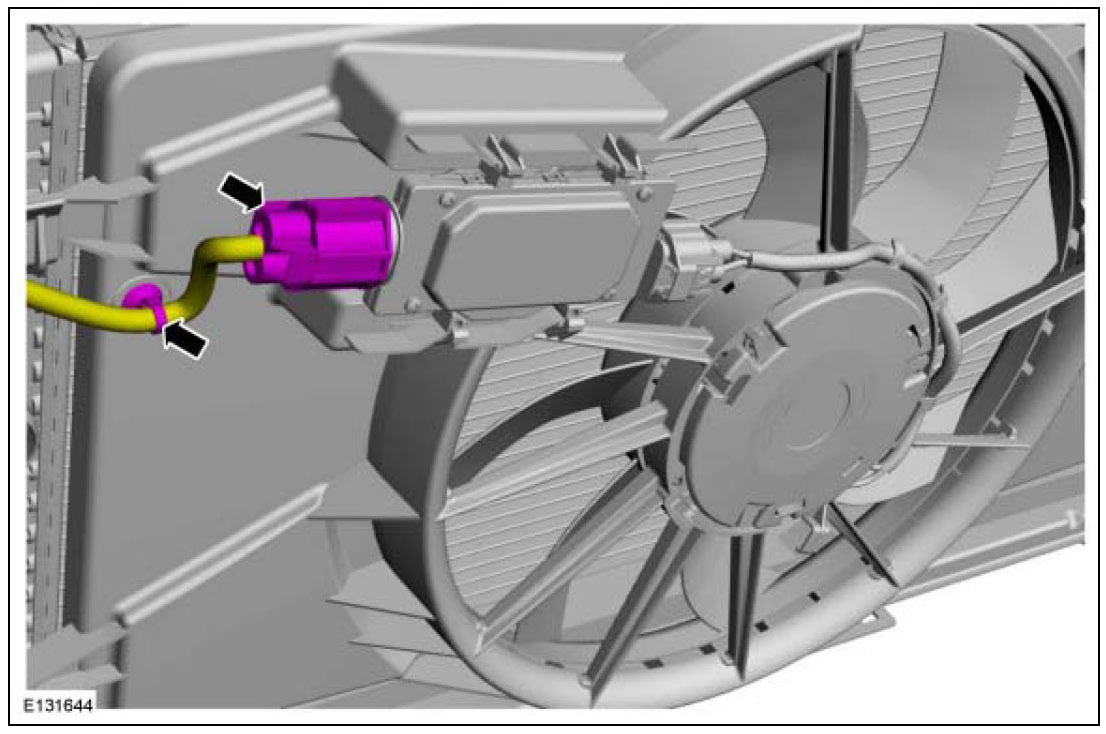

2.

3. Torque: 8 Nm

5. Refer to: Cooling System Draining and Vacuum Filling. Cooling System Draining and Vacuum Filling - 2.0L EcoBoost (184kW/250PS) - MI4
6. Refer to: Charge Air Cooler (CAC).

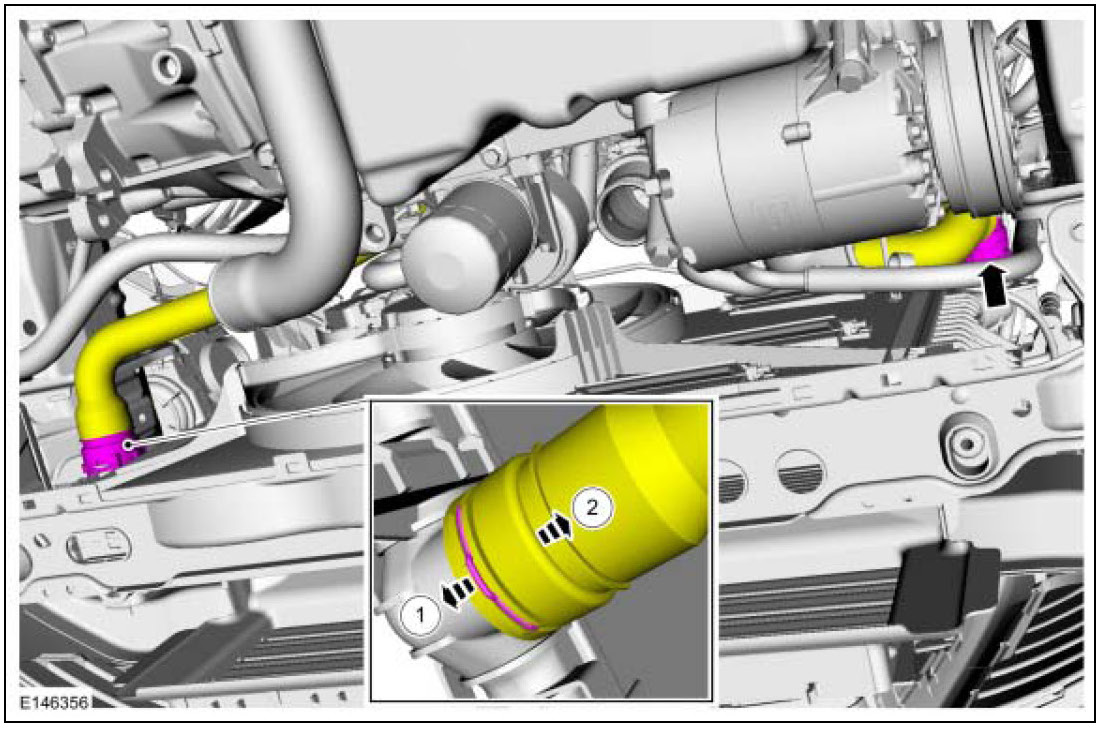

7.

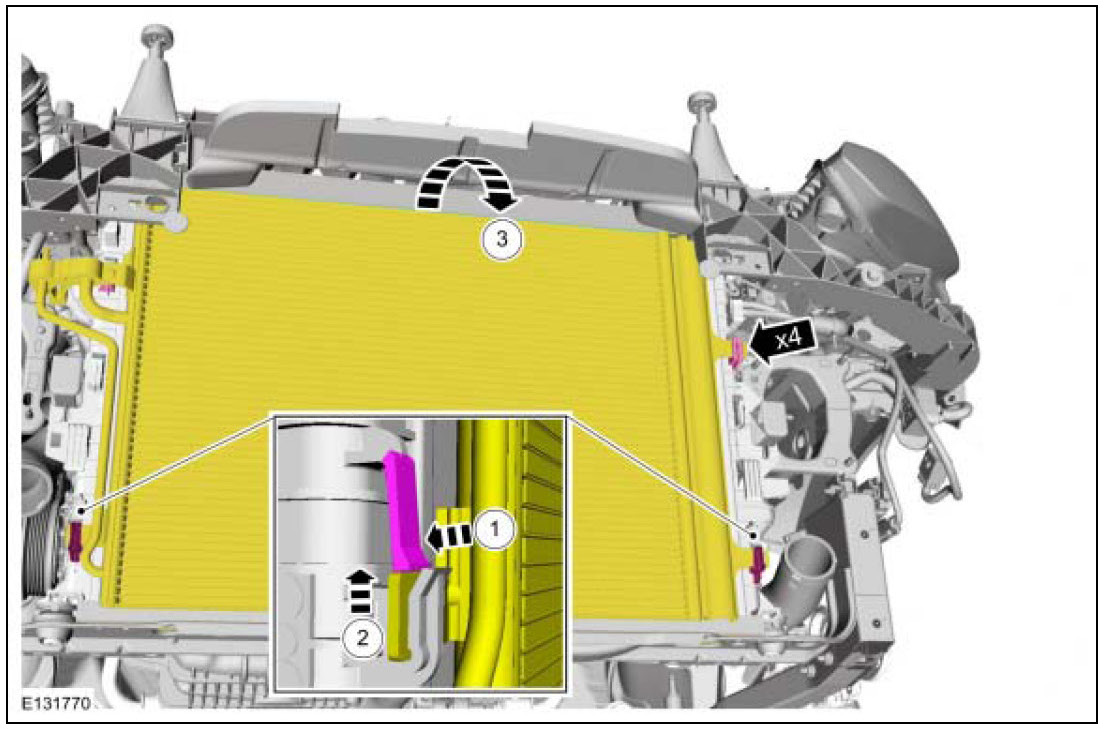

8. On both sides.

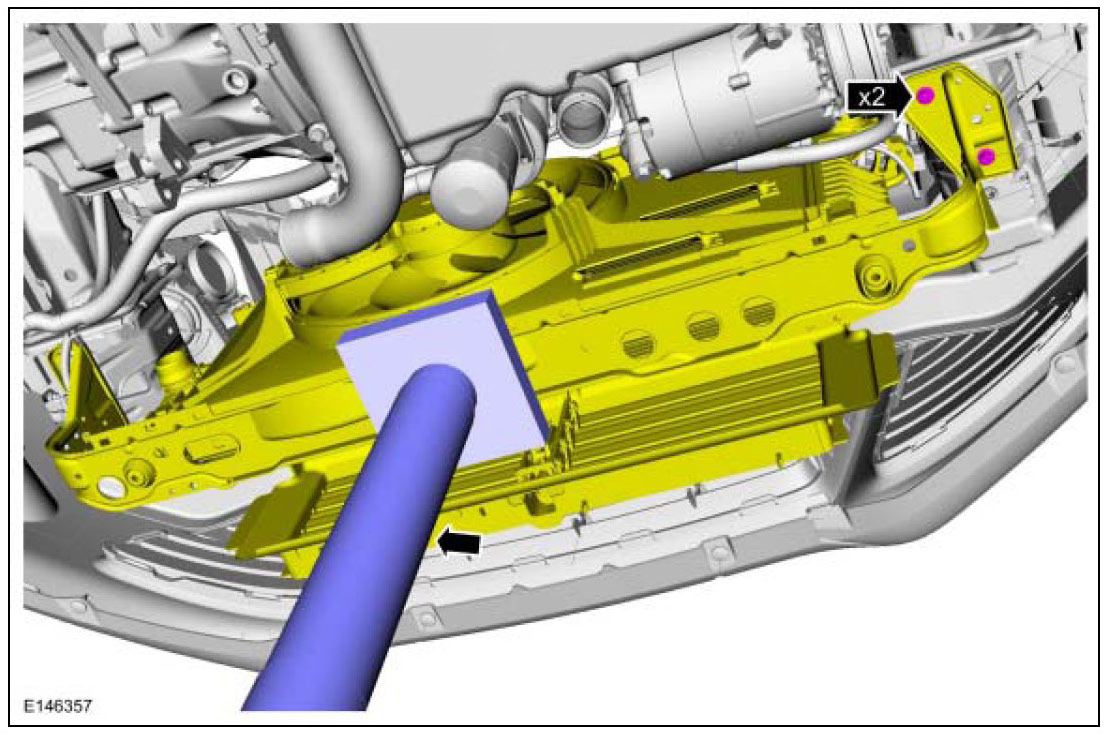

General Equipment: Transmission Jack
Torque: 25 Nm

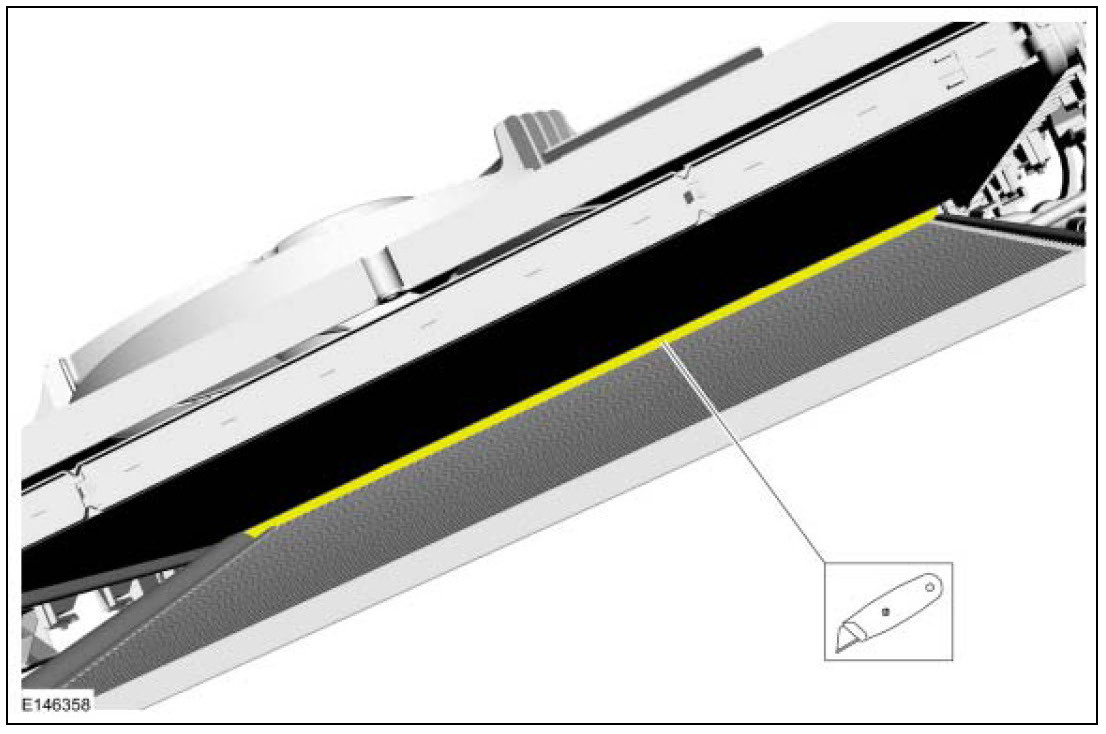

10. General Equipment: Knife

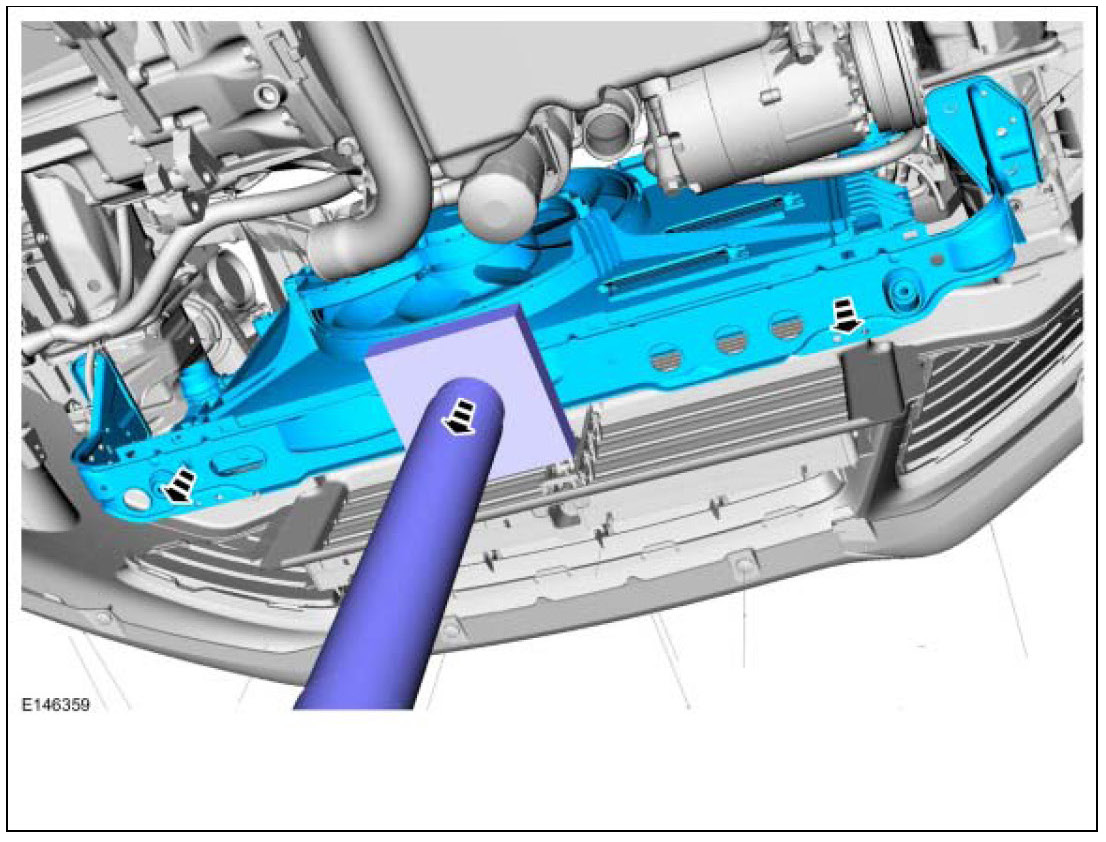

11. General Equipment: Transmission Jack

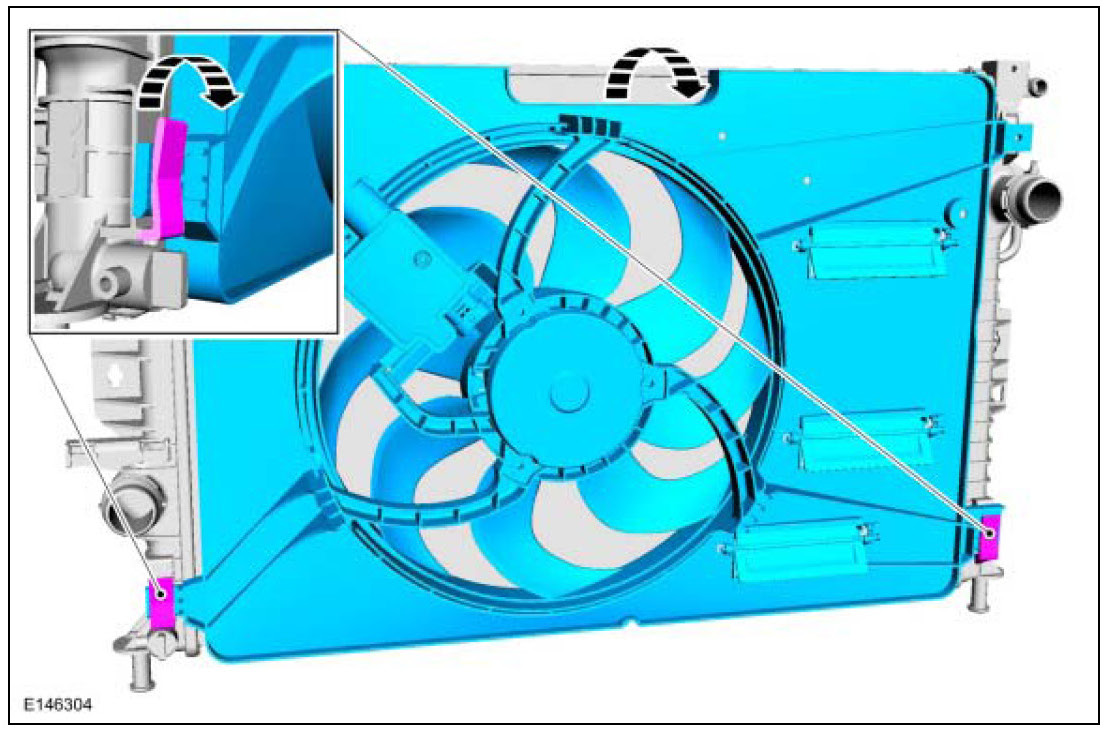

12.

Installation
1. To install, reverse the removal procedure.
