Removal and Replacement

Active Grille Shutter

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Jacking and Lifting - Overview. Service and Repair

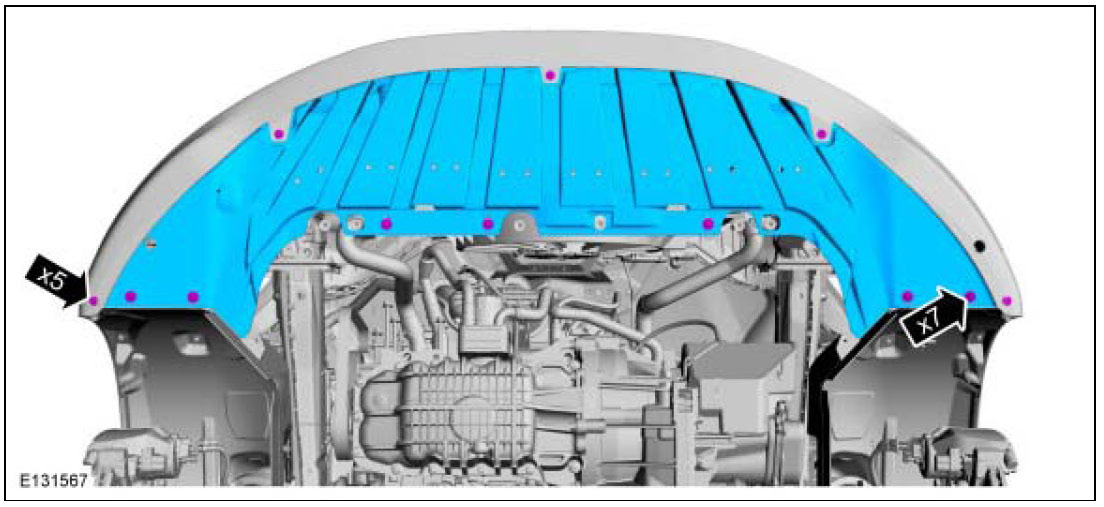

2. If equipped.

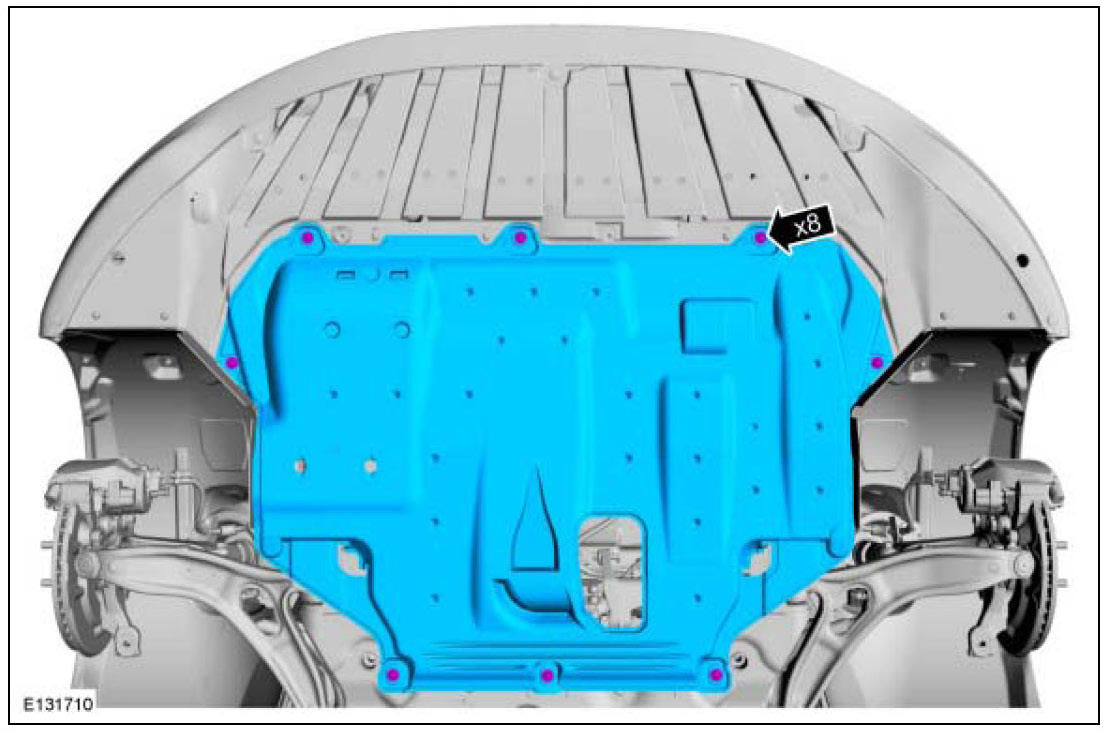

3. If equipped.

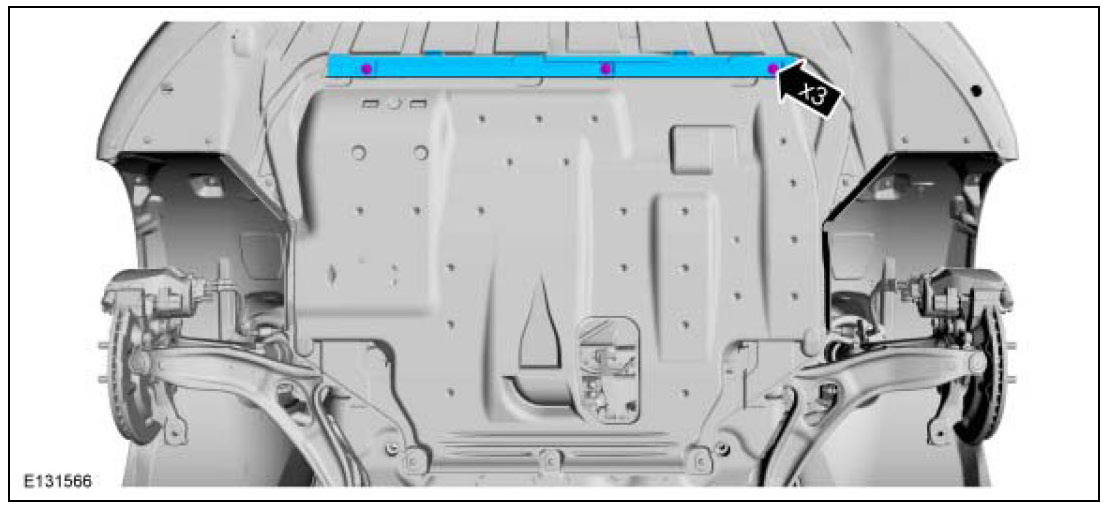

4. If equipped.

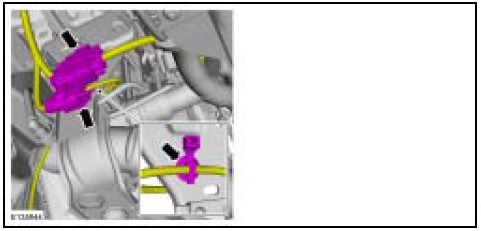

5.

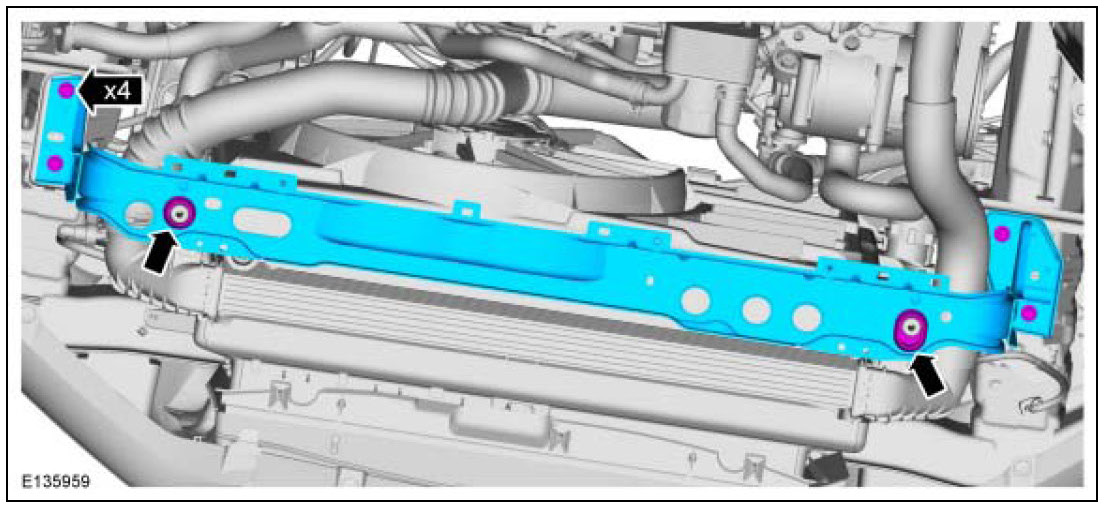

6. Torque: 25 Nm







7.







8.







Installation
1. To install, reverse the removal procedure.
