Overhaul

Active Grille Shutter

Special Tool(s) / General Equipment
Flat Headed Screw Driver

DISASSEMBLY

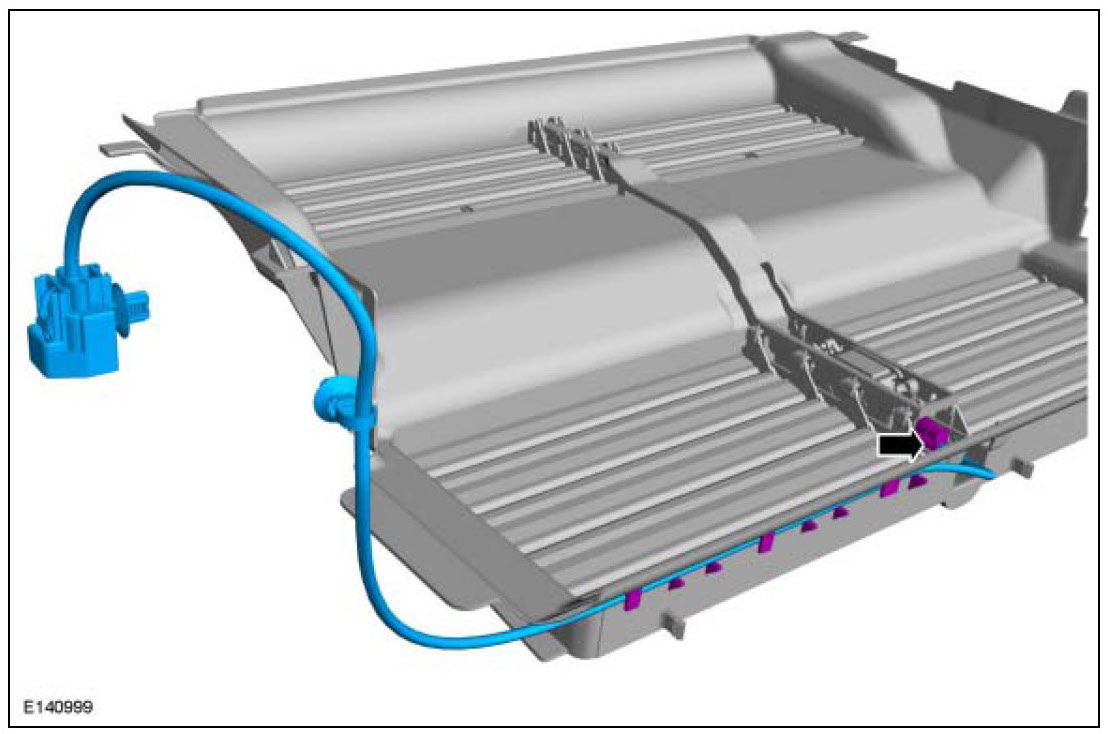

1.







2. NOTICE: Make sure to lift simultaneously.

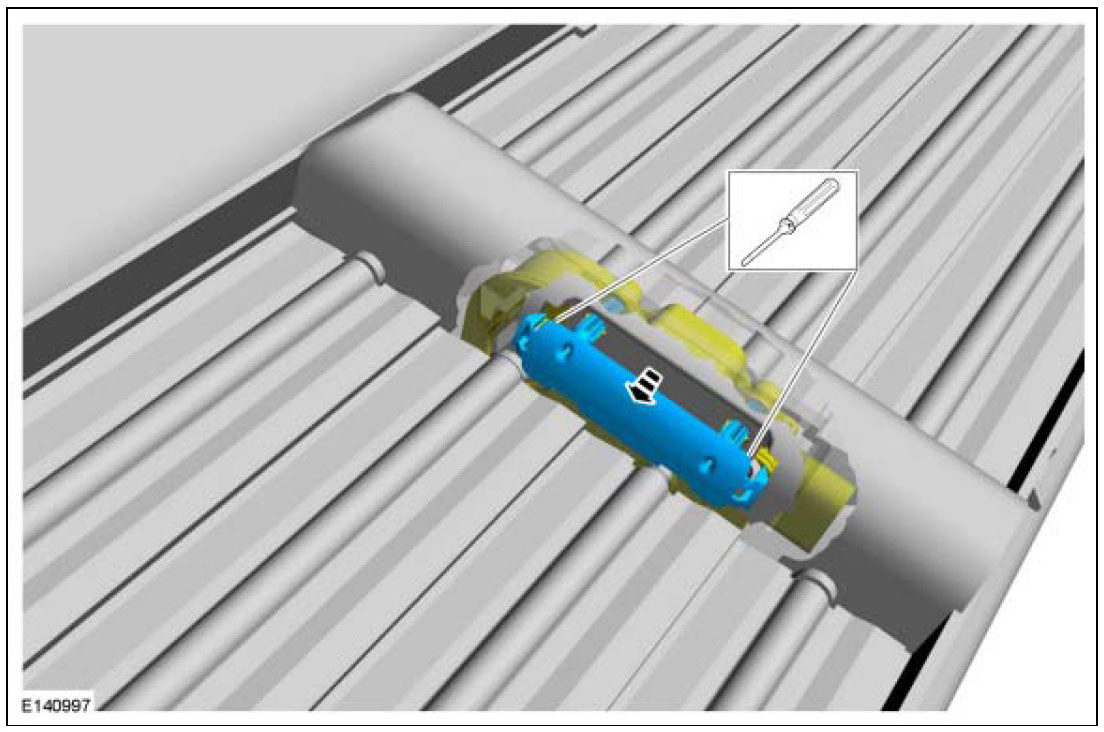

3. General Equipment: Flat Headed Screw Driver.

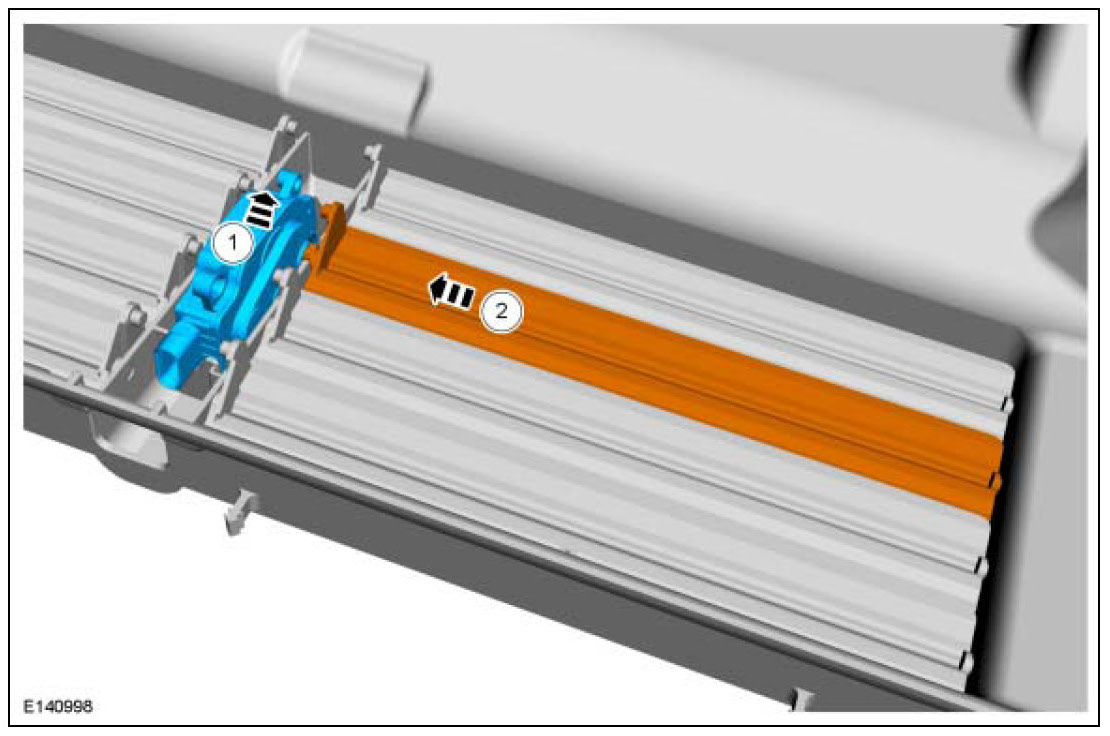

4.

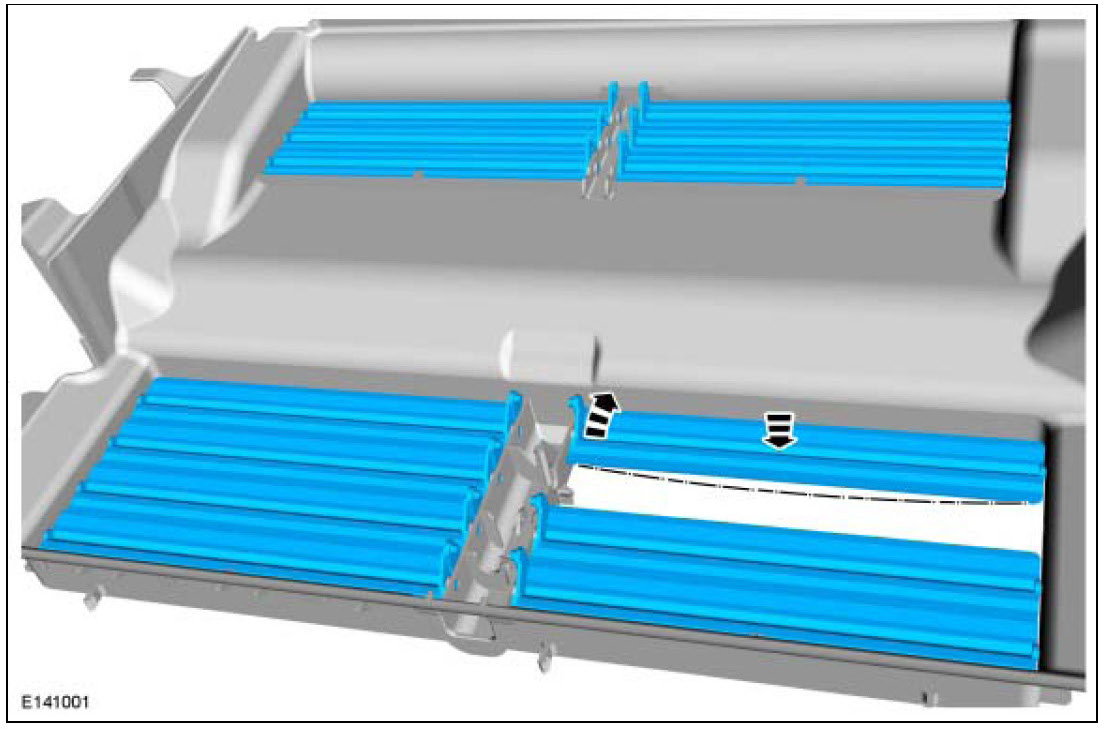

5. NOTE: Note the position of the components before removal.







ASSEMBLY
1. To assemble, reverse the disassembly procedure.
