Coolant Reservoir: Service and Repair

Cooling Module

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Engine Cooling System Health and Safety Precautions. Service and Repair

2. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging.
3. Refer to: Air Cleaner.

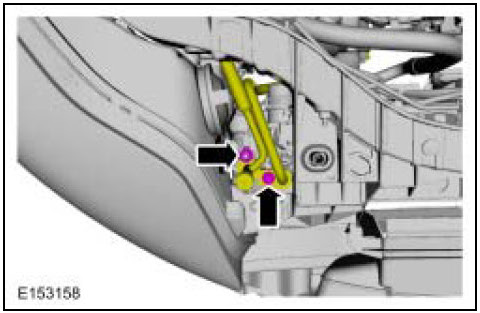

4.

7. Install new gaskets and O-ring seals.
Torque: 15 Nm

8. Refer to: Cooling System Draining and Vacuum Filling. Cooling System Draining and Vacuum Filling - 2.0L EcoBoost (184kW/250PS) - MI4
9.

10. Torque: 5 Nm

11.

12.

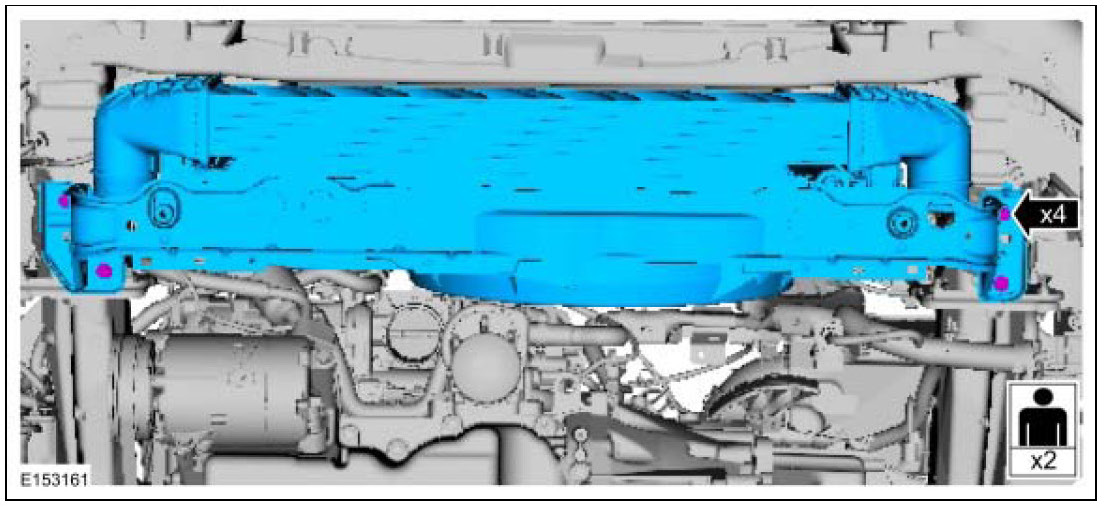

13. This procedure step requires the specified number of technicians.
Torque: 25 Nm

Installation

1. To install, reverse the removal procedure.
