Interior - Rear Parcel Shelf Vent Foam Deterioration
TSB 13-3-2003/30/13
REAR PARCEL SHELF - VENT FOAM
DETERIORATING OR FALLING APART - BUILT ON
OR BEFORE 2/9/2013
FORD:
2012-2013 Focus
ISSUE
Some 2012-2013 Focus four-door sedan vehicles built on or before 2/9/2013 may exhibit vent foam deteriorating or falling apart on the parcel shelf.
ACTION
Follow the Service Procedure steps to correct the condition.
SERVICE PROCEDURE
1. Remove the parcel shelf. Refer to Workshop Manual (WSM), Section 501-05.
2. Place parcel shelf on a protected surface with underside facing up.

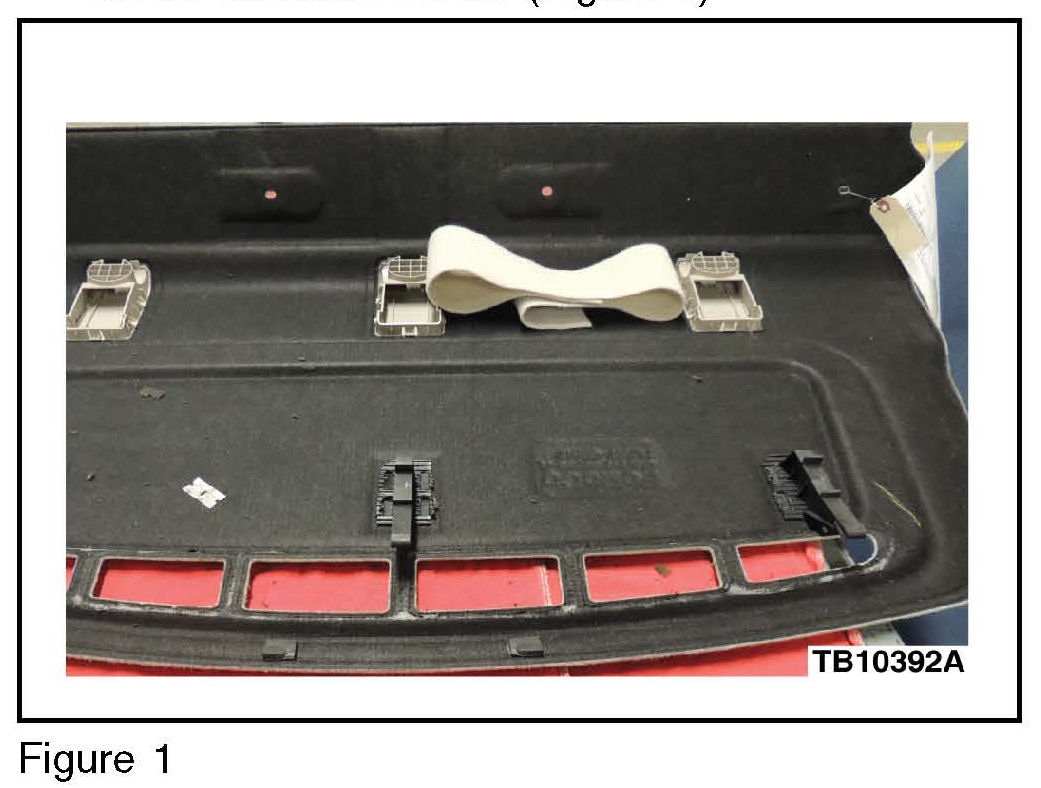

3. Remove remaining foam and glue from around all air extractor vents. (Figure 1)

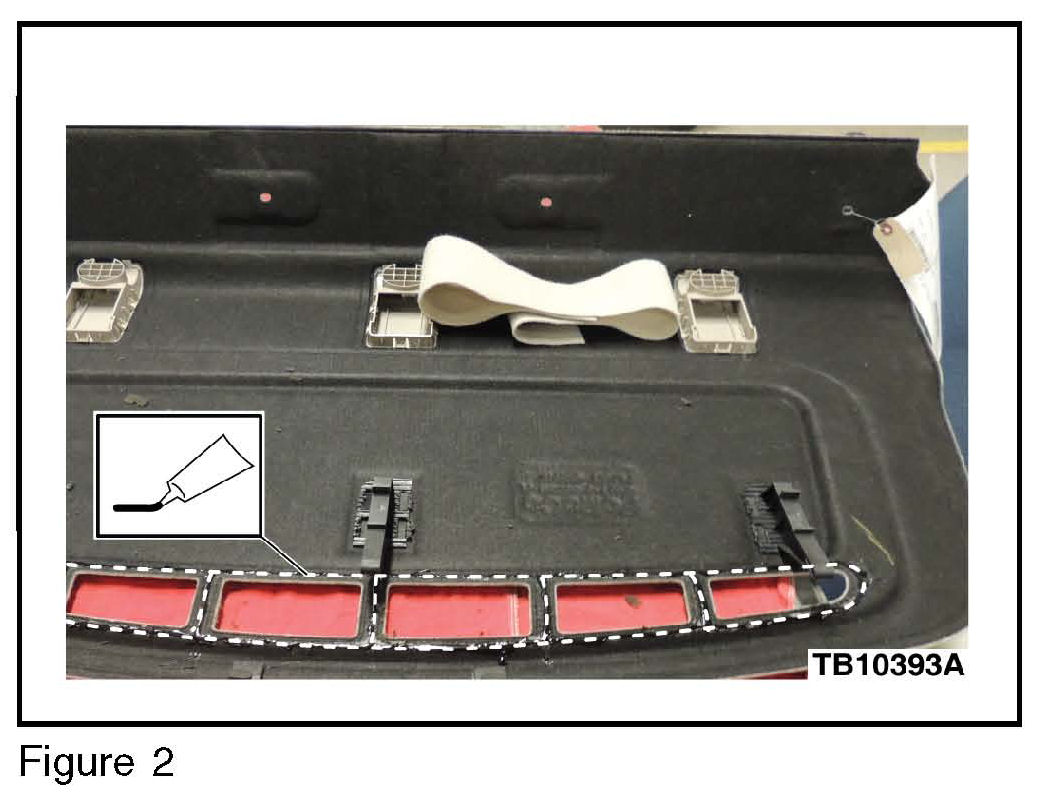

4. Using 3M(TM) Black Super Weatherstrip Adhesive or equivalent, apply a 3 mm (1/8") bead to the parcel shelf around the perimeter and between the air extractor vents. Leave 6 mm (1/4") space between the edge of the vent and bead. (Figure 2)

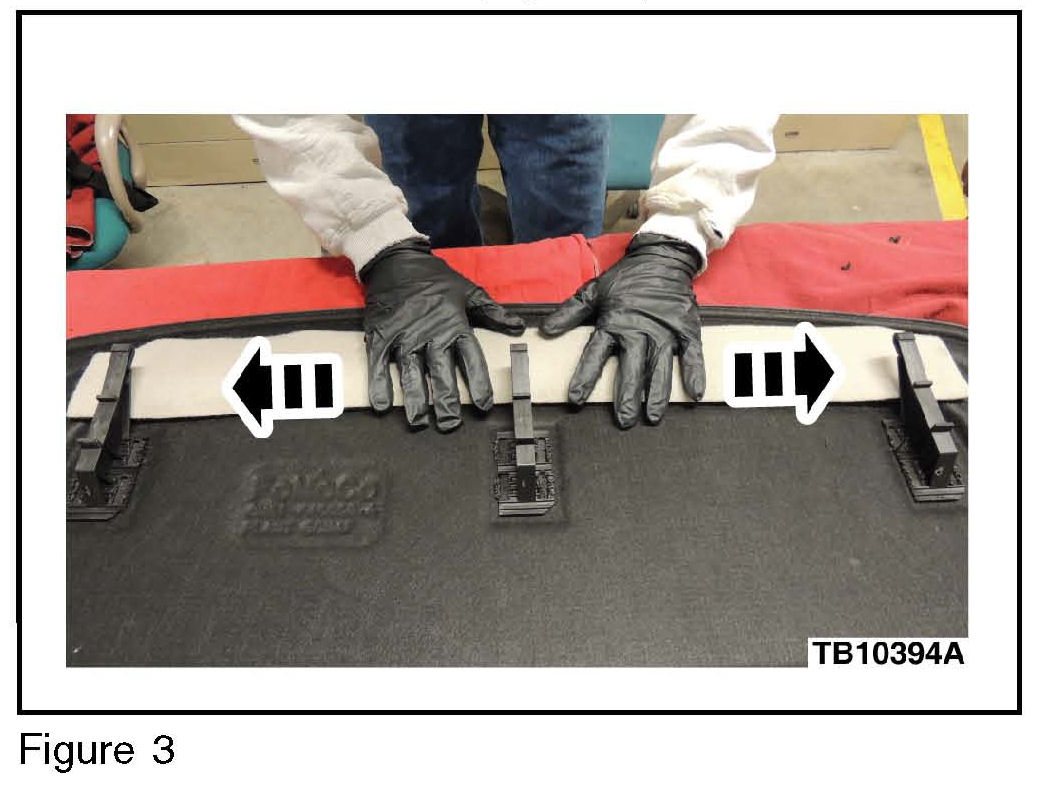

5. Carefully line up cloth panel and apply across extractor vents. Lightly press around and between extractor vents to ensure adhesive bonds to the cloth. (Figure 3)
a. Do not allow adhesive to bleed onto visible cloth area between the extractors.
6. Install parcel shelf. Refer to WSM, Section 501-05.
Parts Block
WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.
OPERATION DESCRIPTION TIME
130320A 2012-2013 Focus: Replace 0.4 Hr.
Vent Foam Includes Time
To Remove And Install
Parcel Shelf (Do Not Use
With Any Other Labor
Operations)
DEALER CODING
CONDITION
BASIC PART NO. CODE
5446668 34
