Sound Proofing / Insulation: Locations

Noise, Vibration and Harshness

Sound Deadeners and Insulators

NOTICE:
- Mastic is made of a combustible material and should be removed prior to carrying out welding procedures to the area. Heat zones from welding near mastic may cause the mastic material to burn.
- Corrosion protection must be restored to the area after the mastic material is applied. Corrosion protection products may be wax based and loss of adhesion may occur if applied prior to mastic installation.

NOTE: The following illustration serves as a reference to indicate mastic patch (butyl) locations. Additional insulators and sound deadeners are used beyond those indicated in the illustration.

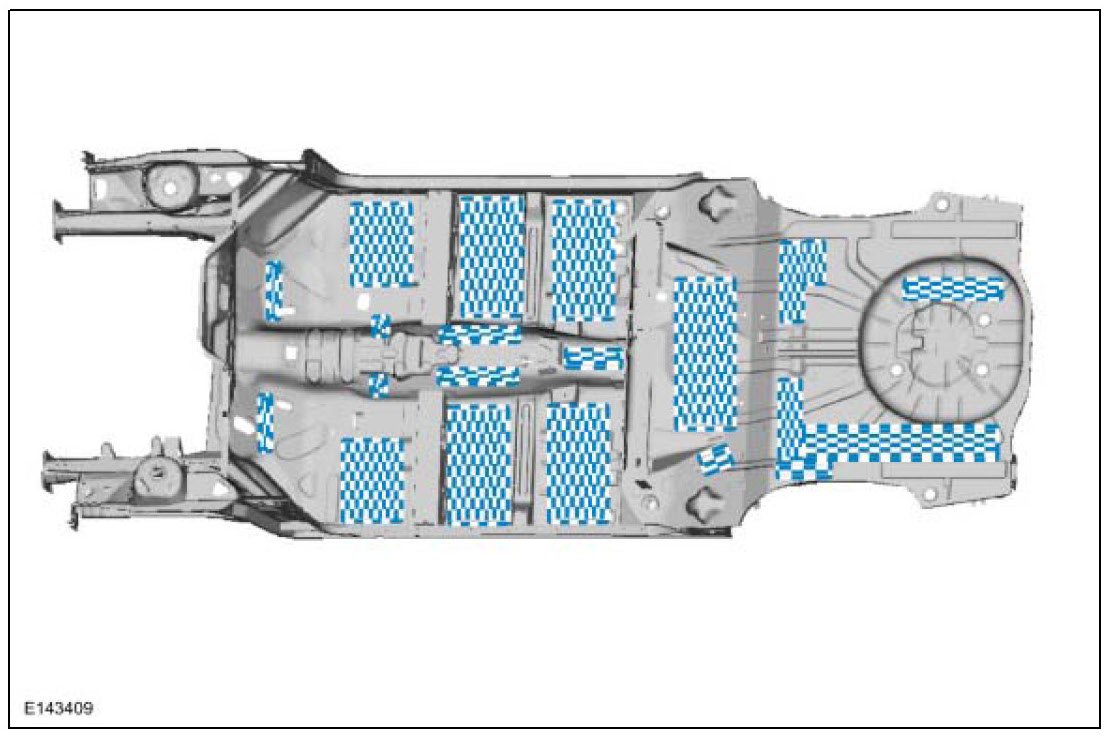

Floor Pan

NOTE: 4-Door Sedan shown, 5-Door Hatchback similar.

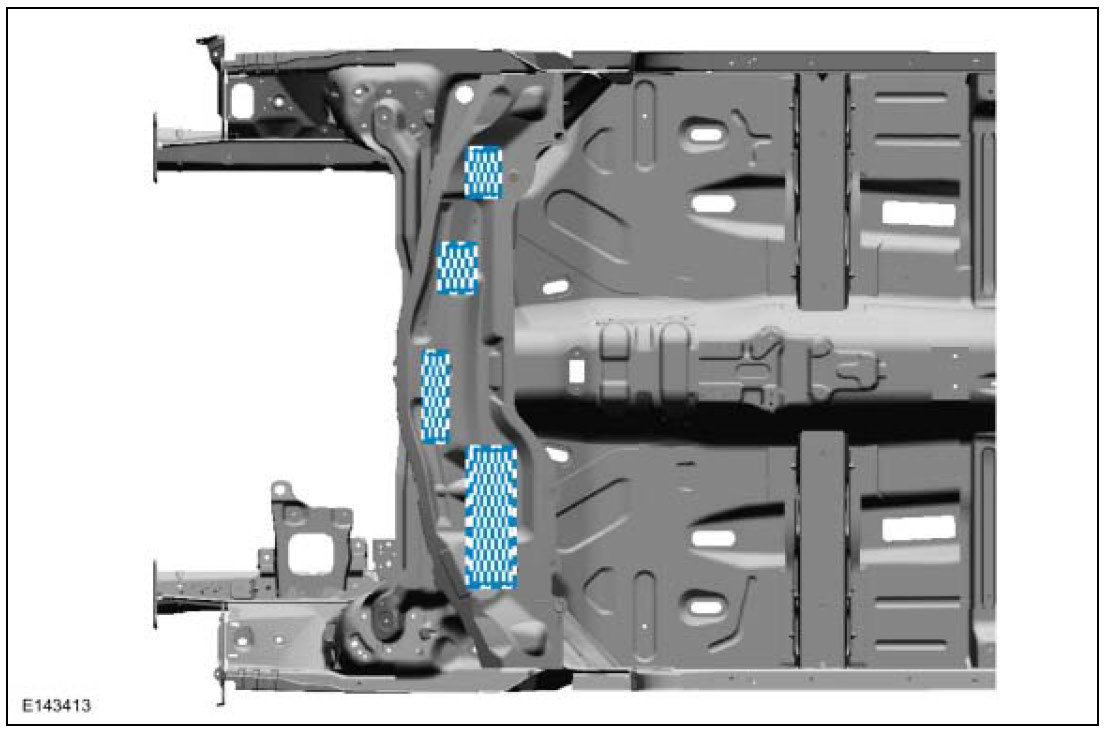

Cowl Panel

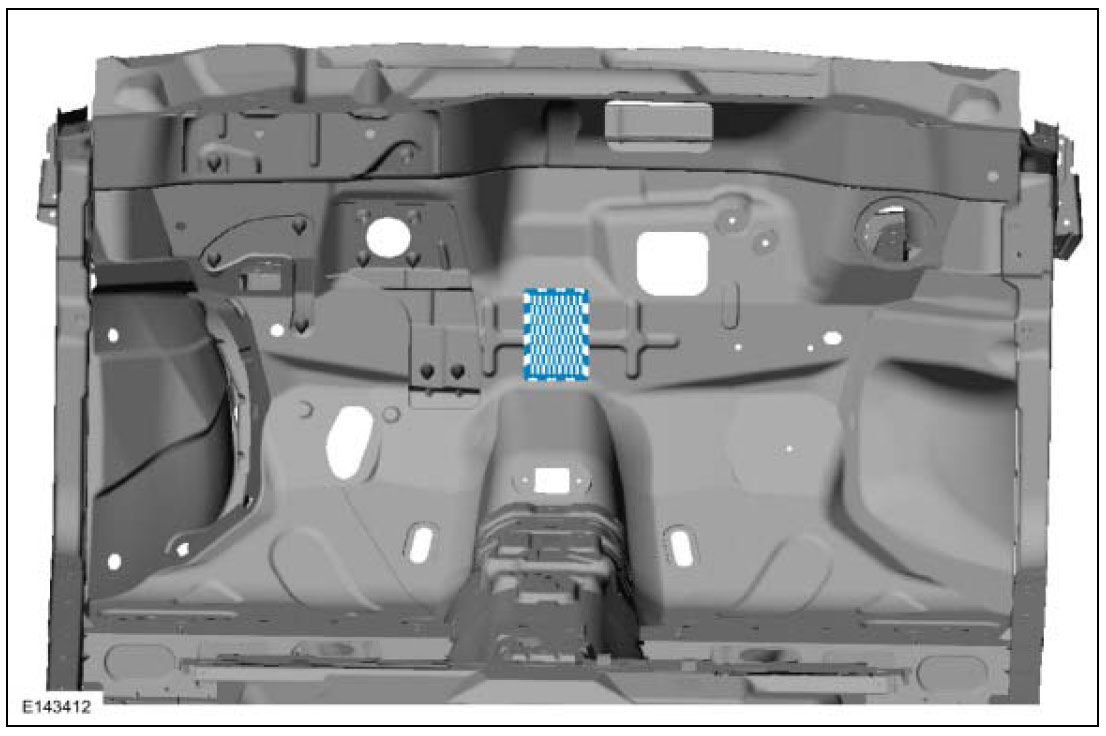

Dash Panel

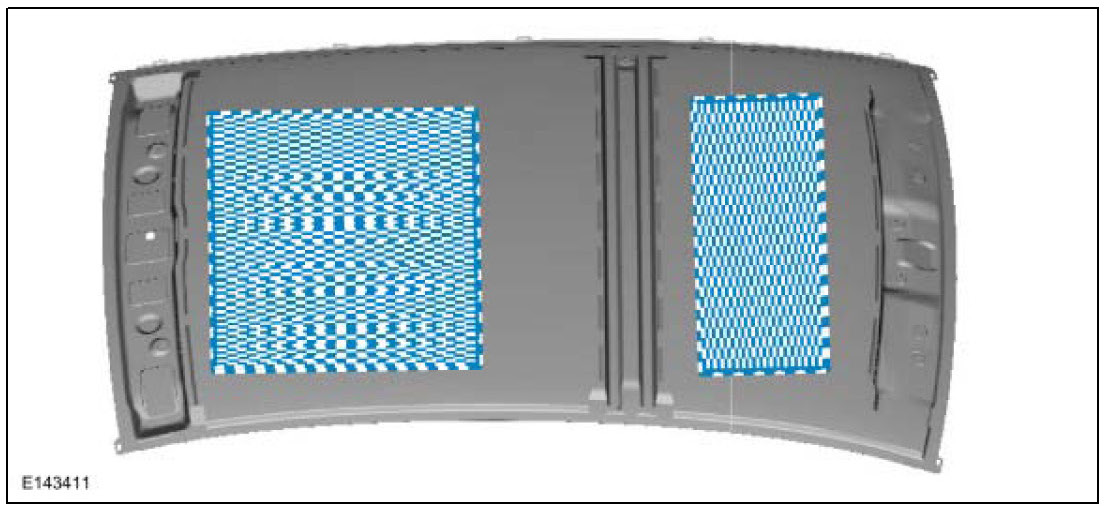

Roof Panel - 4-Door Sedan

NOTE: Roof panel without sunroof shown. Roof panels with sunroof do not use the forward Noise, Vibration, or Harshness (NVH) pad.

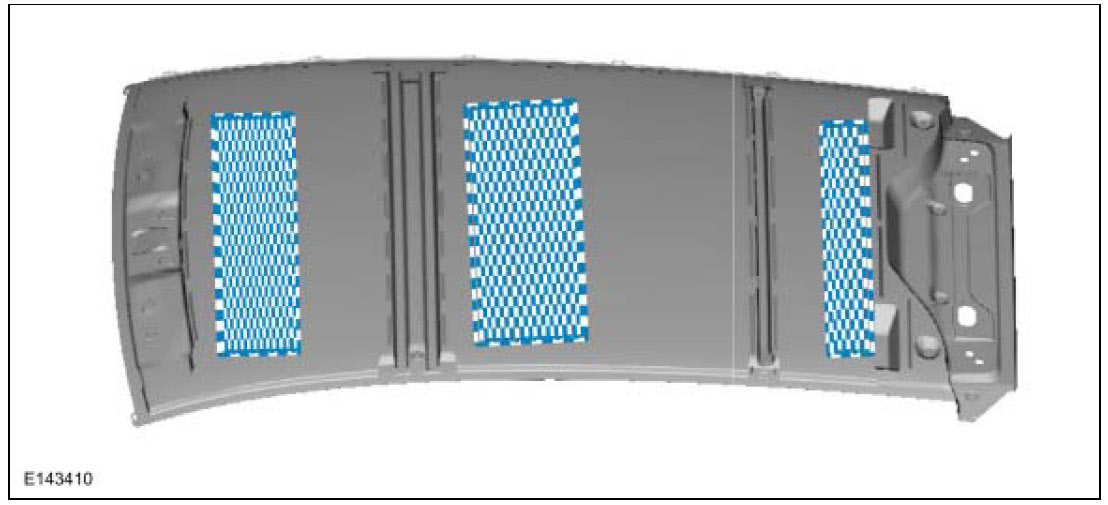

Roof Panel - 5-Door Hatchback

NOTE: Roof panel without sunroof shown. Roof panels with sunroof do not use the forward Noise, Vibration, or Harshness (NVH) pad.
