Rear Bumper Cover - 2

Rear Bumper Cover

DISASSEMBLY

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions. Health and Safety Precautions

2. Remove the rear bumper cover.
Refer to: Rear Bumper Cover - 5-Door. Rear Bumper - 5-Door

3. If equipped, remove the parking aid sensors and wiring.
Refer to: Rear Parking Aid Sensor.

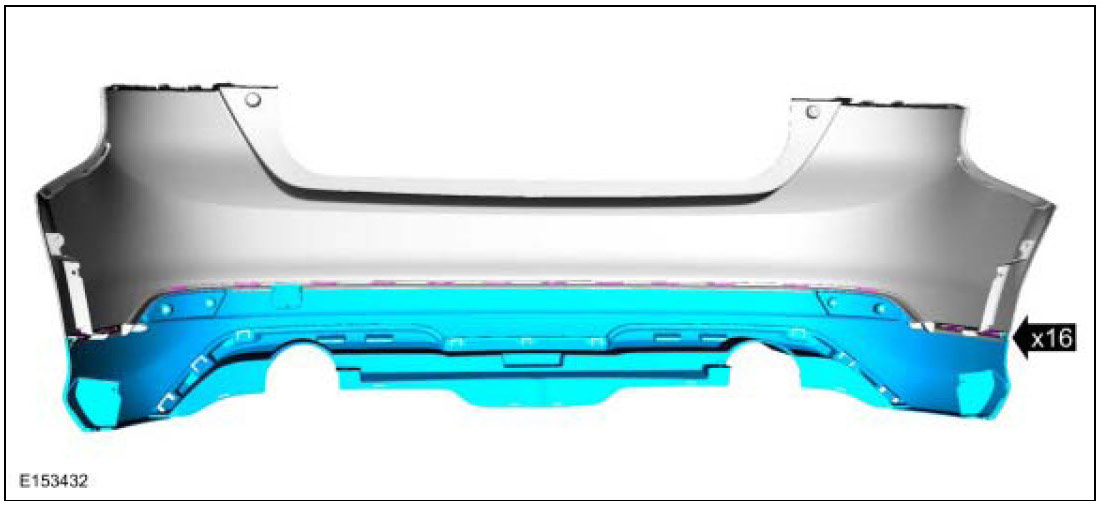

4.

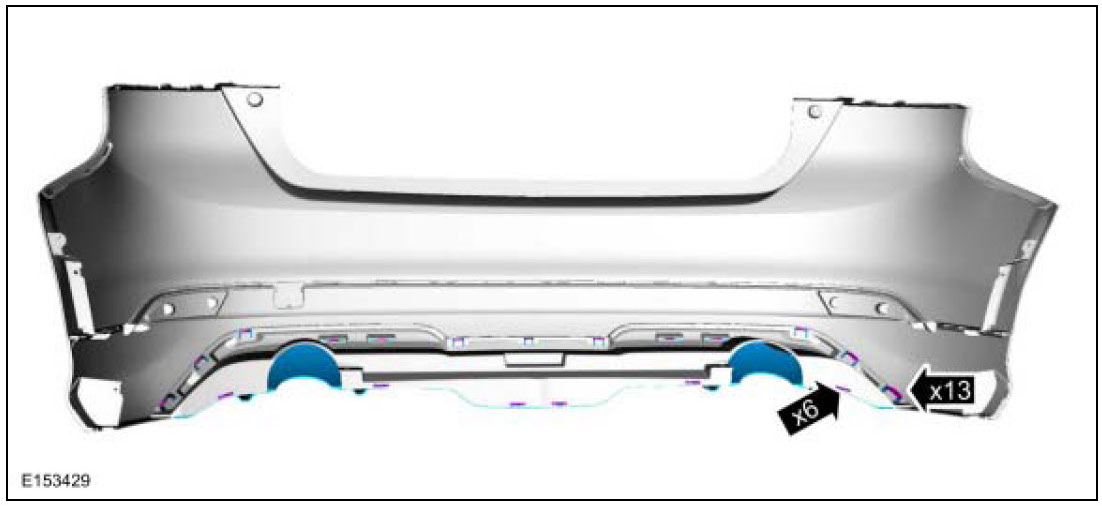

5.







ASSEMBLY

1. To assemble, reverse the disassembly procedure.
