Rear Bumper Reinforcement: Service and Repair

Rear Bumper - 5-Door

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure, Failure to follow this instruction may result in serious personal injury.

2. Remove the rear bumper cover.
Refer to: Rear Bumper Cover - 5-Door (Removal and Installation).

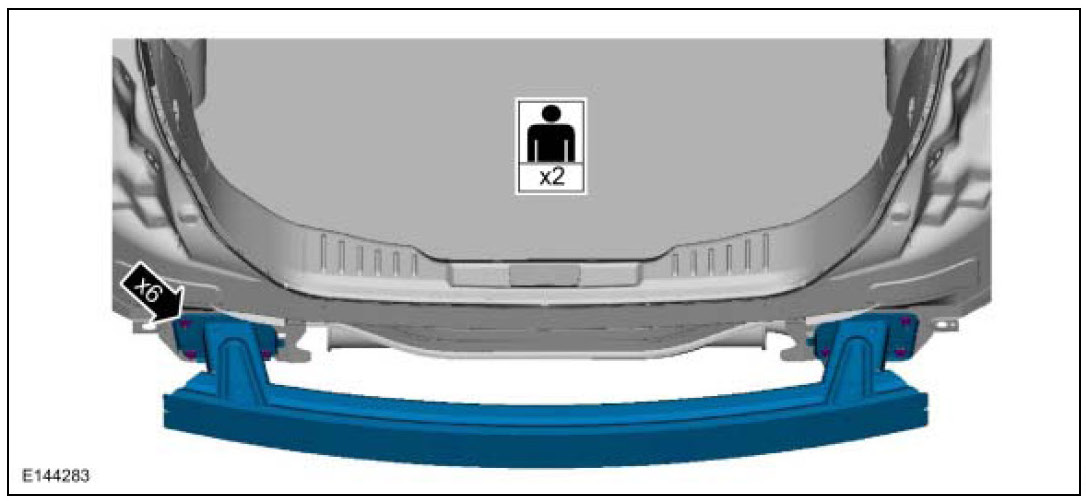

3. Torque: 25 Nm







Installation

1. To install, reverse the removal procedure.
