Front Bumper Cover / Fascia: Service and Repair

Front Bumper Cover

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure, Failure to follow this instruction may result in serious personal injury.

2. With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

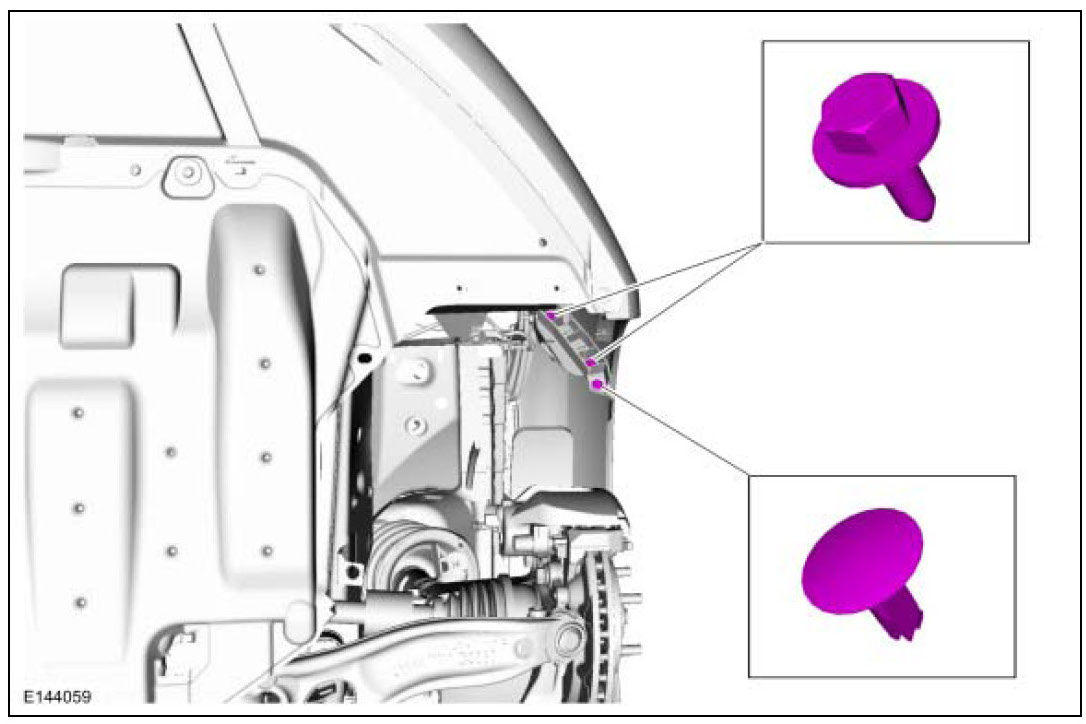

3. On both sides.

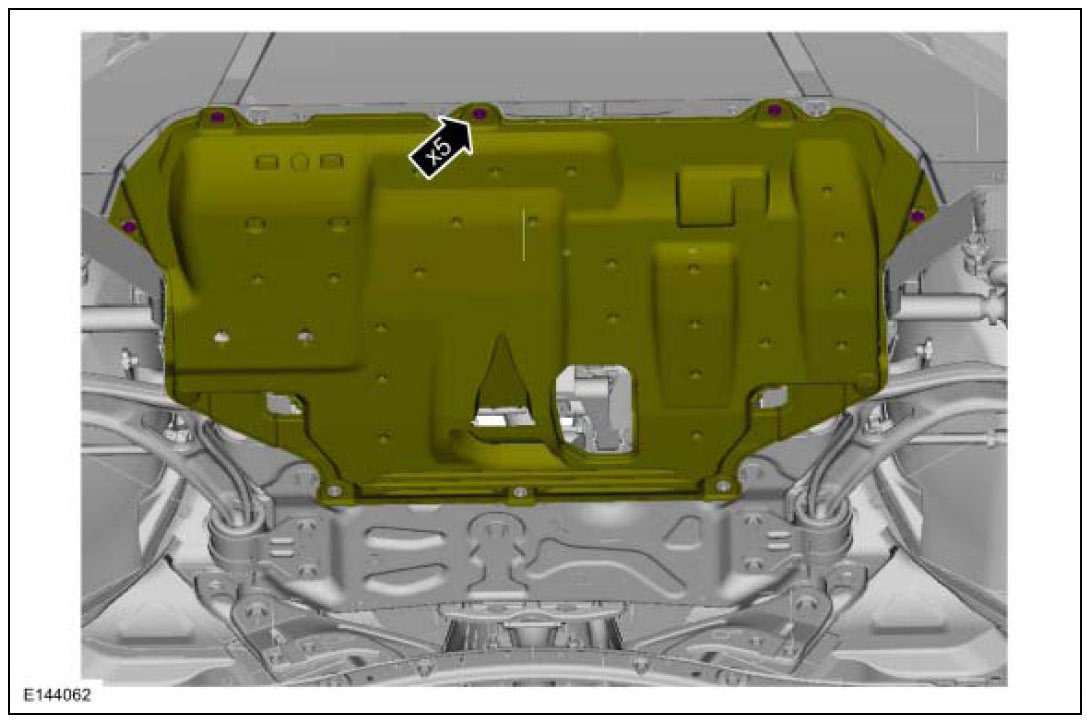

Torque: 3 Nm

6. Remove the headlamp assemblies.
Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).

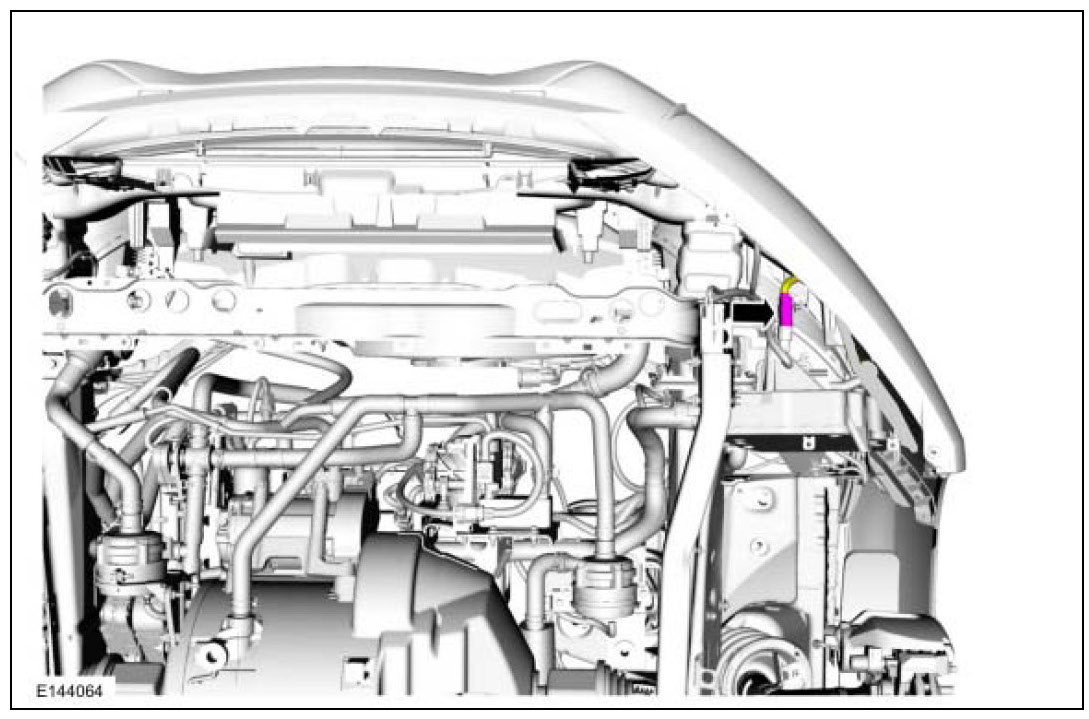

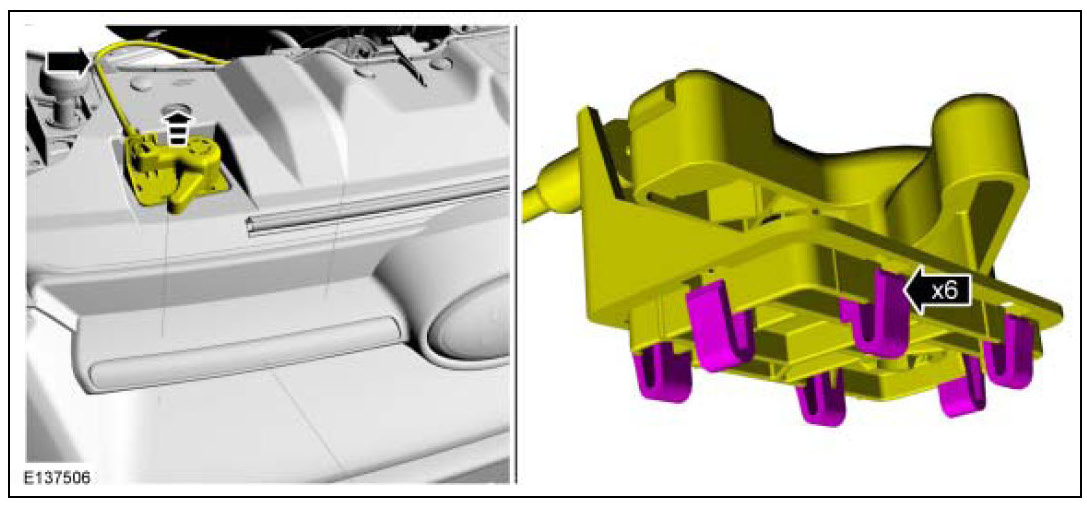

7.

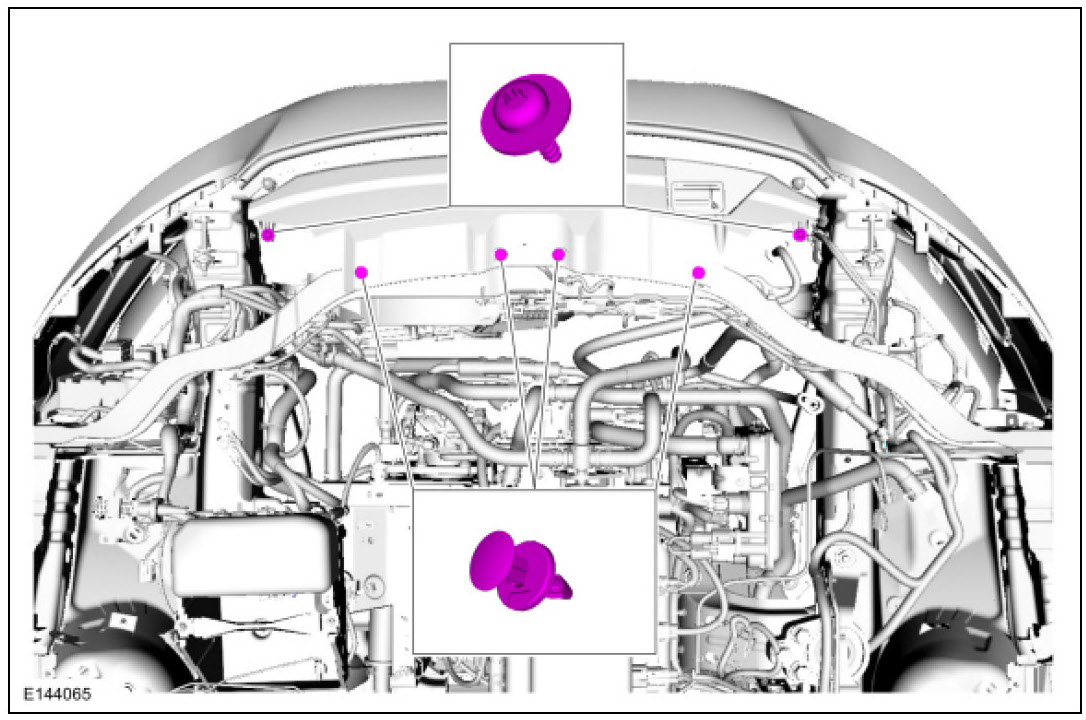

8. Torque: 4 Nm

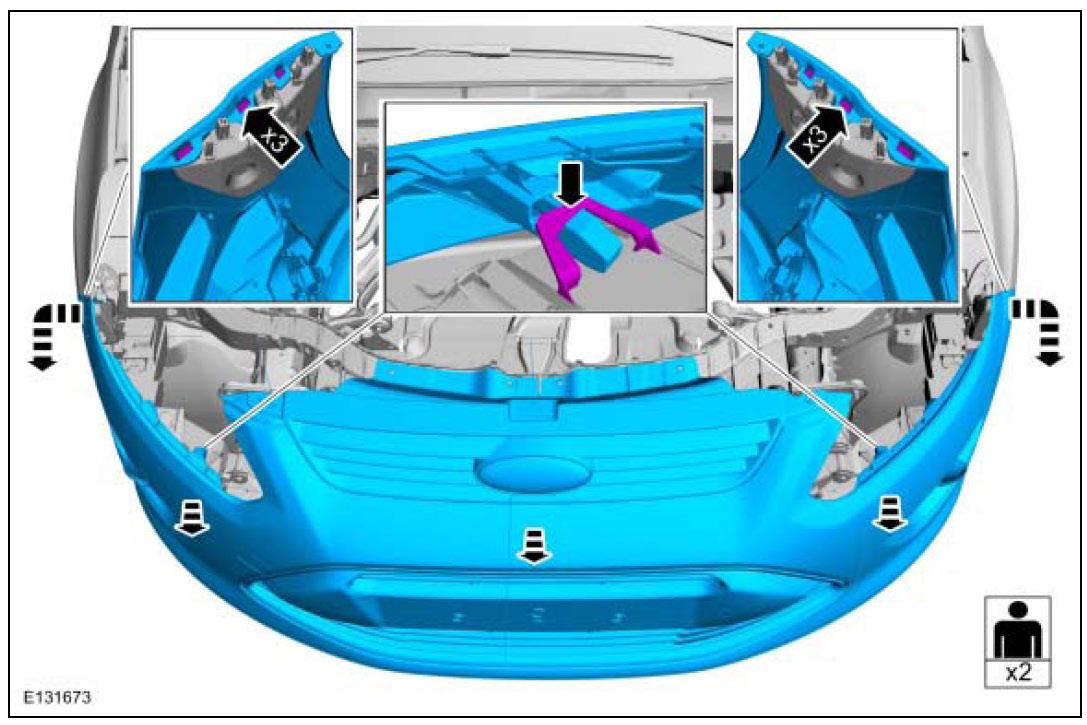

9. Separate the lower radiator air delfectors from the front bumper cover.

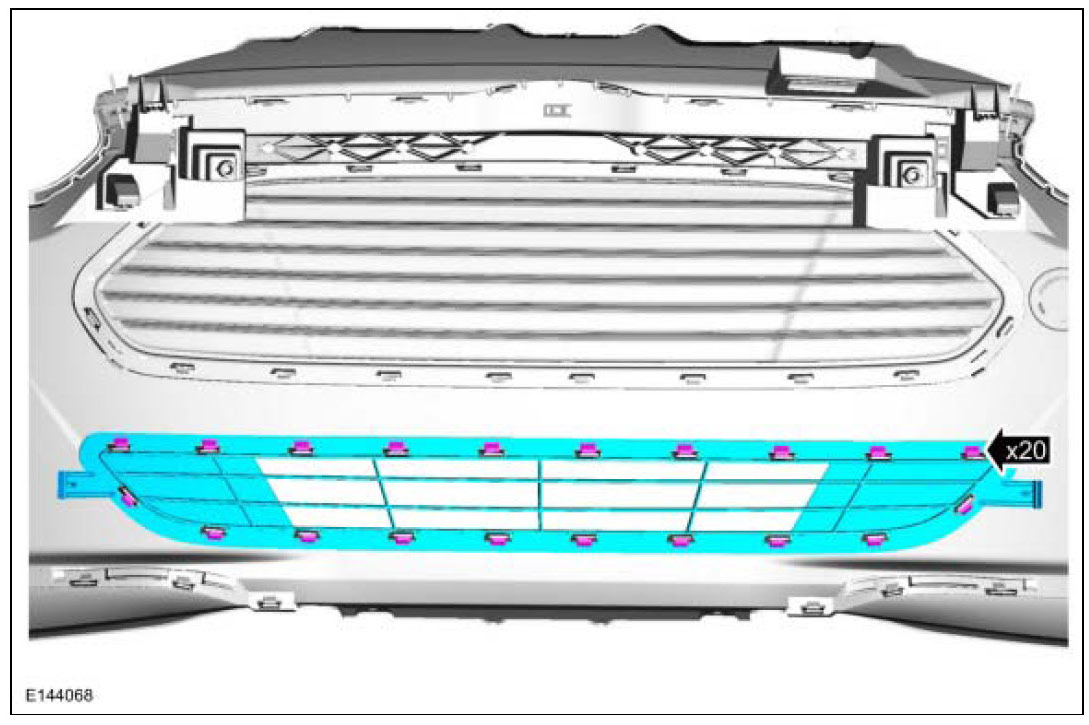

10. If required.

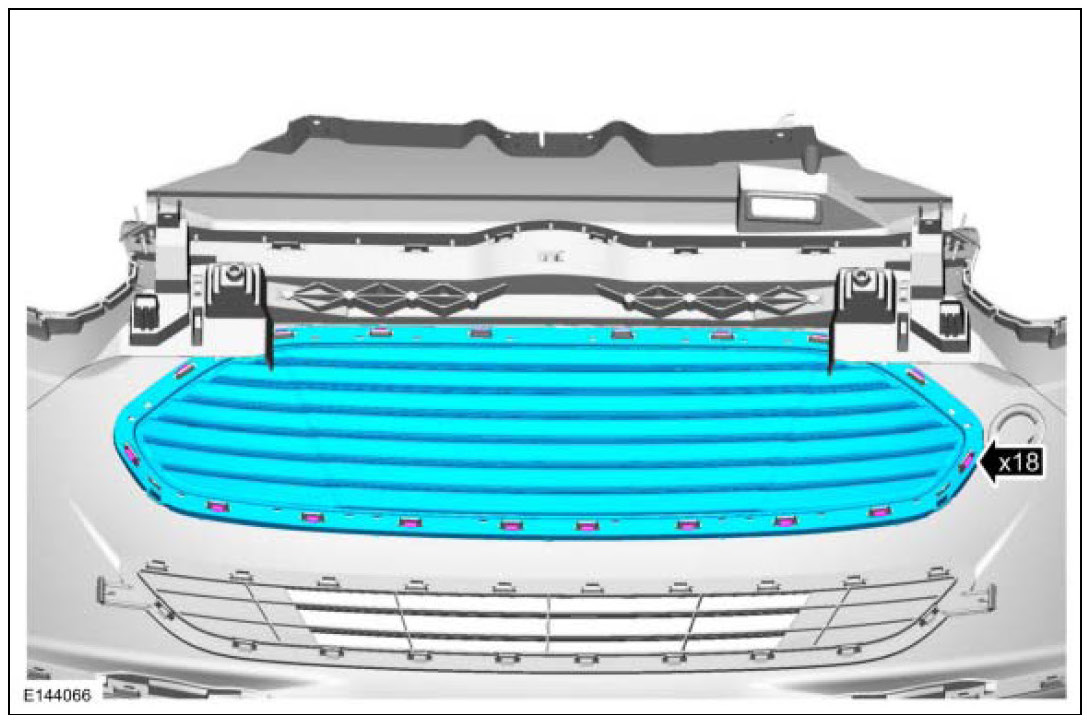

11. If required.

Installation

1. To install, reverse the removal procedure.
